Operation
Operating Manual PSSu K F FCU
1002391-EN-04
35

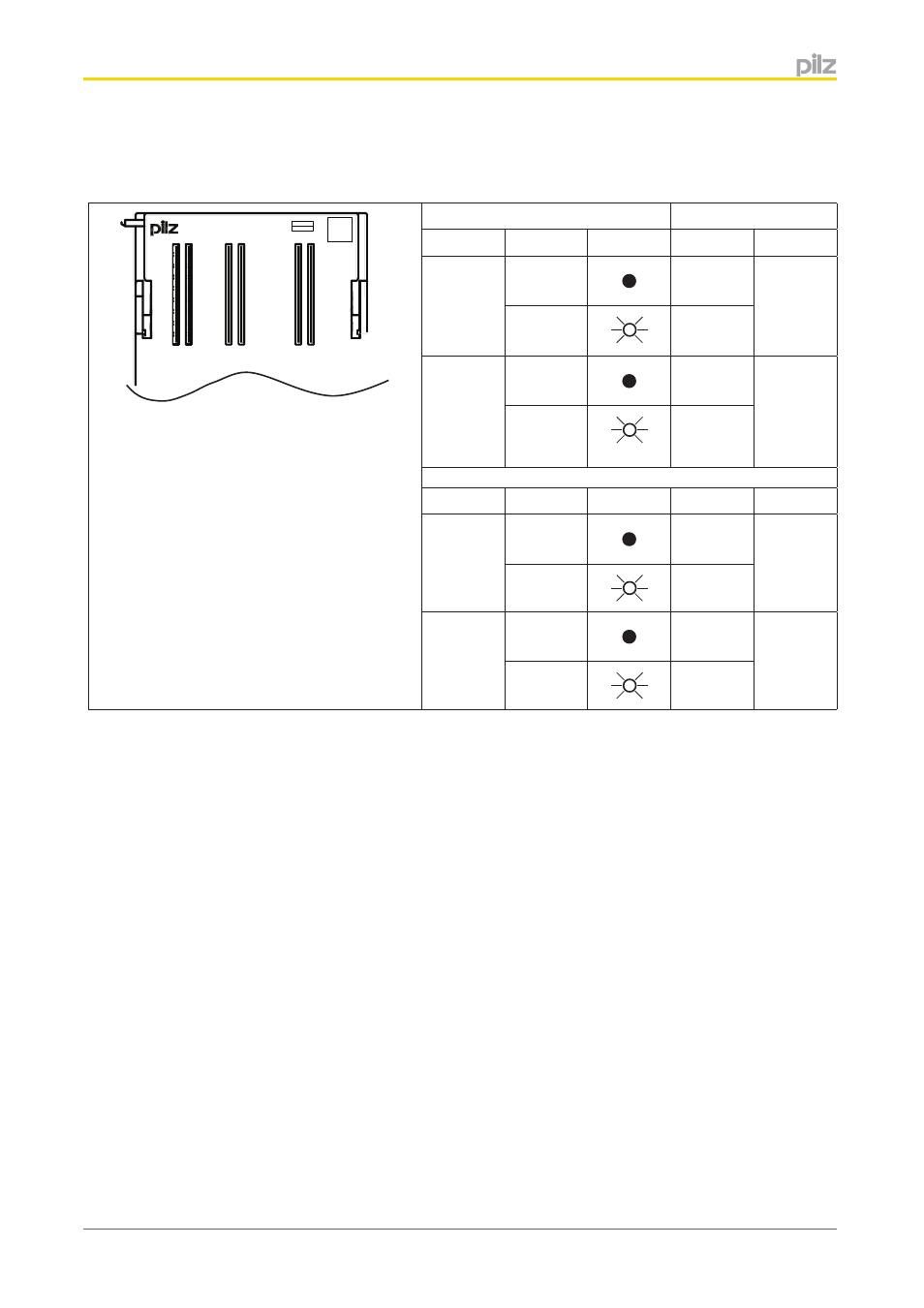

Display elements for input and output status
Each input and output is assigned an LED to display the state
I 00
I 01
I 02
I 03
I 04
I 05 O 00
O 01 O 02
O 03 I 06
I 07
I 08
I 09
I 10
I 11
LED Meaning
Name Colour State Signal Output
O00
O01
- - - 0 signal Dual-pole
O00+
O 01+
Green 1 signal
O02
O03
- - - 0 signal sin-
gle-pole
O 02
O03
Green 1 signal
Name Colour State Signal Input
I00
I07
- - - 0 signal With fast
shutdown
Green 1 signal
I08
I11
- - - 0 signal Without
fast shut-
down
Green 1 signal
