Wiring
Operating Manual PSSu K F FCU
1002391-EN-04
28
Connect/disconnect the cables
We recommend you use a screw driver with a 0.4 x 2.5 mm (DIN 5264) blade!
Strip the cable:
} Strip the cable [1] and apply a ferrule if necessary (DIN 46228/Part 1 or DIN 46228/Part
4).
Connect cable:
} Using the screwdriver, press the actuator button on the spring-loaded terminal down as
far as it will go [2], keep it held down and insert the stripped cable into the plug connec-
tion as far as it will go [2].
} Check that the cable is firmly seated [3].
Disconnect cable:
} Using the screwdriver, press the actuator button down as far as it will go [4], keep it
held down and pull the cable out of the plug connection [4].

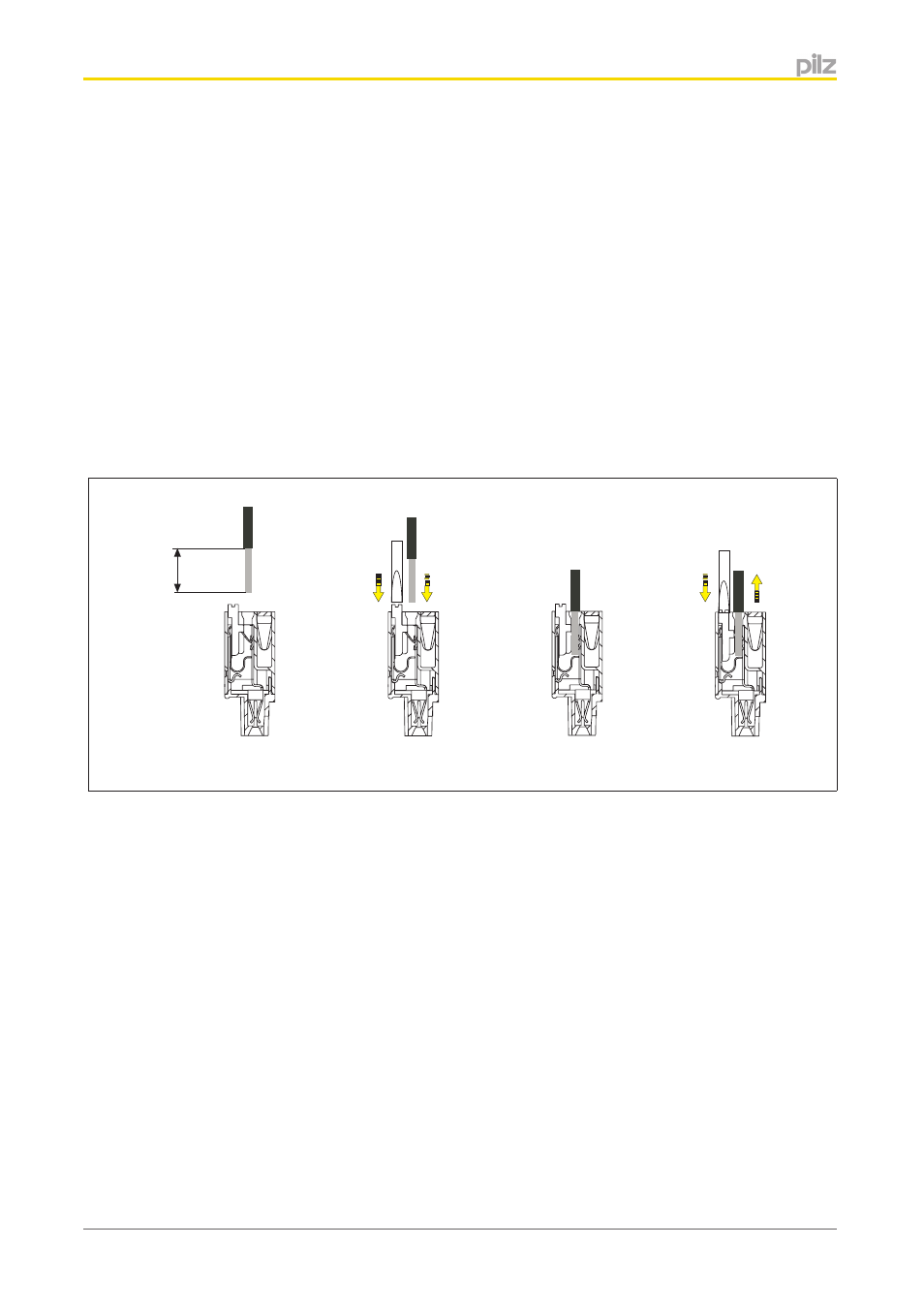

[1] [2] [3] [4]
8 mm
(0.315")
6.3
