Operation
Operating Manual PSSu K F FCU
1002391-EN-04
34
Display elements
Legend:
LED on
LED off

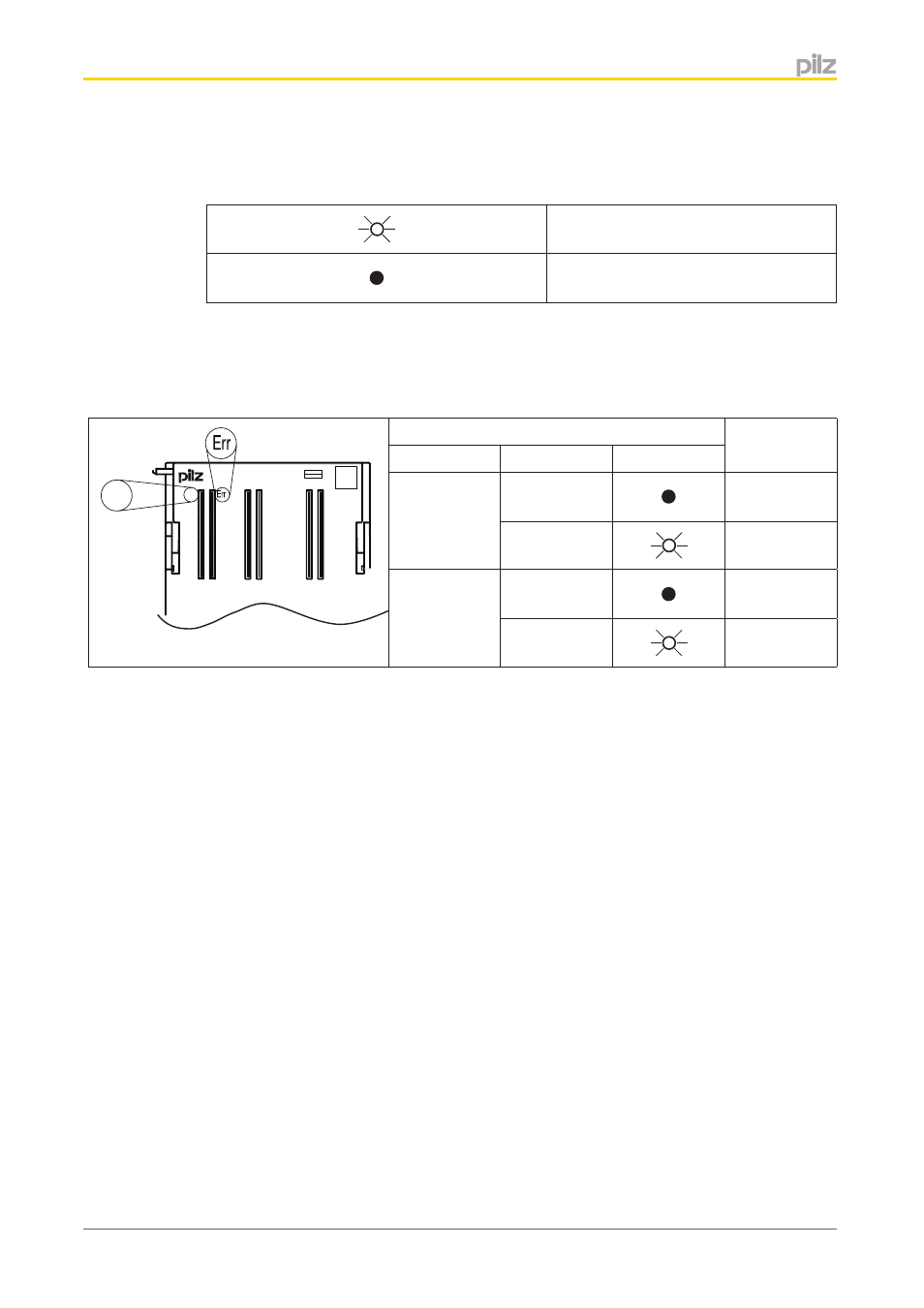

Display elements for module diagnostics
The module has an LED for displaying operating states ("On" LED) and module errors
("Err" LED).
I 00
I 01
I 02
I 03
I 04
I 05
On
O 00
O 01
On
On
O 02
O 03 I 06
I 07
I 08
I 09
I 10
I 11
LED Meaning
Name Colour State
On - - - Module is not
in operation
Green Module in op-
eration
Err - - - No error
Red Module is
faulty
7.2
7.2.1
