Installation

Operating Manual PSSu K F FCU
1002391-EN-04

26

Install labelling bracket

Installation procedure:

}

We recommend that the labelling strips are attached to the labelling bracket prior to in-

stallation.

}

Slot the two pins on the labelling bracket into the receiving lugs on the module [1].

}

Check that the labelling bracket is firmly seated.

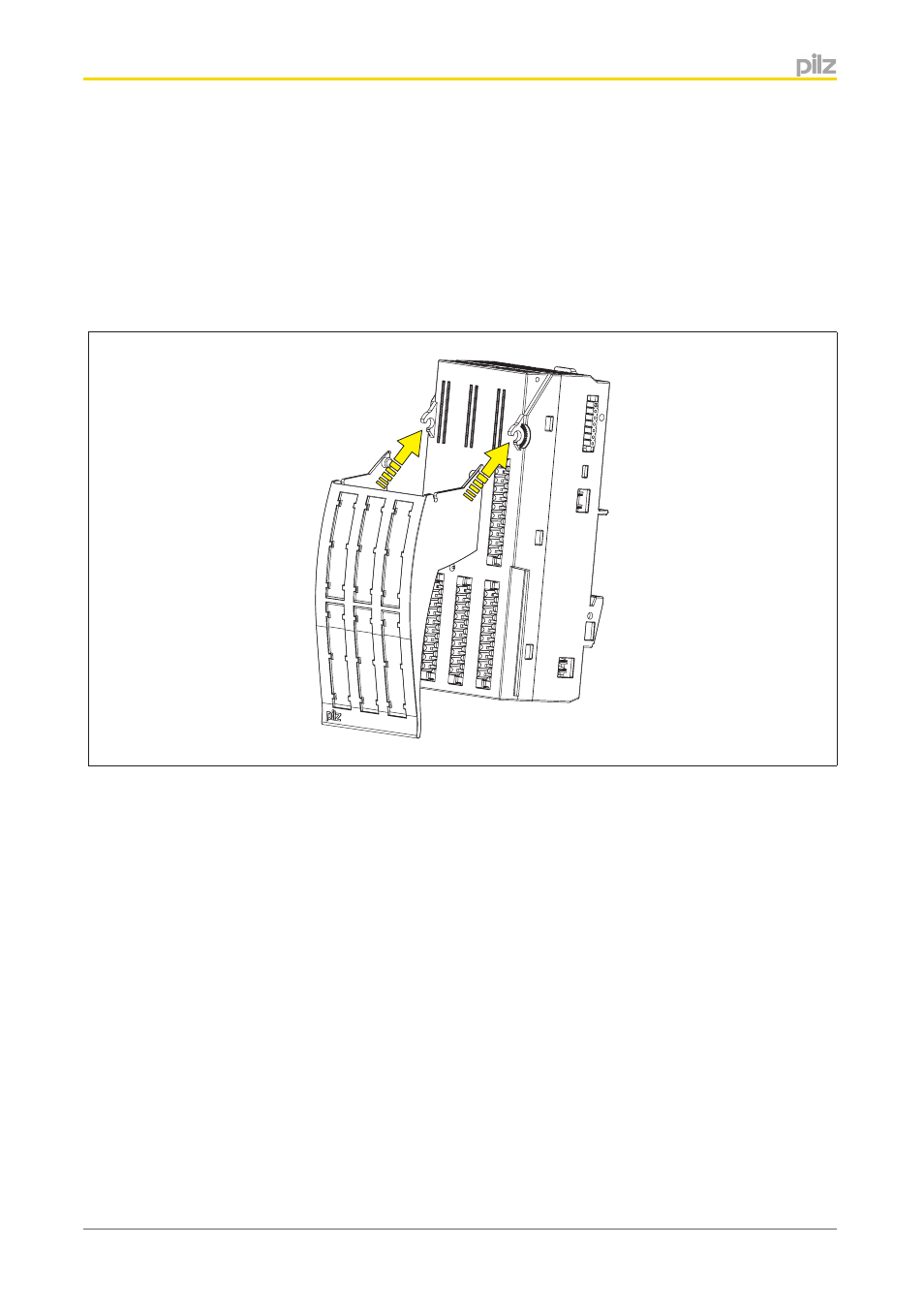

Schematic representation:

[1]

[1]
