Fuel pump upgrade – Vortech 2005-2010 Ford 4.6L 3v Mustang GT User Manual
Page 76

P/N: 4FU020-010 v6.2, 06-08-10
©2010 Vortech Engineering, LLC
All Rights Reserved, Intl. Corp. Secured
54
A.

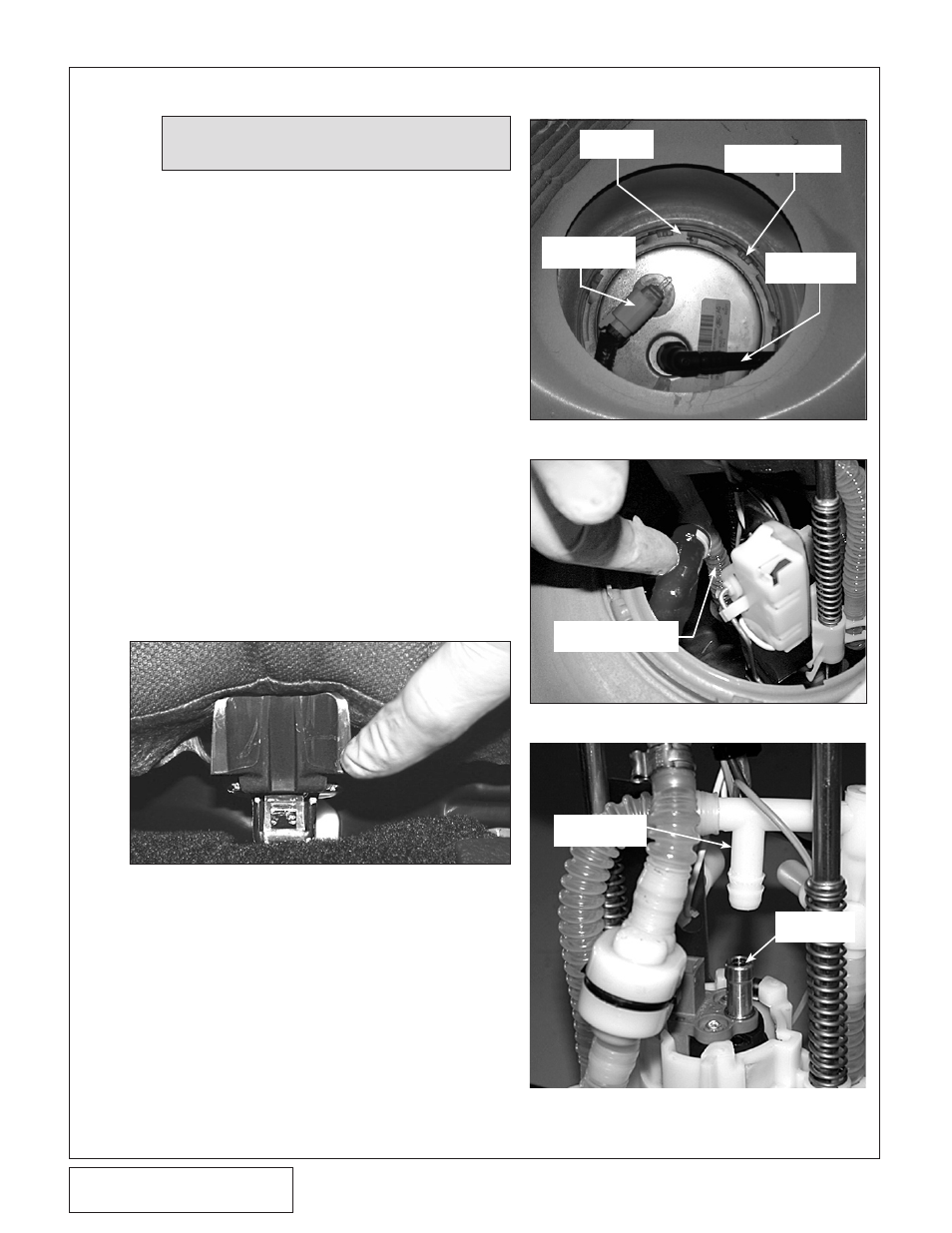

Remove the rear seat by depressing the two
release buttons at the front edge of the seat.
(See Fig. 14-a.)
B.
Remove the round plastic inspection cover on the
driver’s side. (See Fig.14-b.)
C.
Unplug the sending unit harness and disconnect
the fuel line connection.
D.
Using a small screwdriver or chisel and hammer,
tap the retaining ring in a counter clockwise direc-
tion. Remove the retaining ring and set aside.
(See Fig. 14-b.)
E.
Slowly pull the fuel pump assembly up. Locate the
crossover fuel line connection on the fuel pump
assembly and disconnect. (See Fig. 14-c.)
F.
Remove the pump assembly from the tank being
careful not to damage or lose the rubber O-ring.
G.
Carefully cut the step-less clamps securing the
short corrugated fuel line between the fuel pump
outlet and distribution rail. Remove the fuel line
and discard. (See Fig. 14-d.)
Fig. 14-a
Fig. 14-b
Fig. 14-c
14. FUEL PUMP UPGRADE
RETAINING
RING
CROSSOVER
LINE CONNECTION
Fig. 14-d
NOTE: This section is best performed with
the fuel level BELOW half a tank.
RECEIVING DOTS
ON EACH EAR
FUEL LINE
CONNECTION
HARNESS
CONNECTION
DISTRIBUTION
RAIL
PUMP
DISCHARGE
