4. POWER STEERING RELOCATION (2010 Models Skip to Step 4.1)

Locate the power steering assembly 4FU110-010.

Attach the power steering (P/S) relocation bracket

4FU010-010

with the hardware provided to the P/S reservoir

removed in an earlier section. (See Fig.4-a.)

Attach the 3/4" P/S hose along with the 3/8" P/S

hose to the outlets of the reservoir with the

clamps provided. (See Fig. 4-b.)

Attach the 3/4" and the 3/8" hose barb unions to

the factory hoses using the factory clamps.

Attach the reservoir to the passenger’s side radia-

tor core support using one of the factory ground

strap retaining bolts. (See Fig. 4-c.)

Attach the hoses from the reservoir to the factory

P/S hoses and secure with the supplied clamps.

Trim for best fit. Secure the hose to the fan

shroud away from heat and moving objects.

It will be necessary to trim the corner of the radia-

tor core support cover to clear the relocated P/S

reservoir. (See Fig. 4-d)

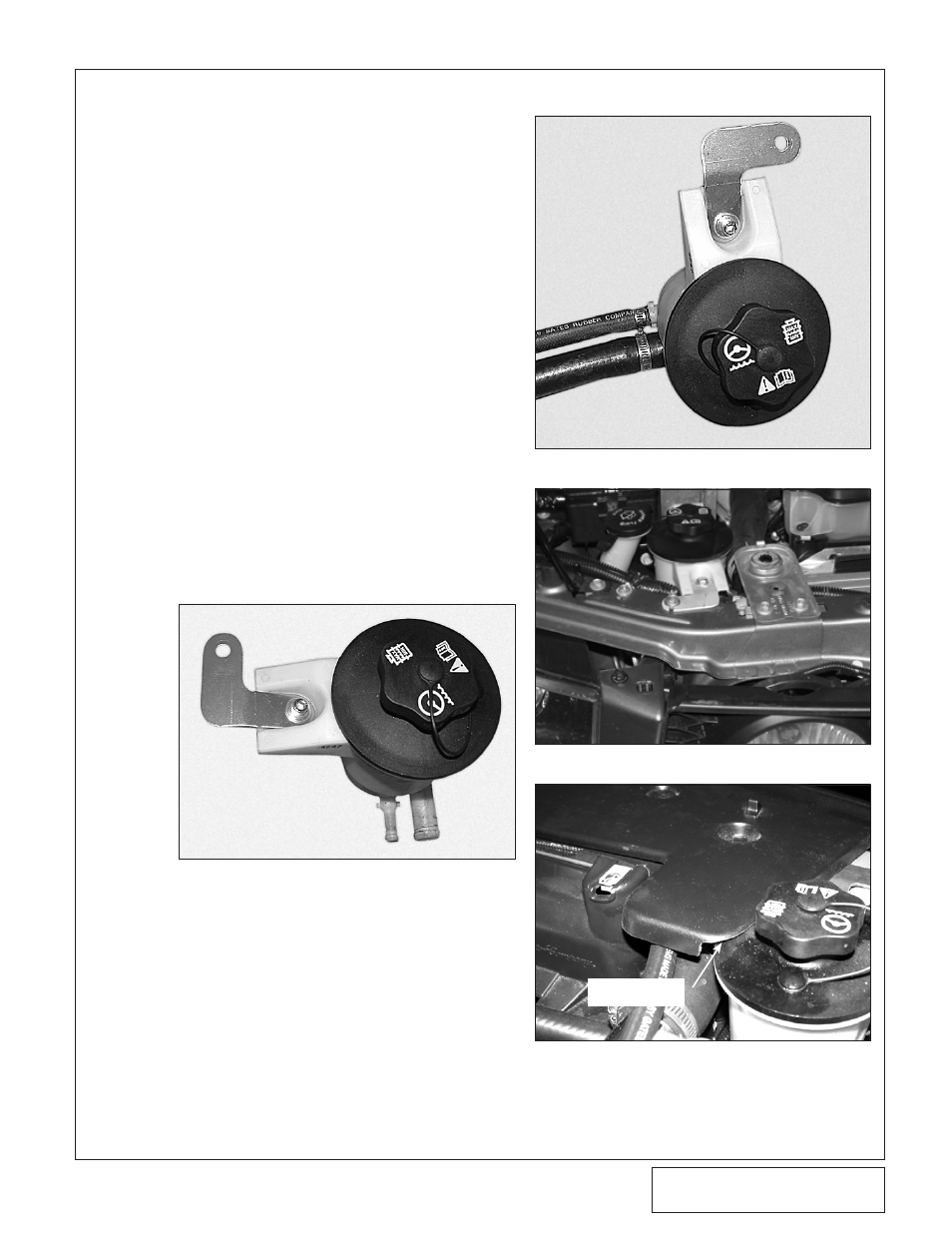

Fig. 4-a

Fig. 4-b

Fig. 4-c

Fig. 4-d

TRIMMED

AREA
