8. CHARGE AIR COOLER INSTALLATION

(CHARGE COOLED KITS ONLY)

, cont’d

GROUND

STRAP

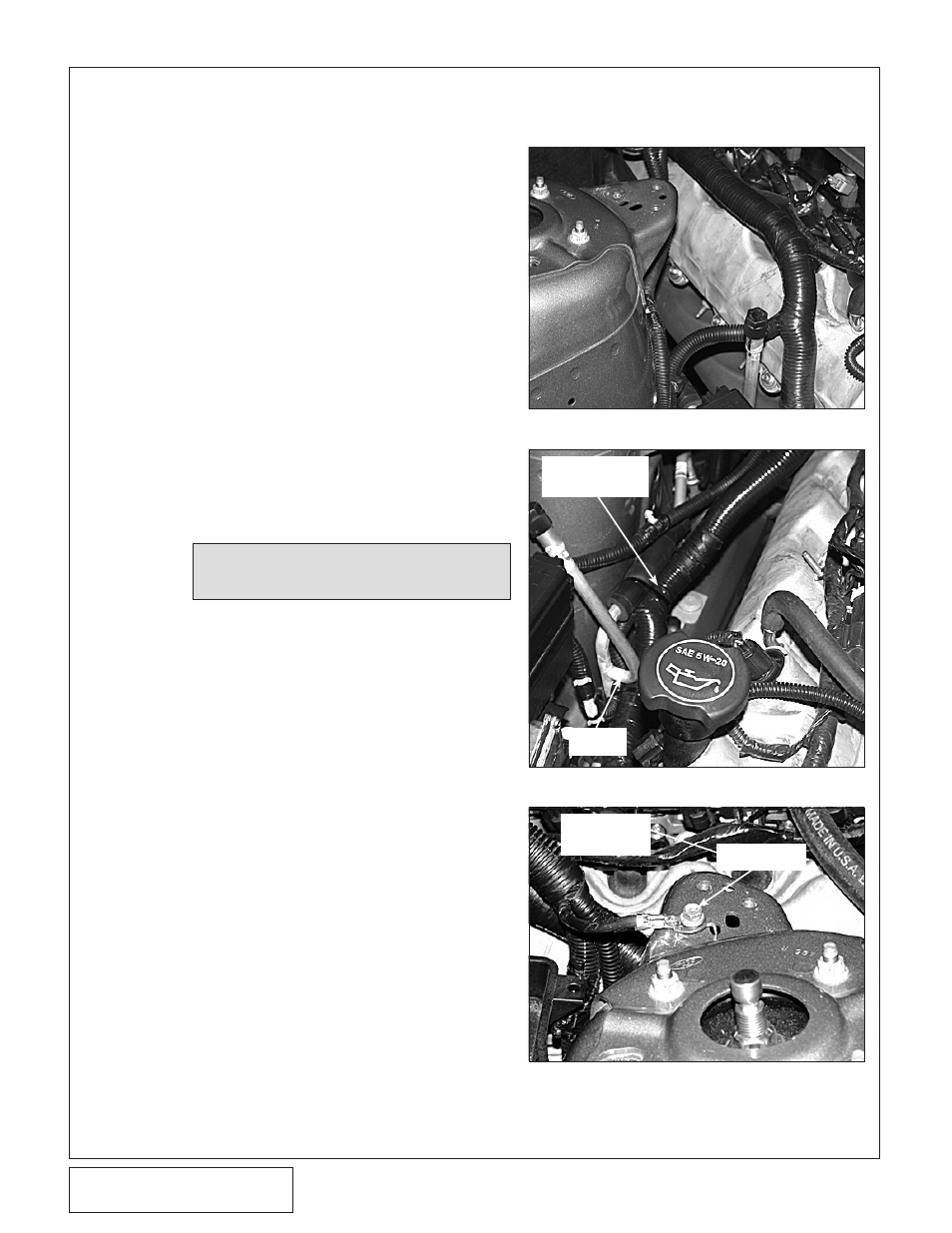

21. On the passenger’s side of the engine,

attached to the valve cover, is a large wire

harness. The harness will have to be relocat-

ed to gain clearance for the surge tank and

the radiator overflow reservoir. (See Figs.

8B-n, 8B-m.)

22. Detach the wiring harness from the retaining

clips and move the harness to the shock

tower. Secure the harness to the A/C line with

wire ties. (See Fig.

8B-n.)

23. Remove the small clip retaining the small wir-

ing harness to the shock tower. (See Fig.

8B-n.)

24. Attach the small harness to the large harness

with wire ties.

25. To gain clearance for the coolant reservoir,

the A/C line will need to be bent slightly

towards the passenger’s side fender. (See

Fig. 8B-n.)

NOTE: A/C line is under high pres-

sure. Use caution not to kink

or damage the line.

(2005-2006 Only)
26. Remove the 10mm headed screw retaining

the ground strap to the bracket on the strut

tower. (See Fig. 8B-o.)

Fig. 8B-m

Fig. 8B-n

Fig. 8B-o

2005-2006

LOCATION

ONLY

WATER COOLER ASSEMBLY INSTALLATION, cont’d

SECURE

HARNESS

WITH WIRE-TIES
