Charge air cooler installation, Cont’d – Vortech 2005-2010 Ford 4.6L 3v Mustang GT User Manual
Page 51

P/N: 4FU020-010 v6.2, 06-08-10
©2010 Vortech Engineering, LLC
All Rights Reserved, Intl. Corp. Secured
29

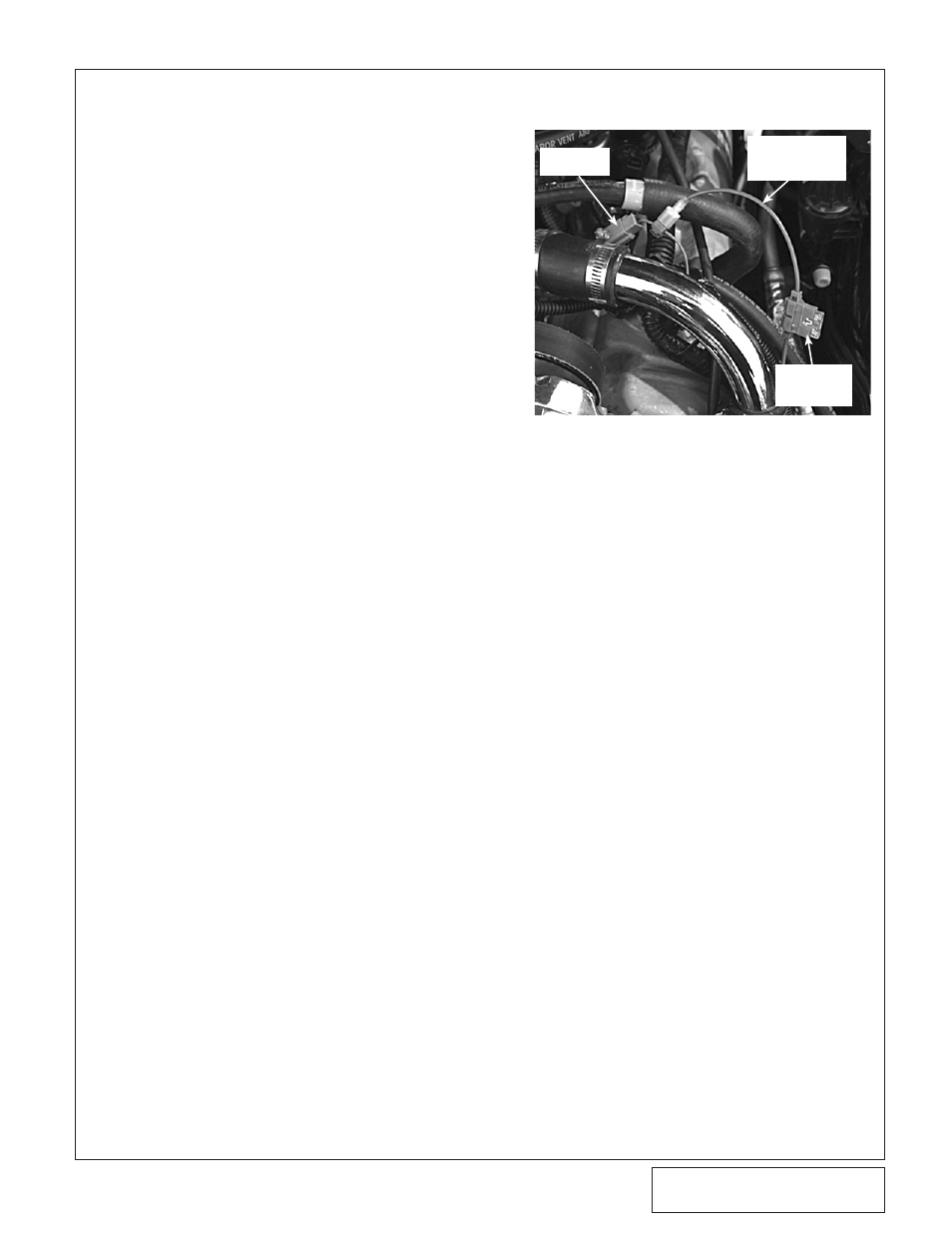

Fig. 8B-i
BALLAST
RESISTOR
POSITIVE WIRE
TO WATER
PUMP
SUPPLIED
FUSE
HOLDER
14. Route the positive wire up towards the driver’s
side valve cover.
15. Locate the ballast resistor plug. Install the sup-
plied T-tap connector, cut the water pump posi-
tive wire (from the water pump) for best fit,
attach the supplied male spayed connector
and attach to the wire T-tap connnector. (See
Fig., 8B-i.)
16. Cut the water pump positive wire and install
the inline fuse holder and fuse. Install the wire
loom provided and secure away from heat and
moving parts. (See Fig. 8B-i.)
8. CHARGE AIR COOLER INSTALLATION
(CHARGE COOLED KITS ONLY)
, cont’d
B.
WATER COOLER ASSEMBLY
INSTALLATION, cont’d
