Vortech 2005-2010 Ford 4.6L 3v Mustang GT User Manual
Page 31

P/N: 4FU020-010 v6.2, 06-08-10
©2010 Vortech Engineering, LLC
All Rights Reserved, Intl. Corp. Secured
9

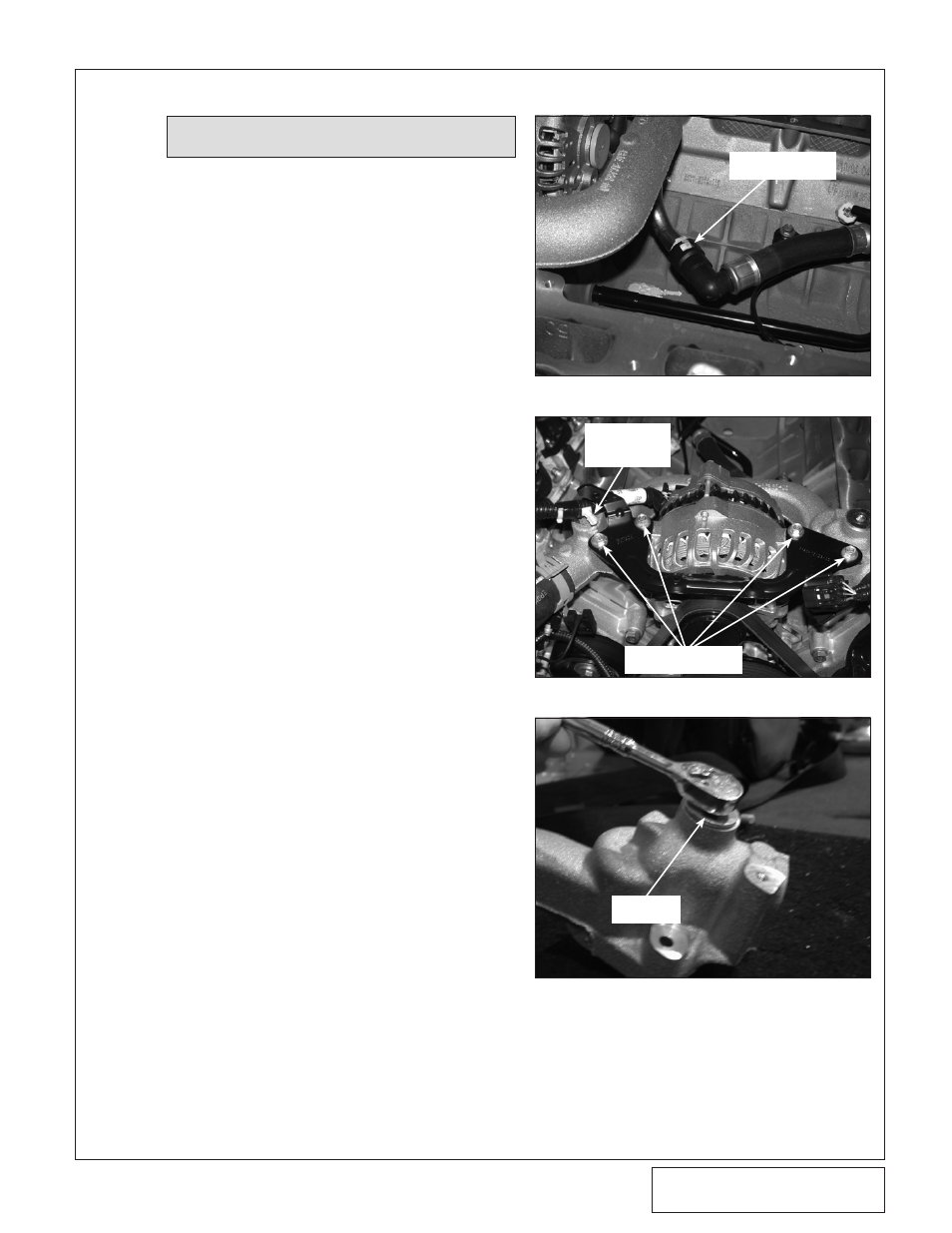

A.
Locate assembly 4FU214-021.
B.
Remove the hose connected to the back, lower
portion of the engine coolant crossover tube.
(See Fig. 5.1-a.)
C.
Remove the nylon clip retaining the wire harness
to the alternator brace and the four 10mm headed
bolts securing the alternator brace. Set the brace
aside to be reinstalled. (See Fig. 5.1-b.)
D.
Remove the factory coolant bleed plug and set
the plug aside. It will not be reused. (See Fig.
5.1-c.)
E.
Remove the remaining two 10mm head bolts
securing the crossover tube to the cylinder heads.
5.1 COOLANT TUBE RELOCATION (2005-2006 Models Years Only)
Fig. 5.1-a
Fig. 5.1-b
Fig. 5.1-c
BLEED
PLUG
NOTE: For 2007-2010 Models skip to
Section 5.2.
HOSE
CONNECTION
NYLON
ALIGNING
CLIP
10mm HEADED
BOLTS
