Vortech 2005-2010 Ford 4.6L 3v Mustang GT User Manual
Page 35

P/N: 4FU020-010 v6.2, 06-08-10
©2010 Vortech Engineering, LLC
All Rights Reserved, Intl. Corp. Secured
13
L.
Cut approximately 2.25" off the short 90° end of
the factory radiator hose and set aside. (See Fig.
5.2-l.)
M.
Cut the remainder of the short 90° bend from the
factory radiator hose, approximately half way
between the 90° bend and the 45° bend, and dis-
card. (See Fig. 5.2-l.)
N.
Using the 2.25" section of radiator hose cut previ-
ously and two #24 hose clamps provided, install
the short end of the 90° stainless tube (4FU014-
060) onto the repositioned thermostat housing.
(See Fig. 5.2-n.)
O.
Slide the protective sleeve provided over the mod-
ified hose. Install the remainder of the factory radi-
ator hose using one factory hose clamp and one
#24 hose clamp. (See Fig. 5.2-o.)
5.2 THERMOSTAT HOUSING/RADIATOR HOSE MODIFICATION
(2007-2010 Model Year Only), cont’d

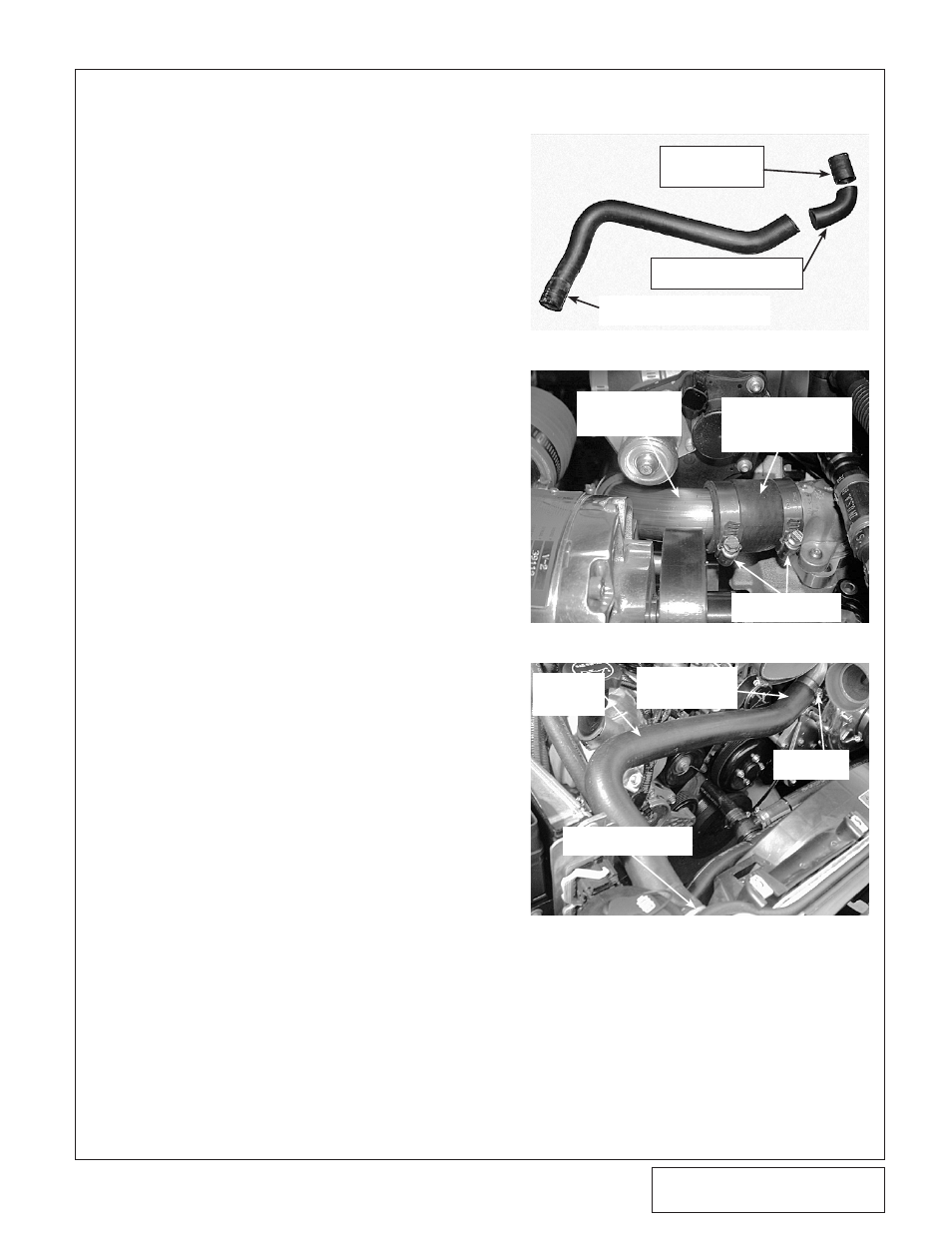

Fig. 5.2-l
END CONNECTED TO
RADIATOR
CUT APPROX.
2.25" AND SET
ASIDE
90° BEND TO BE
DISCARDED
Fig. 5.2-n
90° STAINLESS
TUBE (4FU014-
060)
#24 HOSE
CLAMPS
Fig. 5.2-o
FACTORY
RADIATOR
HOSE
END OF HOSE
PREVIOUSLY
TRIMMED
#24 HOSE
CLAMP
2.25" SECTION OF
HOSE
PREVIOUSLY
TRIMMED
FACTORY HOSE
CLAMP
