53
NOTE: It is strongly recommended that the
wires be soldered. Temporary sol-
derless connectors have been pro-
vided in case you are unable to sol-
der.

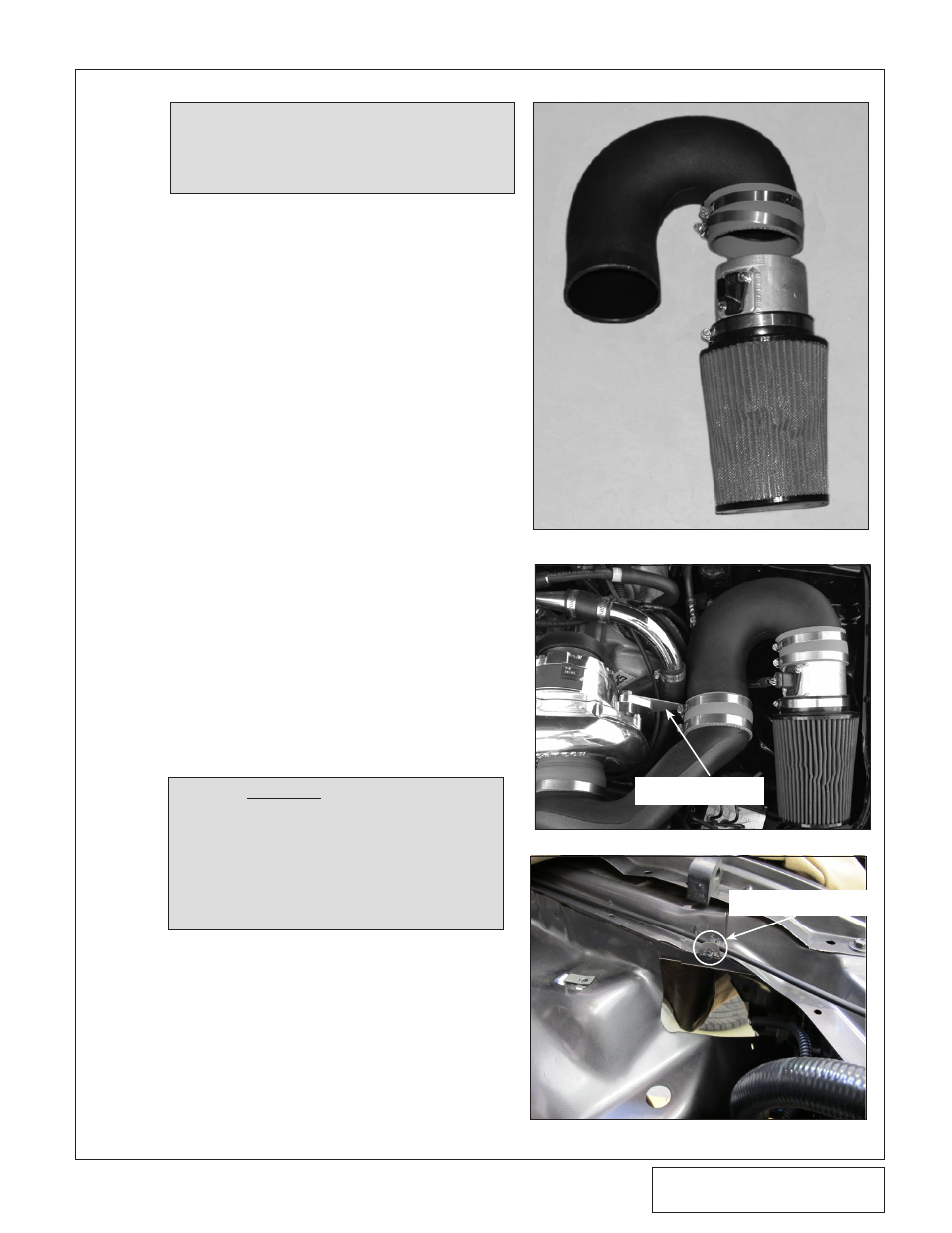

Fig. 13-i
Fig. 13-h
13. AIR INLET ASSEMBLY, cont’d
2.
Remove the split loom from the factory wires
on the MAF sensor.
3.
Cut the wires to the connector approximately
2" from the plug.
4.
Using the supplied connectors and wire,
extend the connector to the MAF.
5.
Install the supplied 3/8" split-loom to the
extended sensor plug harness. Secure the
split-loom with wire-ties or tape.
6.
Route the lengthened wires and connector to
the MAF, keeping the wires away from hot or
moving parts.
AIR INLET
SUPPORT BRACKET
P.
MAF Interface Adapter Installation (Charge
Cooled kits only)
1.
Locate the MAFia (Interface Adapter) box.
2.
Plug the MAFia in between the factory MAF
connector and the MAF sensor.
3.
Remove the small red cover in the middle of
the supplied MAFia box.
4.
Verify that the MAFia box is set on number
“2”.
5.
If you find that the MAFia box is not set, use
the tool that is provided with the MAF
Interface Adapter box and set to the number
“2”.
6.
Replace the cover and secure the MAFia box
and set to the number “2”.
NOTE: It is critical that the MAF Interface
Adapter box be set on number “2”,
The calibration that is provided
with this kit has been created to
work at this setting. Any change to
the MAF Interface Adapter box by
setting it to a higher or lower num-
ber could cause damage to the
engine.
Q.
On 2010 models it will be neccesary to bend
the hood latch cable bracket 90° for air filter
clearence.(See Fig 13-j)
90° BEND HERE
Fig. 13-j
