Page 50

47
Chapter 5: Network Tab
airOS
™
v5.5.4 User Guide
Ubiquiti Networks, Inc.
Action
You have the following options:
•
Add
Add a firewall rule.
•
Edit
Make changes to a firewall rule. Click Save to save
your changes.
•
Del
Delete a firewall rule.

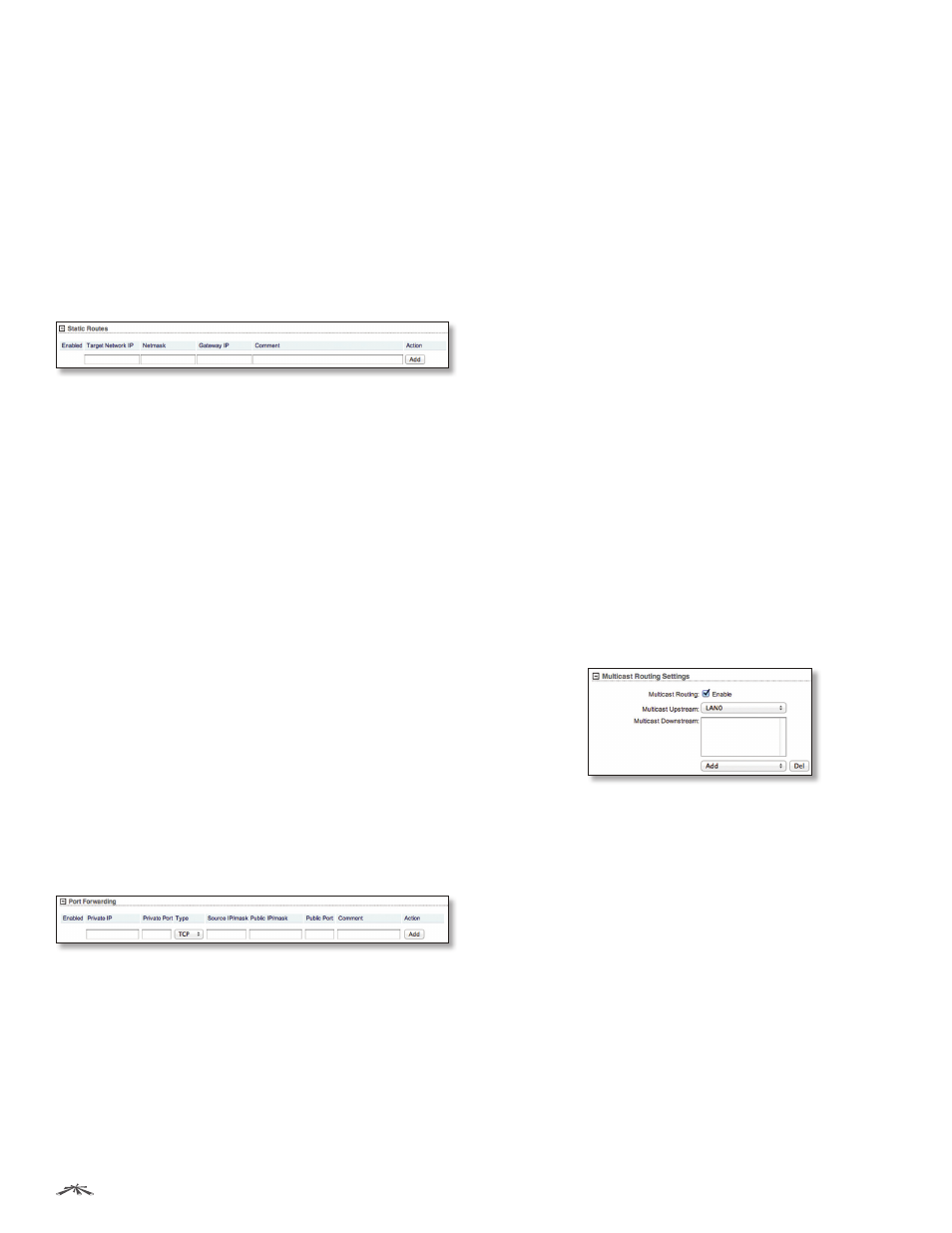

Static Routes
(Available in Advanced view.) You can manually add
static routing rules to the system routing table; you can
set a rule that a specific target IP address (or range of IP
addresses) passes through a specific gateway. Click the +
button to display the Static Routes section.
Enabled
Enables the specific static route. All the added
static routes are saved in the system configuration file;
however, only the enabled static routes are active on the
device.
Target Network IP
Specify the IP address of the
destination.
Netmask
Specify the netmask of the destination.
Gateway IP
Specify the IP address of the gateway.
Comment
You can enter a brief description of the
purpose for the static route.
Action
You have the following options:
•
Add
Add a static route.
•
Edit
Make changes to a static route. Click Save to save
your changes.
•
Del
Delete a static route.
Port Forwarding
Port forwarding allows specific ports of the hosts on the
local network to be forwarded to the external network
(WAN). This is useful for a number of applications (such
as FTP servers, VoIP, gaming) that require different host
systems to be seen using a single common IP address/
port. Click the + button to display the Port Forwarding
section.
Enabled
Enables the specific port forwarding rule. All
the added port forwarding rules are saved in the system
configuration file; however, only the enabled port
forwarding rules are active on the device.
Private IP
The IP address of the local host that needs to
be accessible from the external network.
Private Port
The TCP or UDP port of the application
running on the local host. The specified port will be
accessible from the external network.
Type
The Layer 3 protocol (IP) type that needs to be
forwarded from the local network.
Source IP/mask
The IP address and netmask of the
source device.
Public IP/mask
The public IP address and netmask of the
device that will accept and forward the connections from
the external network to the local host.
Public Port
The TCP or UDP port of the device that will
accept and forward the connections from the external
network to the local host.
Comment
Enter a brief description of the port
forwarding functionality, such as FTP server, web server, or
game server.
Action
You have the following options:
•
Add
Add a port forwarding rule.
•
Edit
Make changes to a port forwarding rule. Click Save
to save your changes.
•
Del
Delete a port forwarding rule.
Multicast Routing Settings
With a multicast design, applications can send one copy
of each packet and address it to a group of computers
that want to receive it. This technique addresses packets
to a group of receivers rather than to a single receiver. It
relies on the network to forward the packets to the hosts
that need to receive them. Common routers isolate all
the broadcast (thus multicast) traffic between the local
and external networks; however, the device can provide
multicast traffic pass-through functionality.
Multicast Routing
Enables multicast packet pass-through
between local and external networks while the device is
operating in Router mode. Multicast intercommunication
is based on Internet Group Management Protocol (IGMP).
Multicast Upstream
Specify the source of multicast
traffic.
Multicast Downstream
Specify the destination(s) of
multicast traffic.
Add
Add a destination.
Del
Delete a destination.
