Chapter 4: IExCH and HART

4-3

User’s Manual Pub. 0300257-01 Rev. A

4.2.1

Auto-Scanning of Dynamic HART Variables (PV, SV, TV, FV)

The module will continuously send Cmd 3 or Cmd 9 to the HART device connected on a
channel. Which command is sent is determined by the HART Universal revision number
of the HART device. If the device has a revision of 6 or greater then Cmd 9 is used,
otherwise for HART revision 5 devices Cmd 3 is used. The advantage of Cmd 9 is that it
contains a “Health Status” byte for each of the 4 dynamic variables that it returns. The
Dynamic variables and the status bytes are published in the module input tags. See
Section 3.6 for more information.

Device

in scan

list?

Send Command 0
Read Unique Identifier

Send Command 3 or 9

to read Dynamic
process variable

Reply?

Update Input Tag

New

Config.

Indicated

Remove device from

scan list

Reply?

Read configuration
information, such as
tag, units, range, etc.

Signal configuration
changed in input tag

Put device in scan list

Read configuration
information, such as
tag, units, range, etc.

Signal configuration
changed in input tag

Process 1

pass-through message

Yes

No

Yes

Yes

Yes

No

No

No

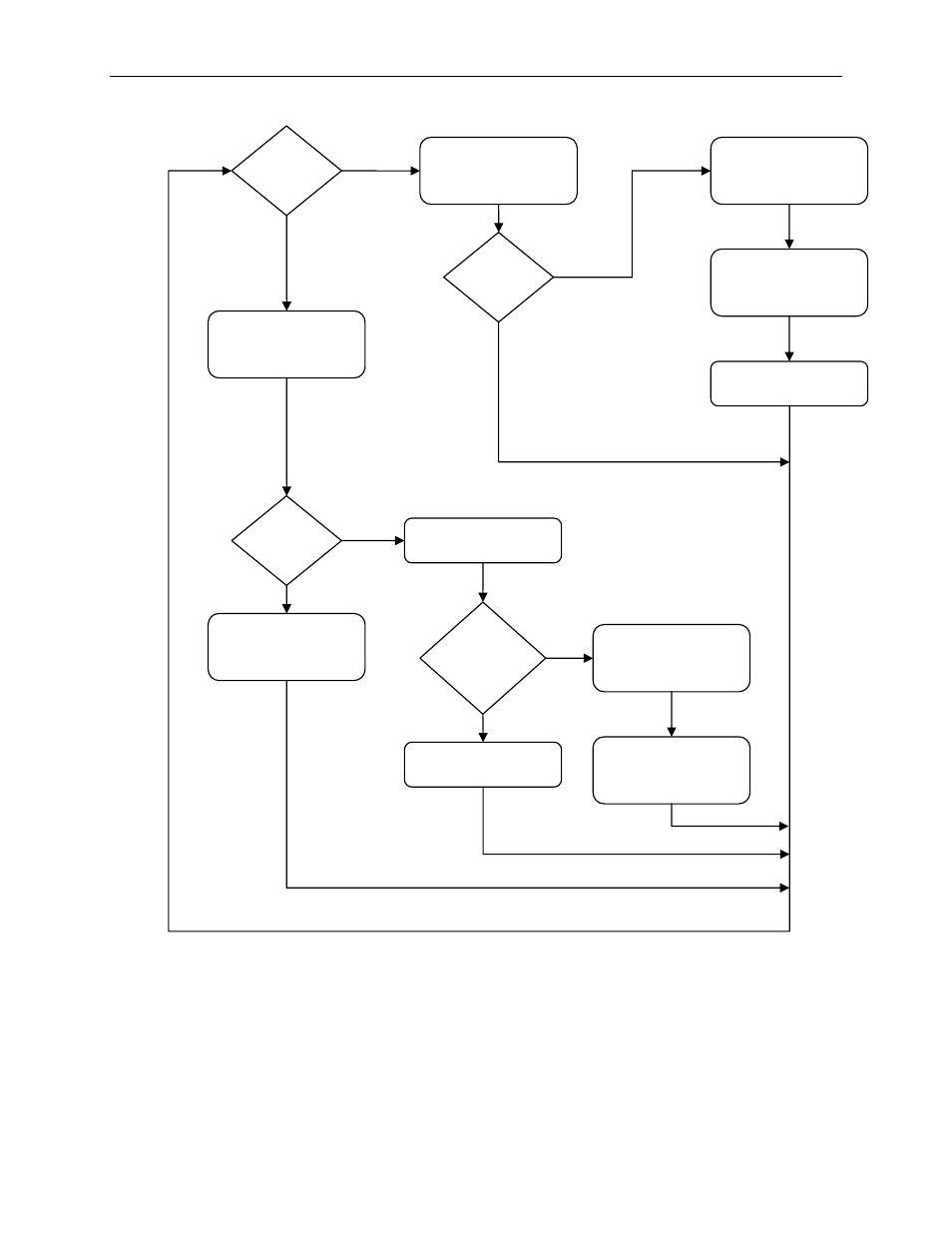

Figure 4-2 (Connect Cycle)
