2-4

Point IO™ 2/4 Channel Analog HART Module



User’s Manual Pub. 0300257-01 Rev. A

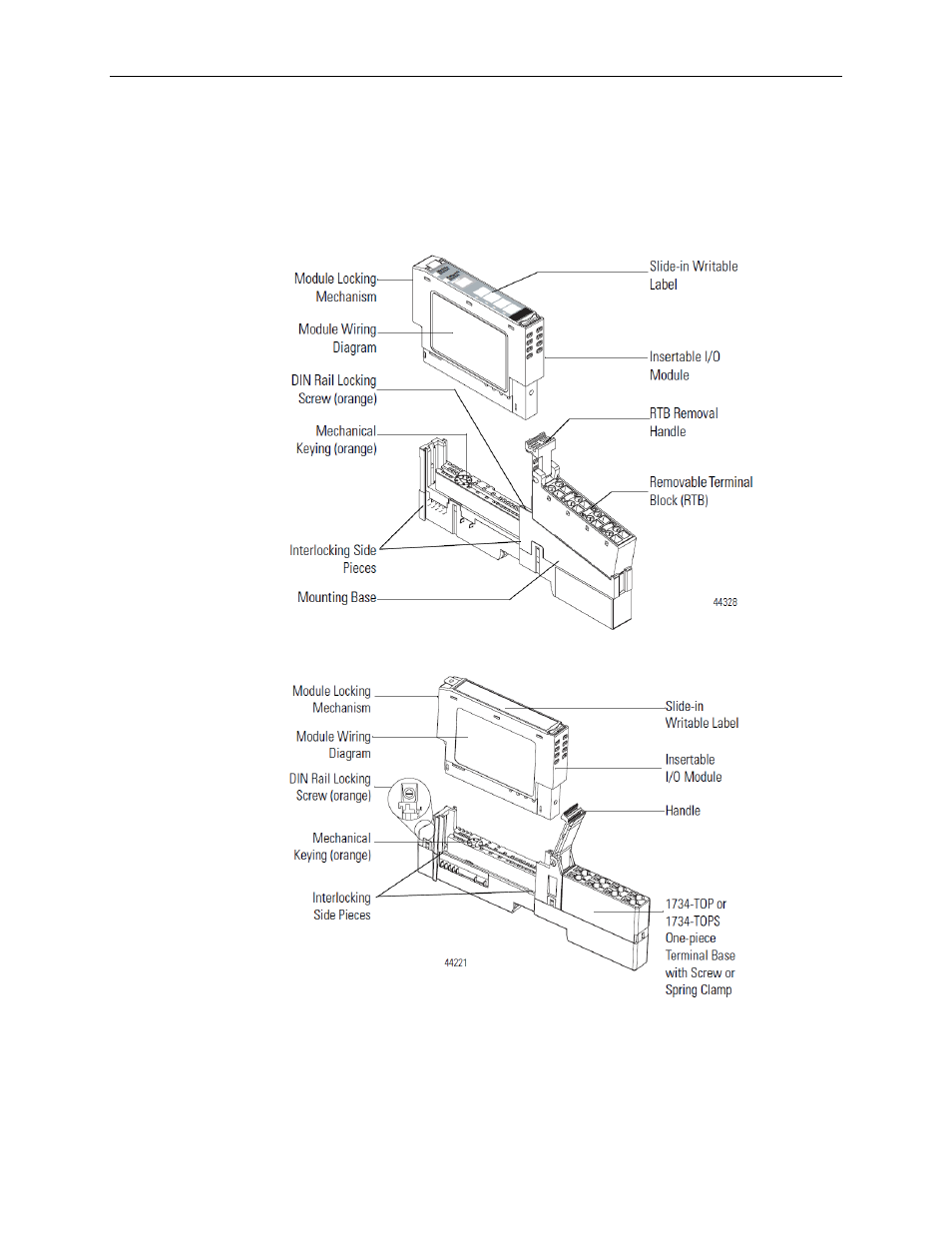

wiring base assembly is one of the following:

1734-TB or 1734-TBS POINT I/O two-piece terminal base, which includes the
1734-RTB removable terminal block and 1734-MB mounting base

1734-TOP or 1734-TOPS POINT I/O one-piece terminal base
