Point IO™ 2/4 Channel Analog HART Module
User’s Manual Pub. 0300257-01 Rev. A
3.4.2
Adding the IExCH Module To Your Logix Project
Once the profiles are installed you can access them through RSLogix 5000 via the I/O
Configuration. Follow the procedure below to add a module:
1.)
Before you can add the 1734sc-IExCH to your RSLogix 5000 project, you must
first add a local communication module and a remote communication adapter.
Complete sections 3.3.1 and 3.3.2 above, before proceeding to step 2 below.
2.)

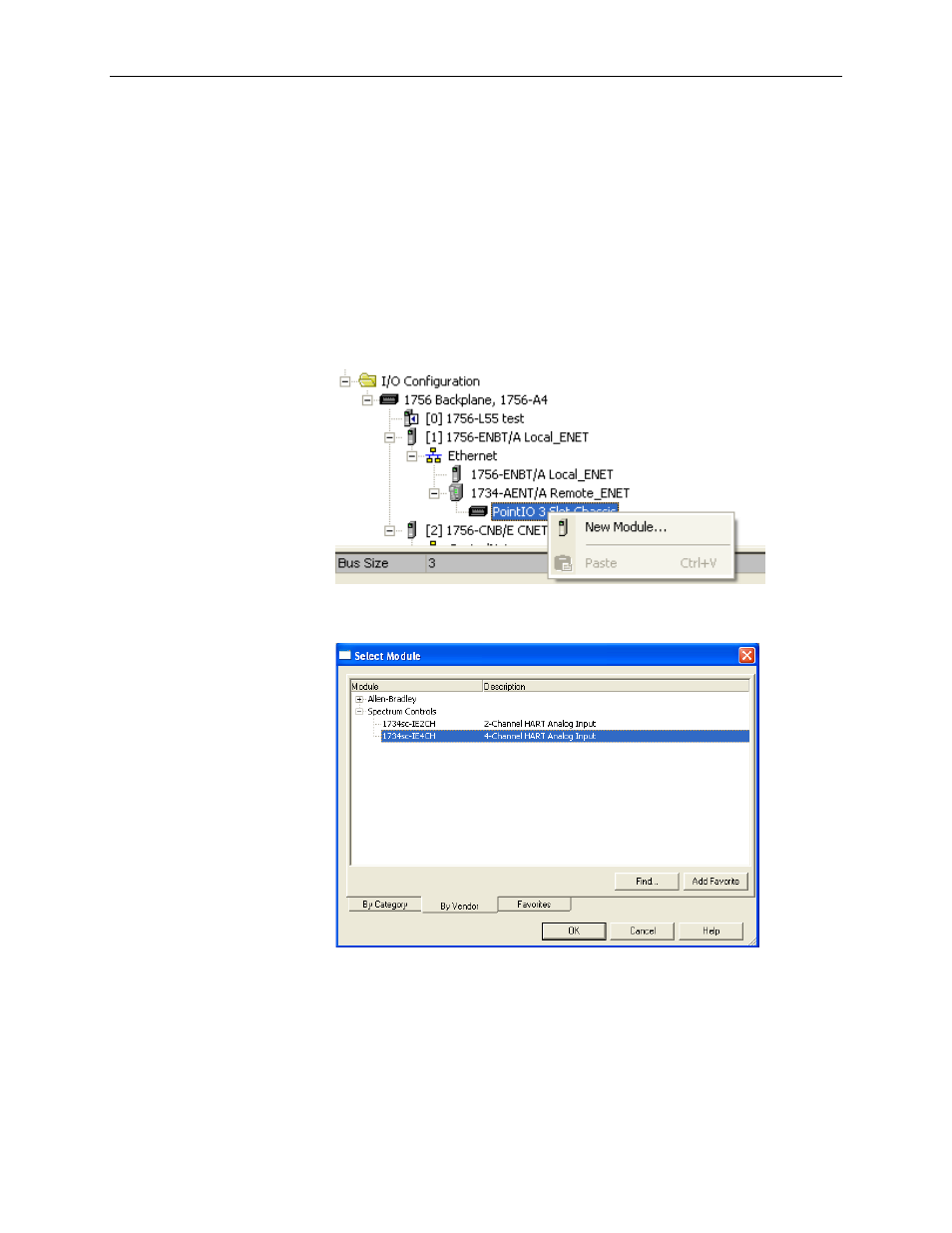

In the I/O Configuration, right mouse click on the Point IO backplane under the
remote communication adapter that you added in step one above and select
“New Module”.
3.)
When the dialog screen opens, select the “By Vender” tab and expand the
Spectrum Controls folder.
4.)
Highlight the module and press the “OK” button.
5.)
Give the module a unique name.
