Chapter 2: Installation and Wiring 2-9
User’s Manual Pub. 0300257-01 Rev. A
Table 2-2 (2 Ch Terminal Block Pinout)
RTB Pin# Usage Usage RTB Pin#
0 Input 0 Input 1 1
2 Field Power Field Power 3
4 Common Common 5
6 Chas GND Chas GND 7
0
IN 0
2
+ 24
4
COM
6
FGN
1
IN 1
3
+ 24
5
COM
7
FGN
2 Wire
Device 4 Wire
Device
AC/DC Pwr
0
IN 0
2
IN 2
4
COM
6
FGN
1
IN 1
3
IN 3
5
+ 24
7
FGN
2 Wire
Device 4 Wire
Device
AC/DC Pwr

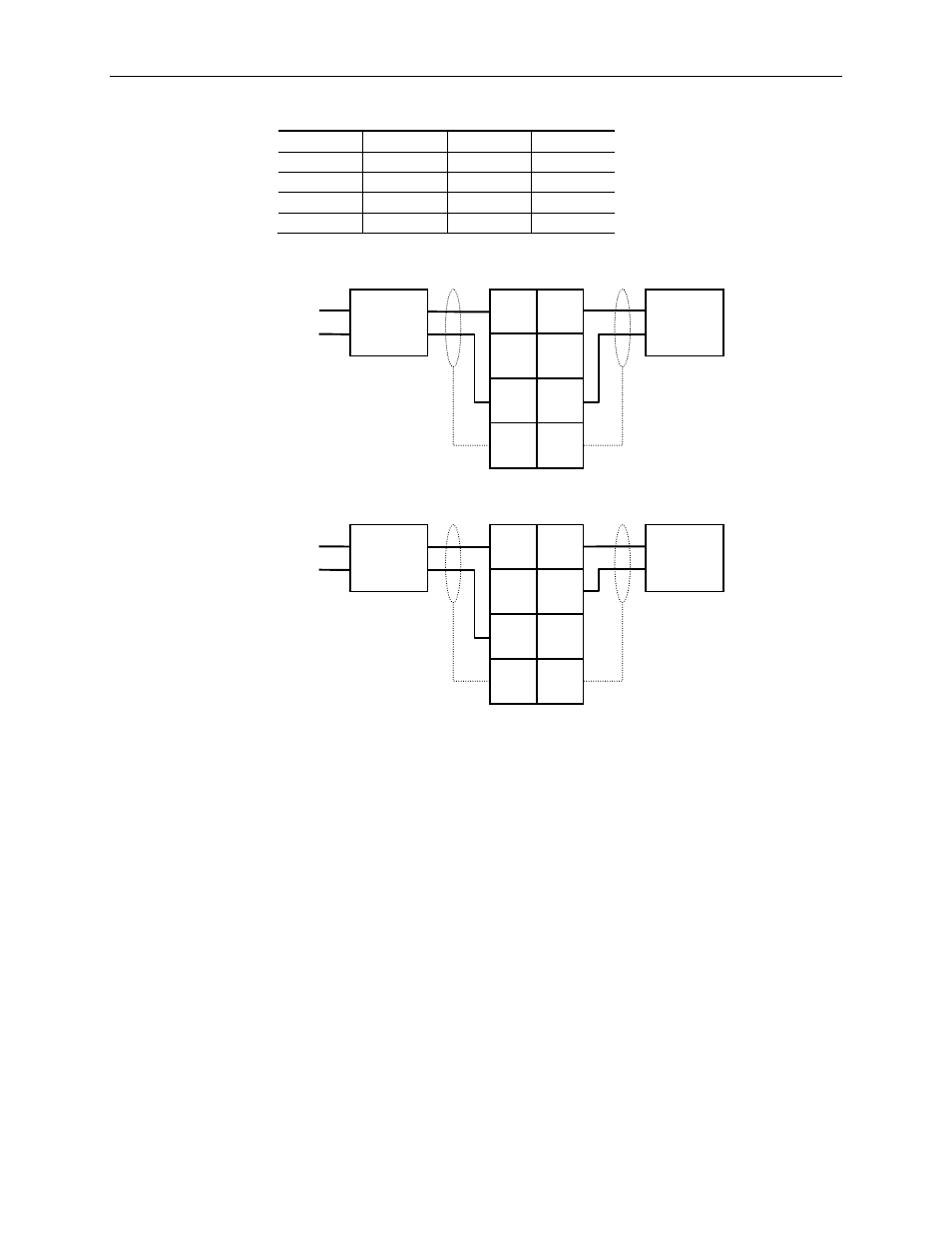

Figure 2-2 (IE2CH Wiring Diagram)
Figure 2-1 (IE4CH Wiring Diagram)
