Chapter 3: Configuring the 1734sc-IExCH for RSLogix 5000

3-7

User’s Manual Pub. 0300257-01 Rev. A

Section 3.4
Use
Add-On-Profile

For RSLogix 5000 version 15 and greater an Add-On module profile is available for
download at (

http://www.spectrumcontrols.com/downloads.htm

). The Add-On profile

allows the user to add the IExCH module to the RSLogix 5000 module pick list. The
profile provides configuration and information screens to the user to simplify installation.
Follow the procedure below to install and use the Add-On profile.

3.4.1

Installing the Add-On profile

1.) Download the zipped file from the Spectrum Controls website and unzip

the file (

http://www.spectrumcontrols.com/downloads.htm

)

2.)


Open the created folder and double-click on the MPSetup.exe file.

3.)

Follow the online prompts.

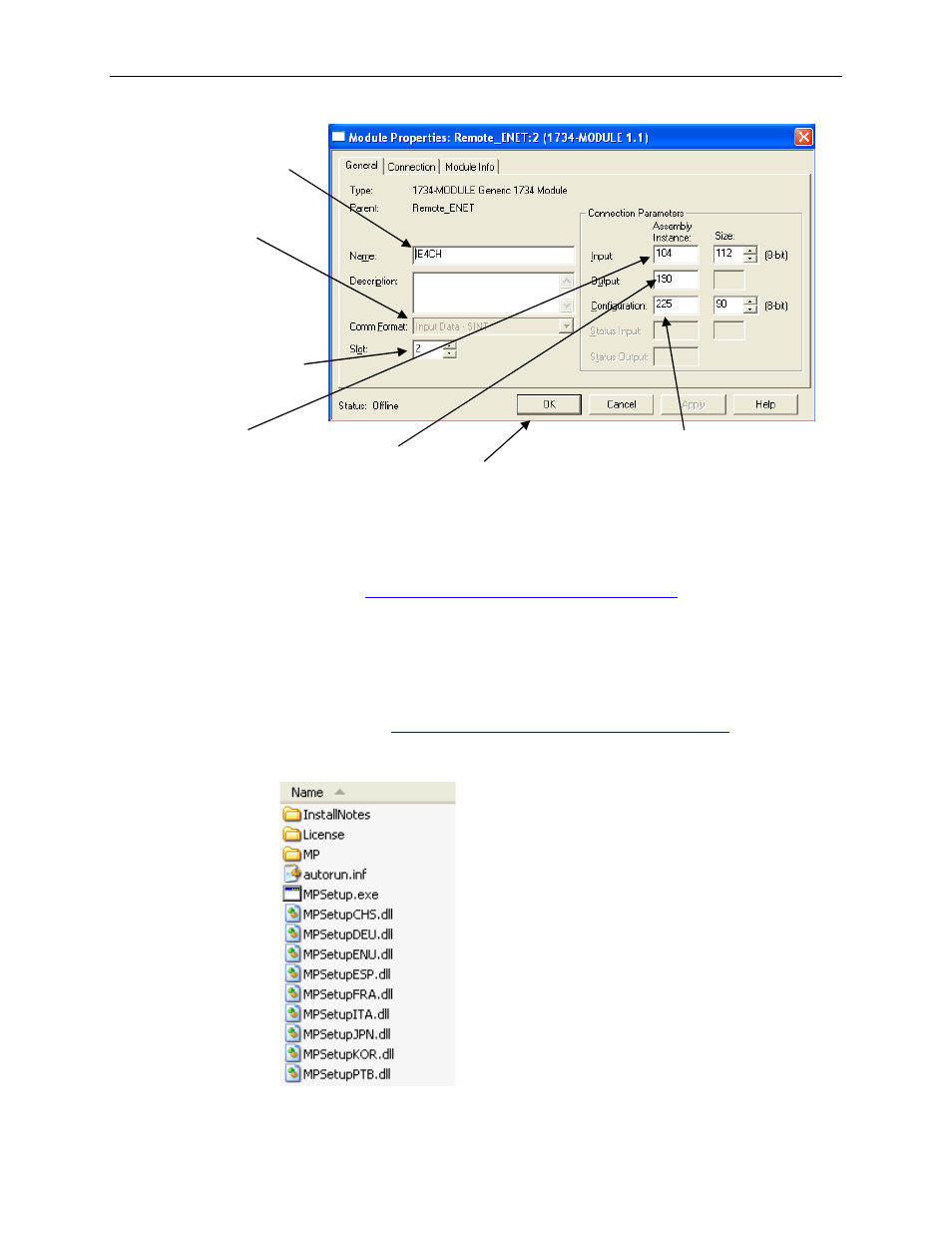

Name the module

Enter “Input Data – SINT”
for Comm. Format

Enter module slot #

Enter the input assembly
instance and size.

Enter the output
assembly (always 190)

Enter the configuration
assembly instance and
size.

Click OK
