3-4

Point IO™ 2/4 Channel Analog HART Module



User’s Manual Pub. 0300257-01 Rev. A

3.3.2

Add a Remote Ethernet Point IO Adapter

After you have added the local Ethernet communication module, you must add remote
Ethernet communication modules. A remote Ethernet module is a module that resides in a
separate chassis from the controller.

!

Attention

If you plan to use the 1734 Control Net adapter, you will need to install
the 1734sc-IExCH EDS file before scheduling the network. The latest
EDS files can be found at (www.spectrumcontrols.com).

1.)

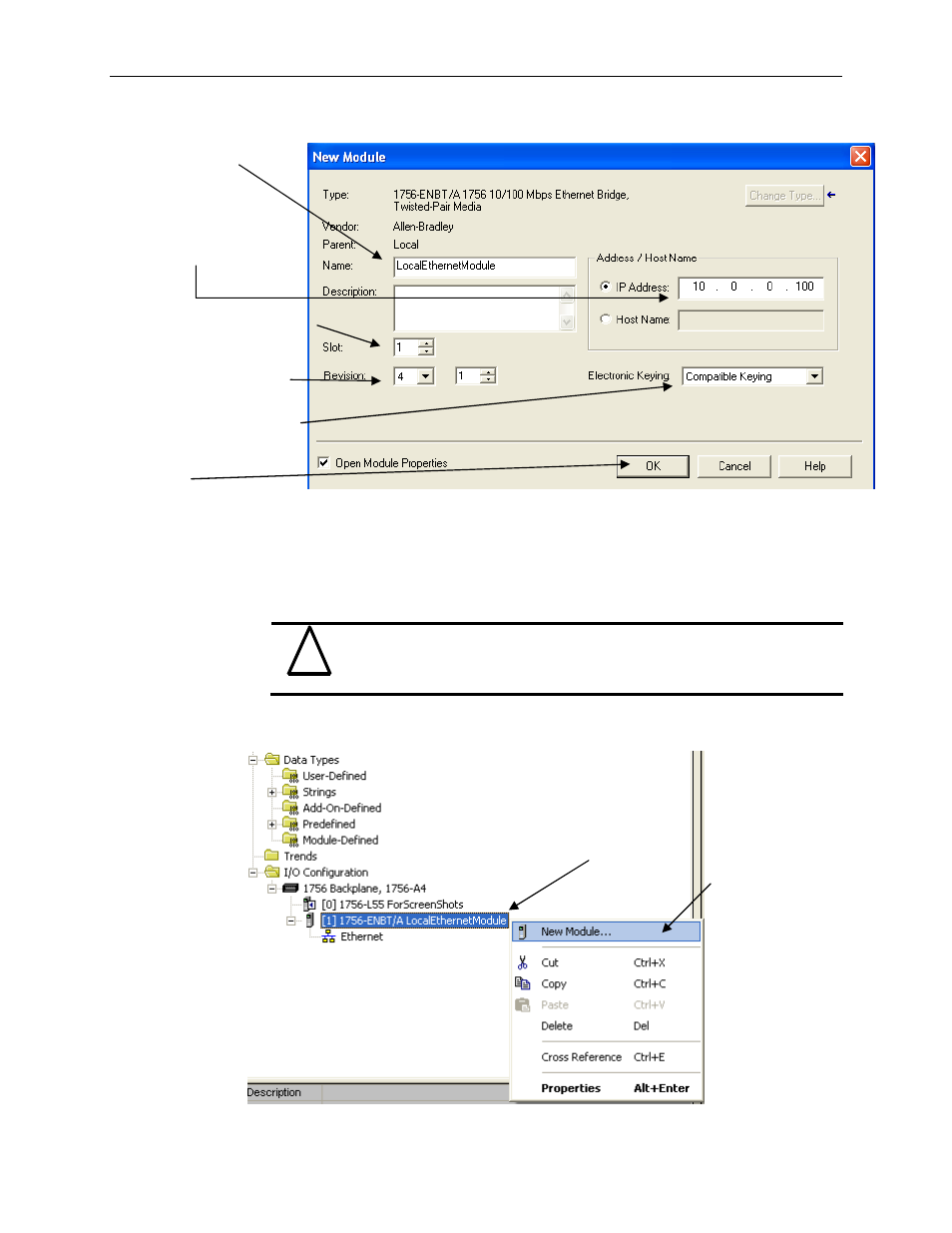

Select a New Module for the I/O Configuration.

Right-click on the local
communication module

Select New Module

Name the module

Select the module’s slot number

Enter IP address of ENBT

Select the module’s revision
level

Select electronic keying level

Click OK
