1-2 Point IO™ 2/4 Channel Analog HART Module
User’s Manual Pub. 0300257-01 Rev. A
Section 1.5
Hardware
Features
Channels are wired as differential inputs.
Module configuration is done via the controller’s programming software. The module
configuration is stored in the memory of the controller. Refer to your controller’s user

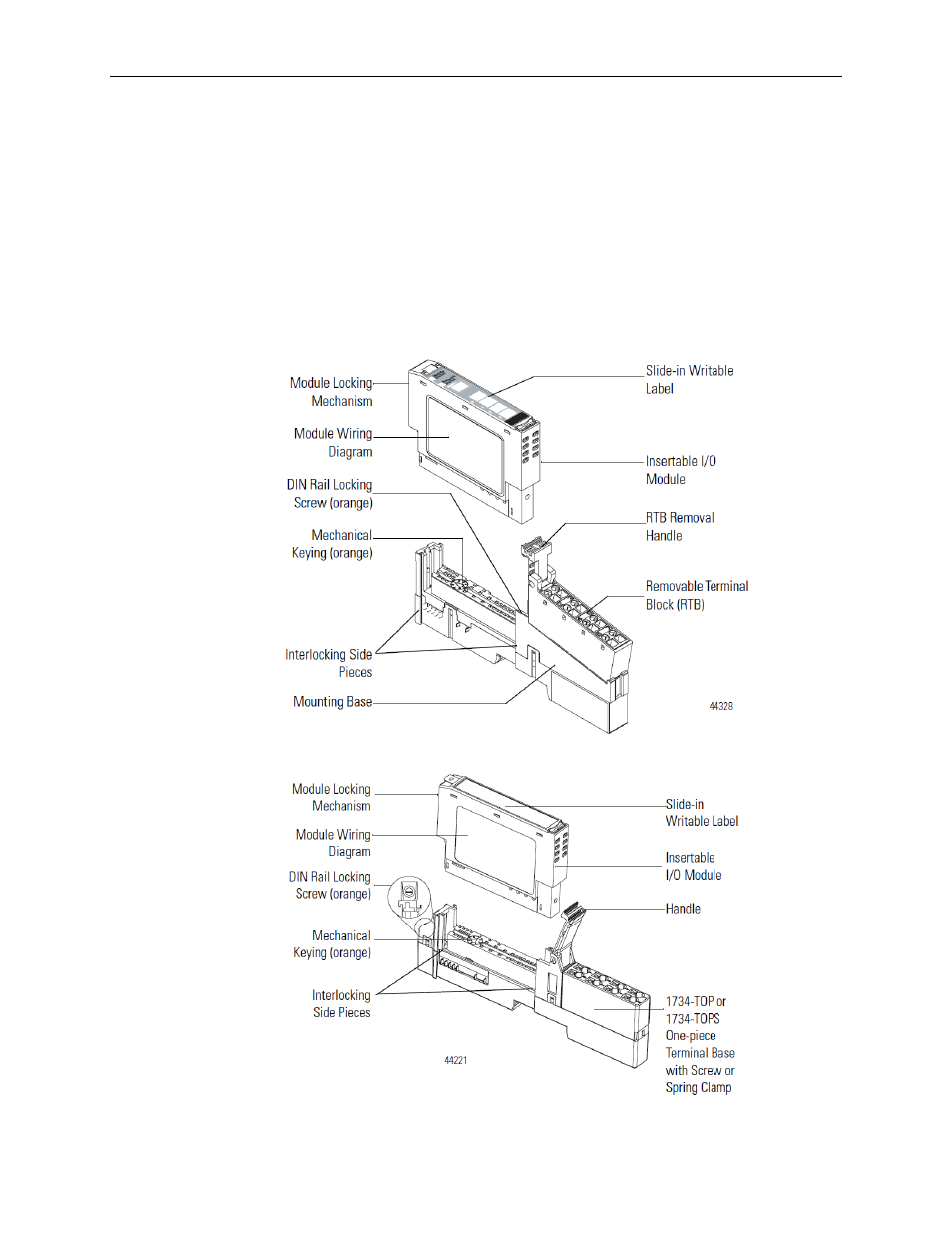

manual for more information. The illustration below shows the module’s hardware
features.
Figure 1-2
Figure 1-1
