EXFO IQS-600 Integrated Qualification System User Manual
Page 43
Getting Started with Your Integrated Qualification System
Integrated Qualification System
35
Inserting and Removing Test Modules
Since IQ modules do not have retaining screw knobs to help you remove
them, EXFO provided you with a special tool to facilitate the operation.
To remove IQ modules:
1. Slide the tool’s end between the module front panel and the unit.
2. Using the bumper as the pivot point, push down the tool to release the
module.
3. Pull the module out.
Use the same precautions regarding module protective covers as you
would for your IQS modules.

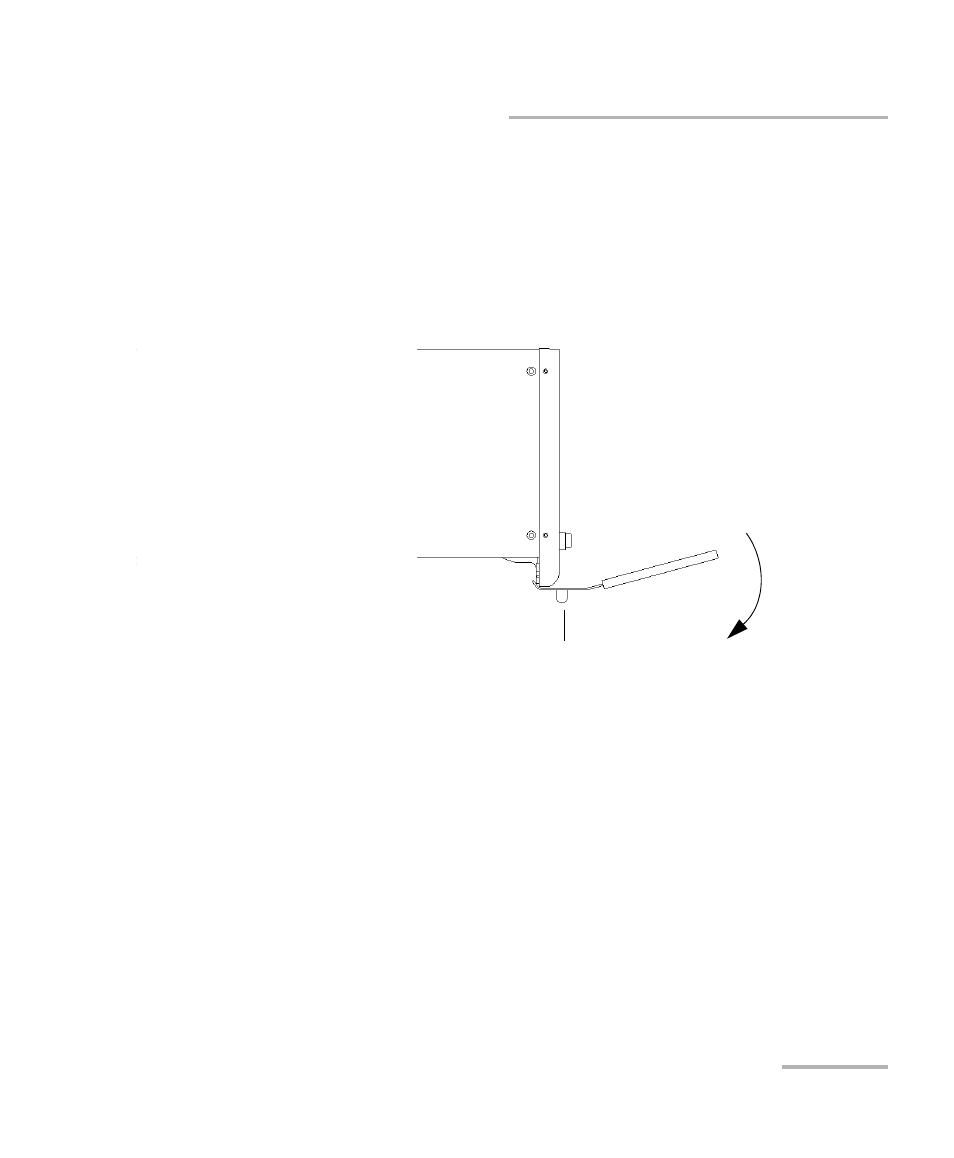

Bumper
