Using IQS Products in an Automated Test Environment
196 IQS-600
Using the EXFO Getting Started Applications

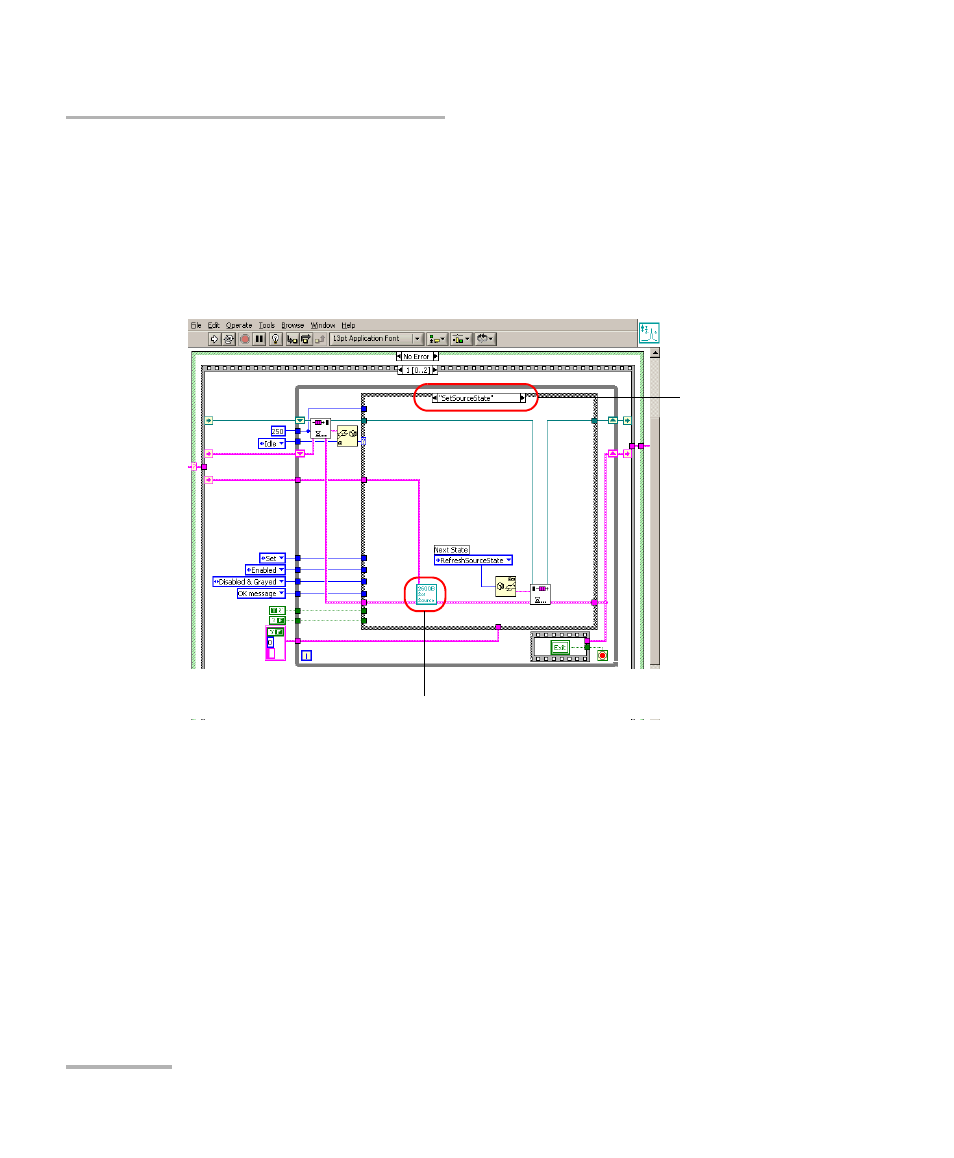

The following figure illustrates the State Machine after the user has clicked
on the button allowing you to set the source state (from the Front Panel).
When the State Machine changes to “SetSourceState”, the application calls
“Instrument2600bTest_SetSourceState.vi”, which, in turn, calls the
“SourcePowerState_GSet.vi”sub VI that will perform the appropriate action
on the instrument.
State Machine
Instrument2600bTest_SetSourceState.vi
