Introducing the IQS-600 Integrated Qualification System
4 IQS-600
Available Models

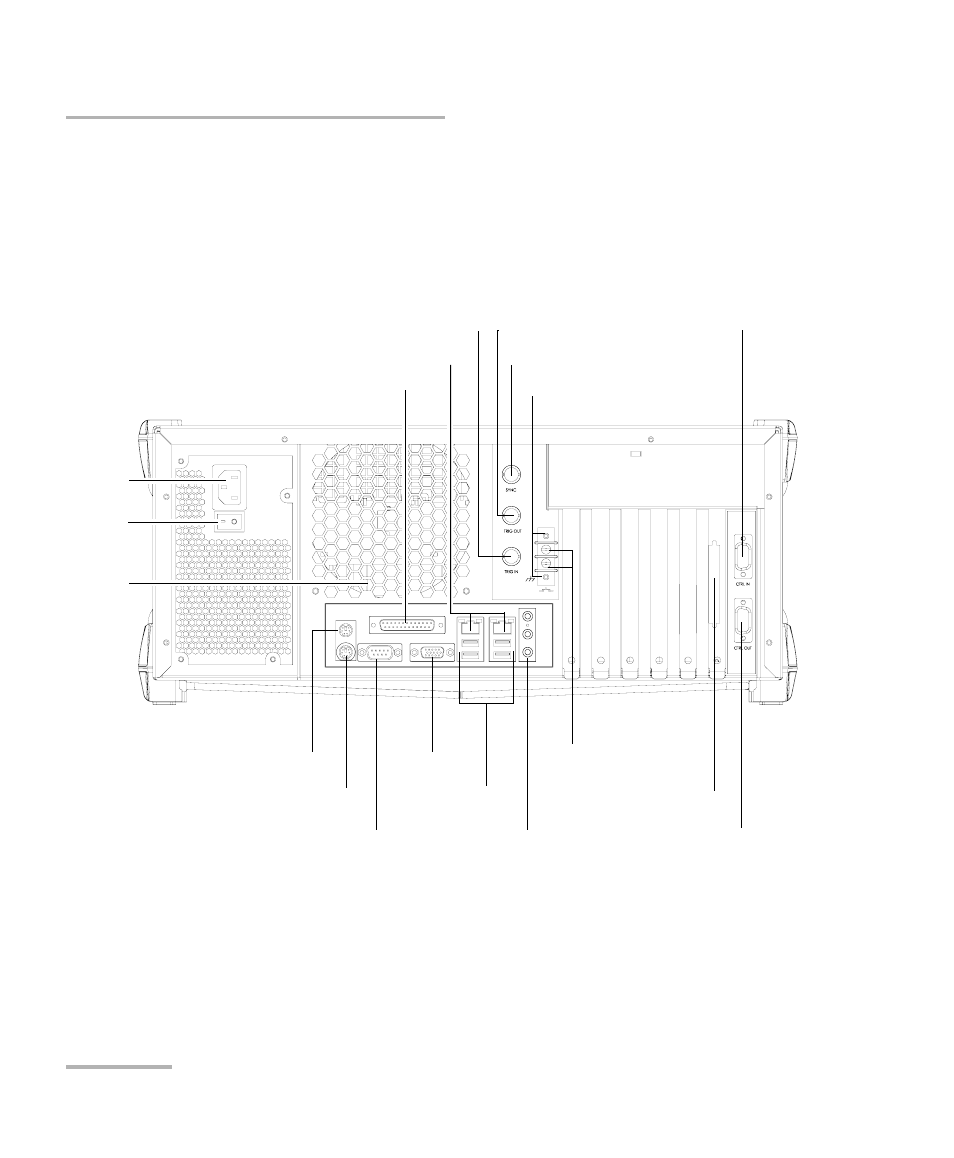

The back of the IQS-605P-HS controller unit is where you find the
peripheral connectors, as well as the power outlets and connectors to link
expansion units to your controller unit.
Control Out port
Interlock ground terminals (2)
Audio ports (3)
USB ports (4)
Serial port
Ethernet port (2)
Parallel (printer) port
AC
socket
Main
power
switch
Trigger input
BNC synchronization port
EXFO Bus Out port
Control In port
PS/2 keyboard port
PS/2 mouse port
Interlock ground
terminals (2)
Trigger output
Monitor port
Fan
