Getting Started with Your Integrated Qualification System
Integrated Qualification System 27
Connecting One or More Expansion Units to a Controller Unit
To connect an Expansion Unit to a Controller Unit:
1. Connect the provided cable to the EXFO Bus Out port located at the
back of your controller unit.
I
MPORTANT
To ensure that your cable is properly connected, firmly push the IQS
interface cable into the port until it clicks twice. An improper
connection might cause operation problems.

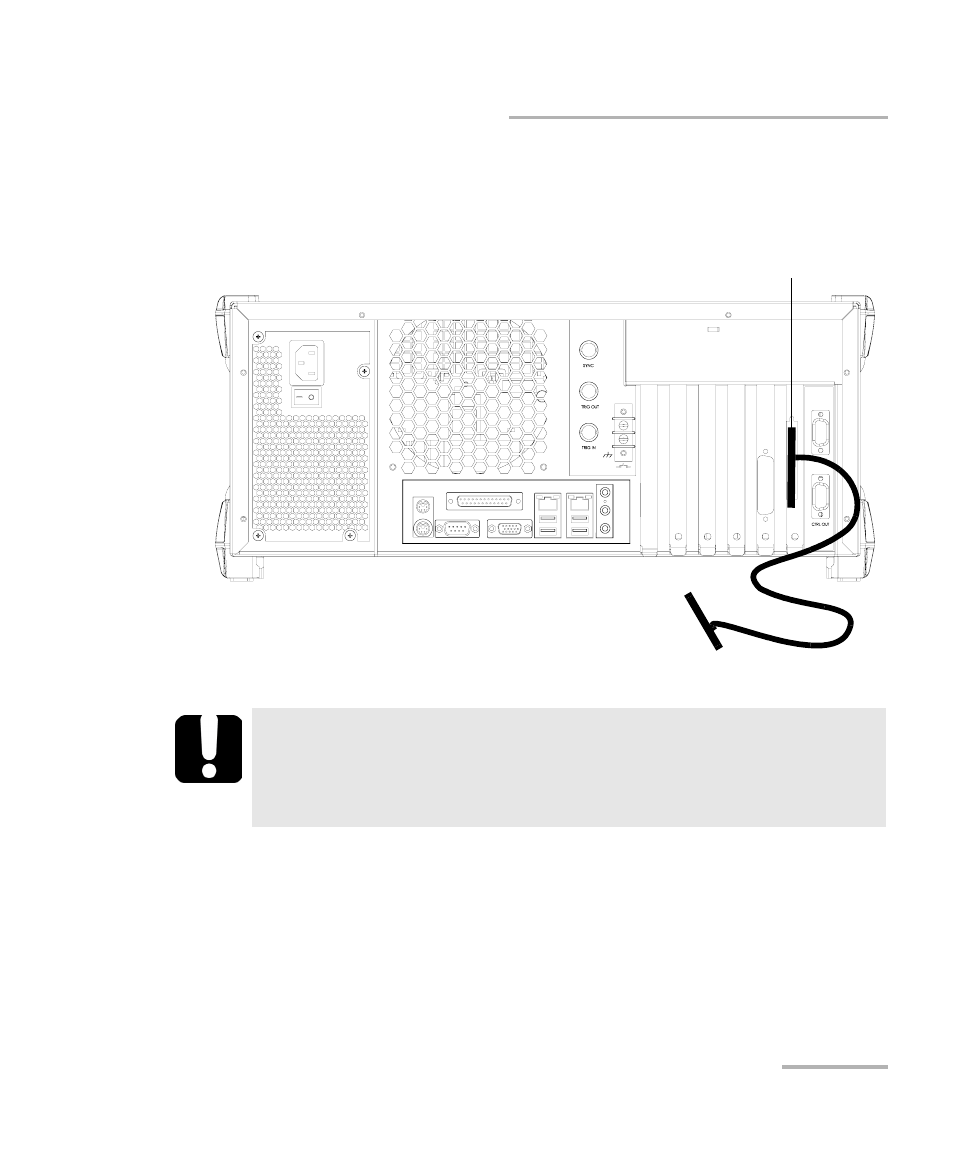

EXFO controller Bus Out port
