Data Types

Integrated Qualification System

273

Applicable Data Types for Output —IEEE 488.2

Applicable Data Types for Output —IEEE 488.2



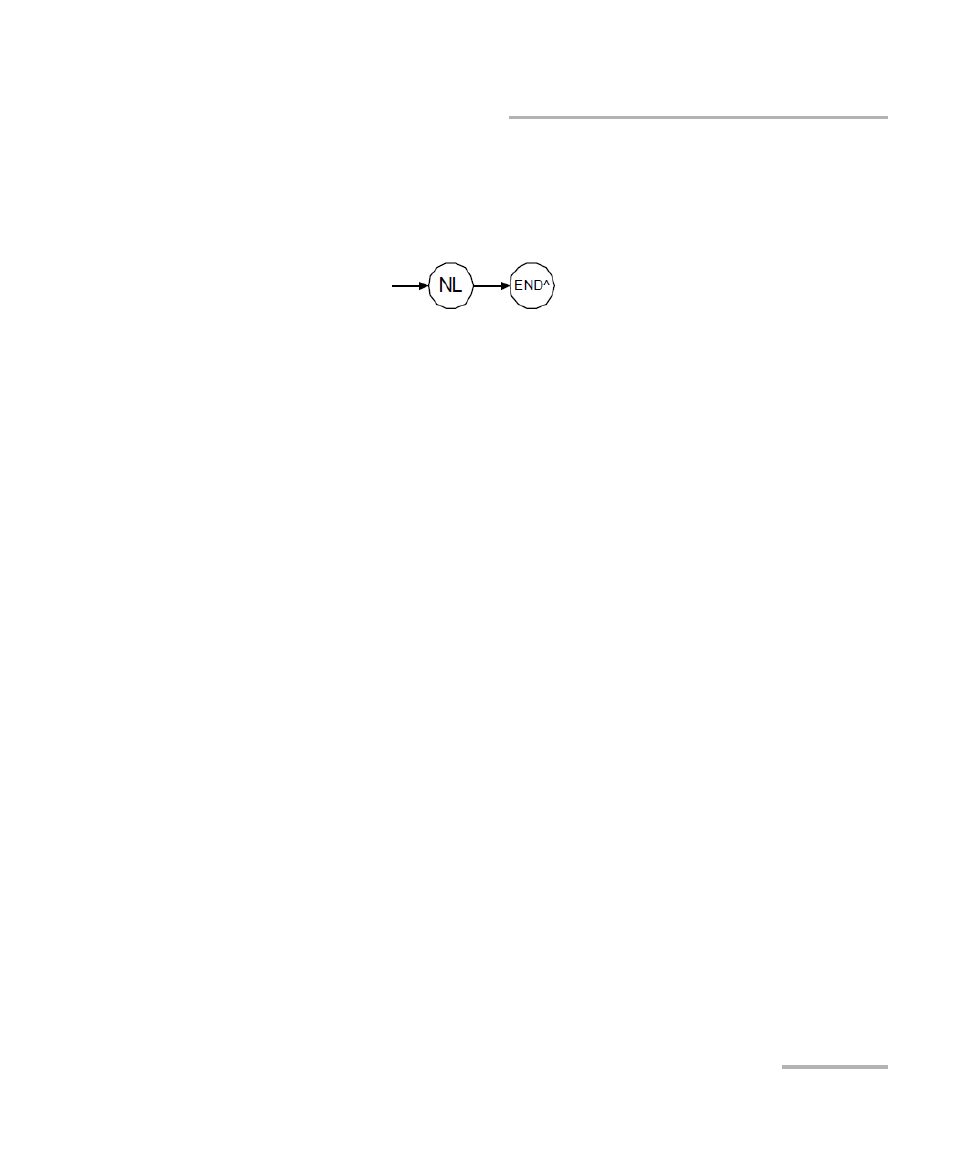

In the diagram above,



“NL” corresponds to ASCII character code 10, in decimal (0A in
binary)



“END^” corresponds to the last data byte of the message sent with
EOI = True and ATN = False



This data type is used by a device to return short mnemonics when a
cannot be used. The returned
information is sent in the long form and in upper case.

Examples: TRIANGLEWAVE, NCONTINUOUS
