Setting Up Your Variable Attenuator
Variable Attenuator 31
Control Center Settings and Controls
To select a display mode:
1. Click the Instrument function tab.
2. Under Control Center, enter the appropriate settings.
3. Under Mode click the appropriate button.

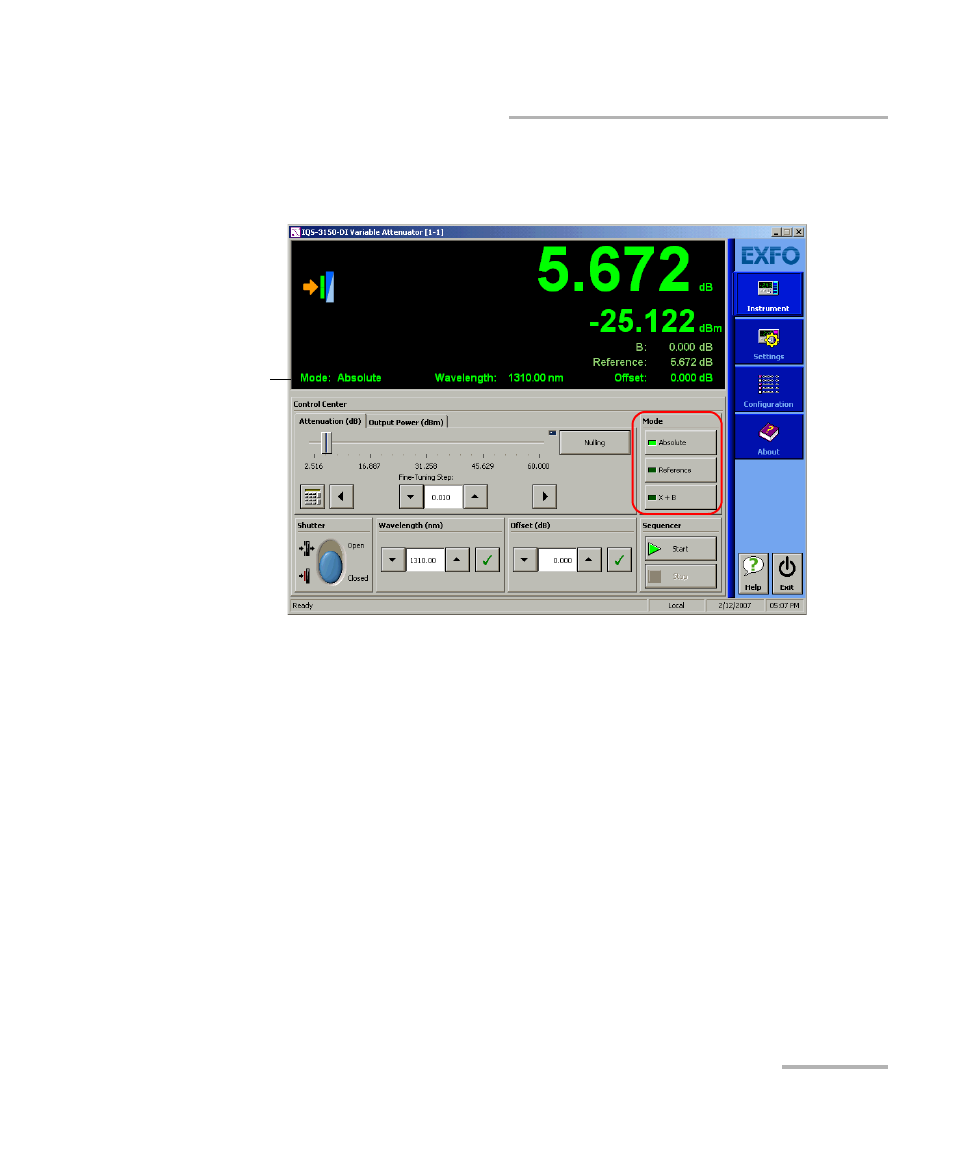

The selected display mode appears next to Mode on the data display.
The selected
display mode
