EXFO FastReporter Data Post-Processing Software User Manual
Page 97
Working with PMD Files
Data Post-Processing Software
91
Changing PMD Settings
4. To apply the changes without closing the dialog box, click Apply. To
apply the changes and close the dialog box, click OK.

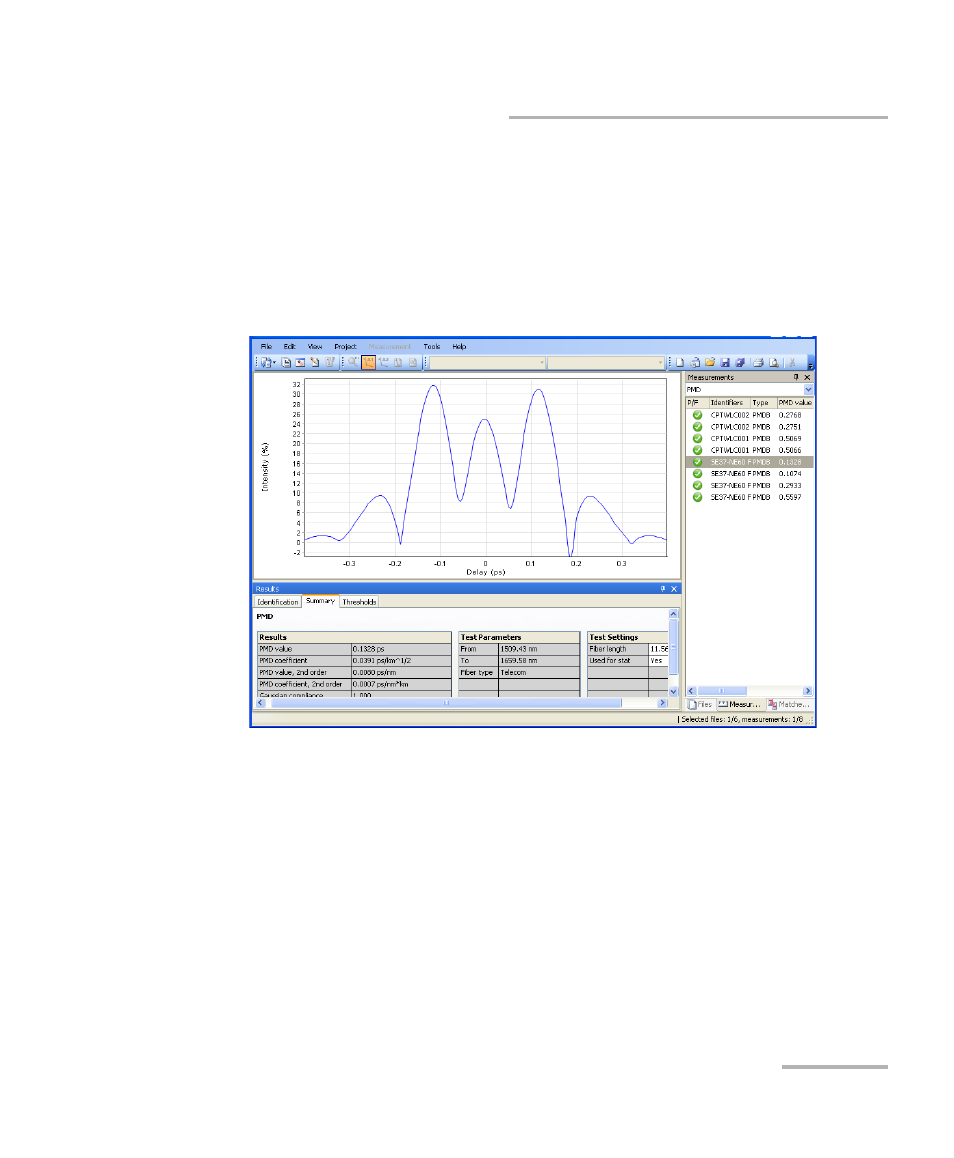

The thresholds are displayed in the main window, in the Summary tab,
under Results. If some values failed the test, they will appear clearly in red.
Note: The .cdpmd files do not display a graph for the PMD measurement.
