Working with OTDR Files
Data Post-Processing Software 59
OTDR Zoom Options
³

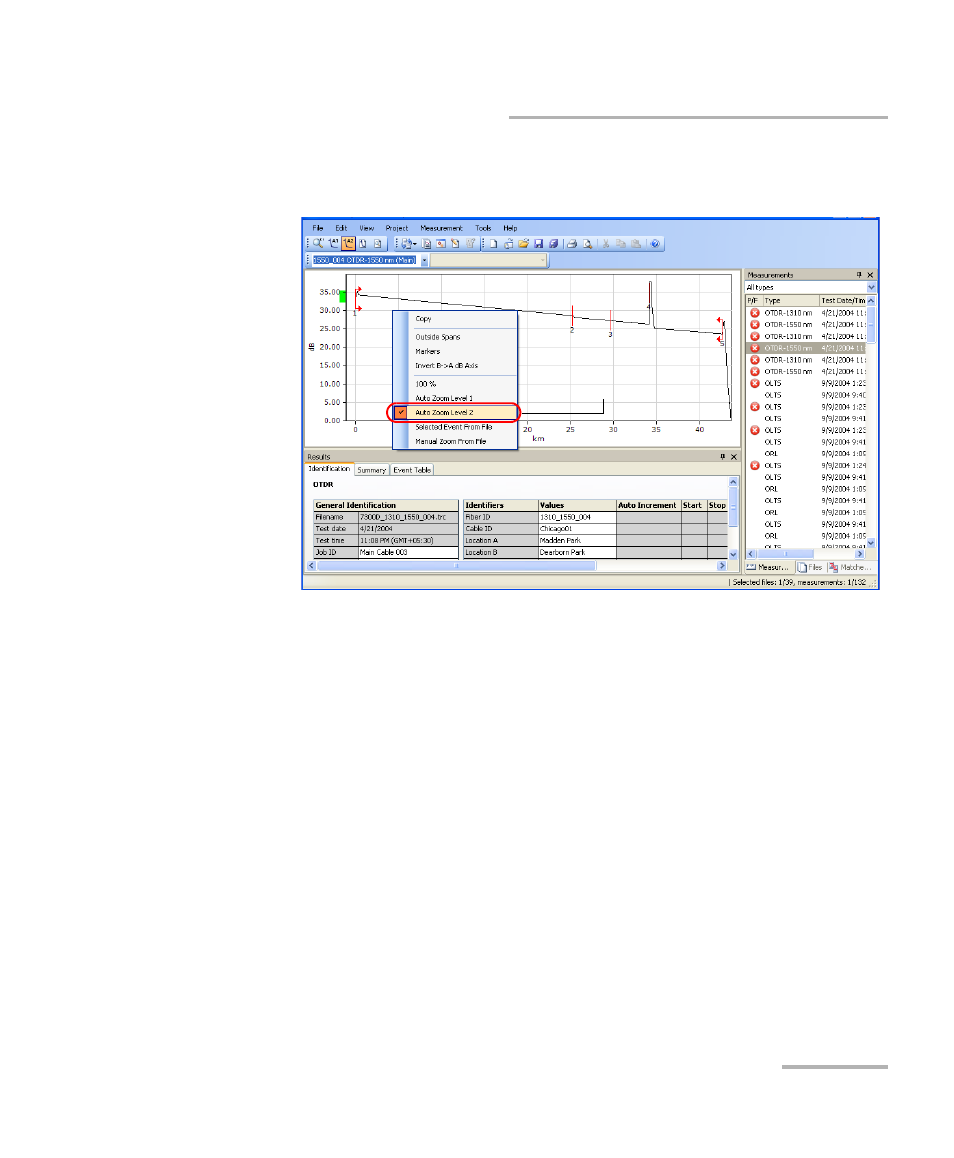

Auto Zoom (level 2) to put the emphasis on losses. Auto Zoom
(level 2) is illustrated for two selected events in the image below.
³
Selected Event from File to zoom to a selected event that was
saved in the file, if present. Auto Zoom (level 1) will be applied.
³
Manual Zoom from File to manually zoom using information
saved in the file, if present.
Selected with the
contextual menu
