EXFO FastReporter Data Post-Processing Software User Manual
Page 87
Working with CD Files
Data Post-Processing Software
81
Changing CD Settings
4. To apply the changes without closing the dialog box, click Apply. To
apply the changes and close the dialog box, click OK.

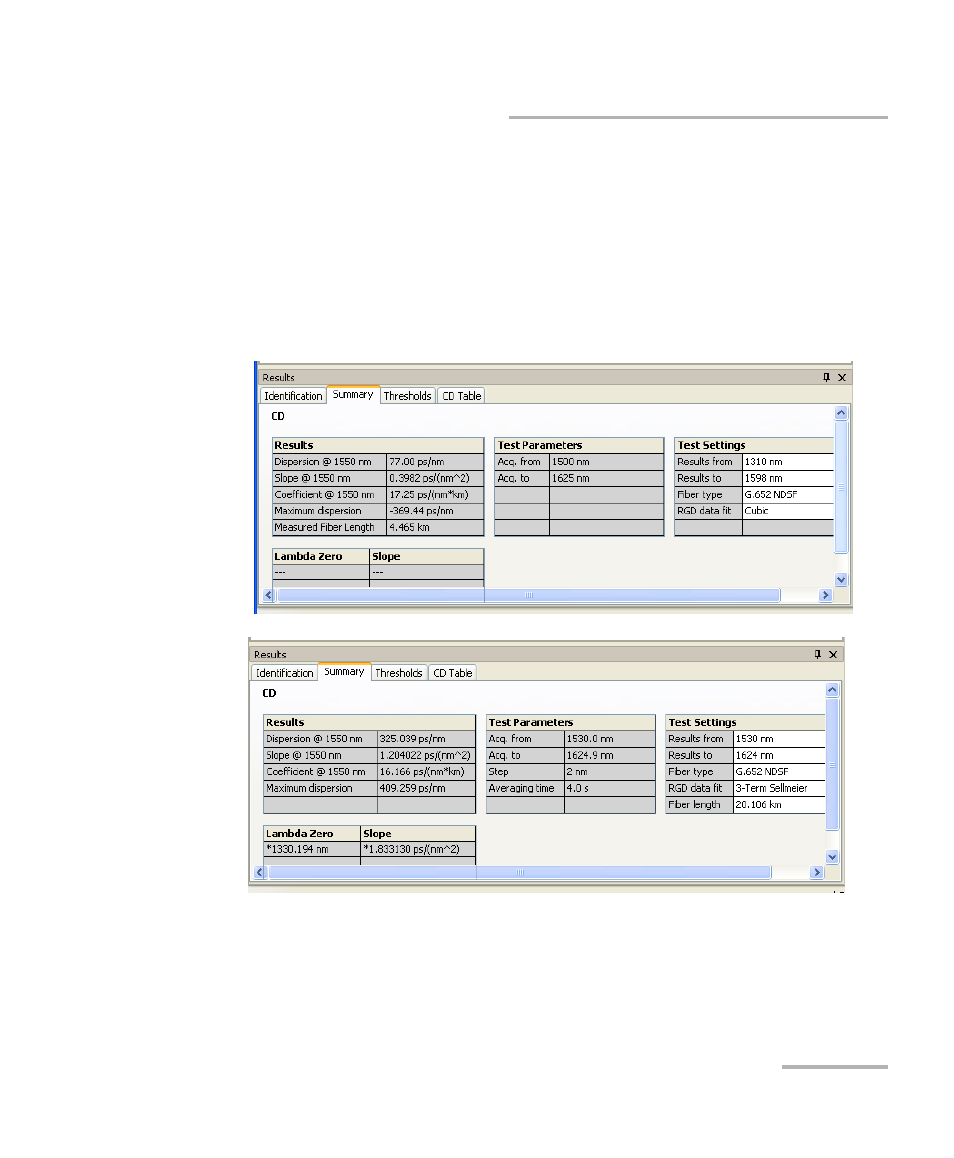

The thresholds are displayed in the main window, in the Summary tab,
under Results. If some values failed the test, they will appear clearly in red.
Note: The first figure illustrates the display for a .cdpmd file, and the second for an
.exfocd file.
