Working with OTDR Files
58 FastReporter
OTDR Zoom Options
OTDR Zoom Options
You can select from different zoom options on graphics for OTDR
measurement files.
To change OTDR zoom options:
1. On the View menu, select Zoom to display the OTDR zoom options.
OR
On the graphic, click the right mouse button to display the OTDR zoom
options on the shortcut menu.
2. Select one of the following OTDR zoom options:
³
100 % to display the full graphic for the measurement (default
setting).
³
Auto Zoom (level 1) to put the emphasis on reflective events. Auto

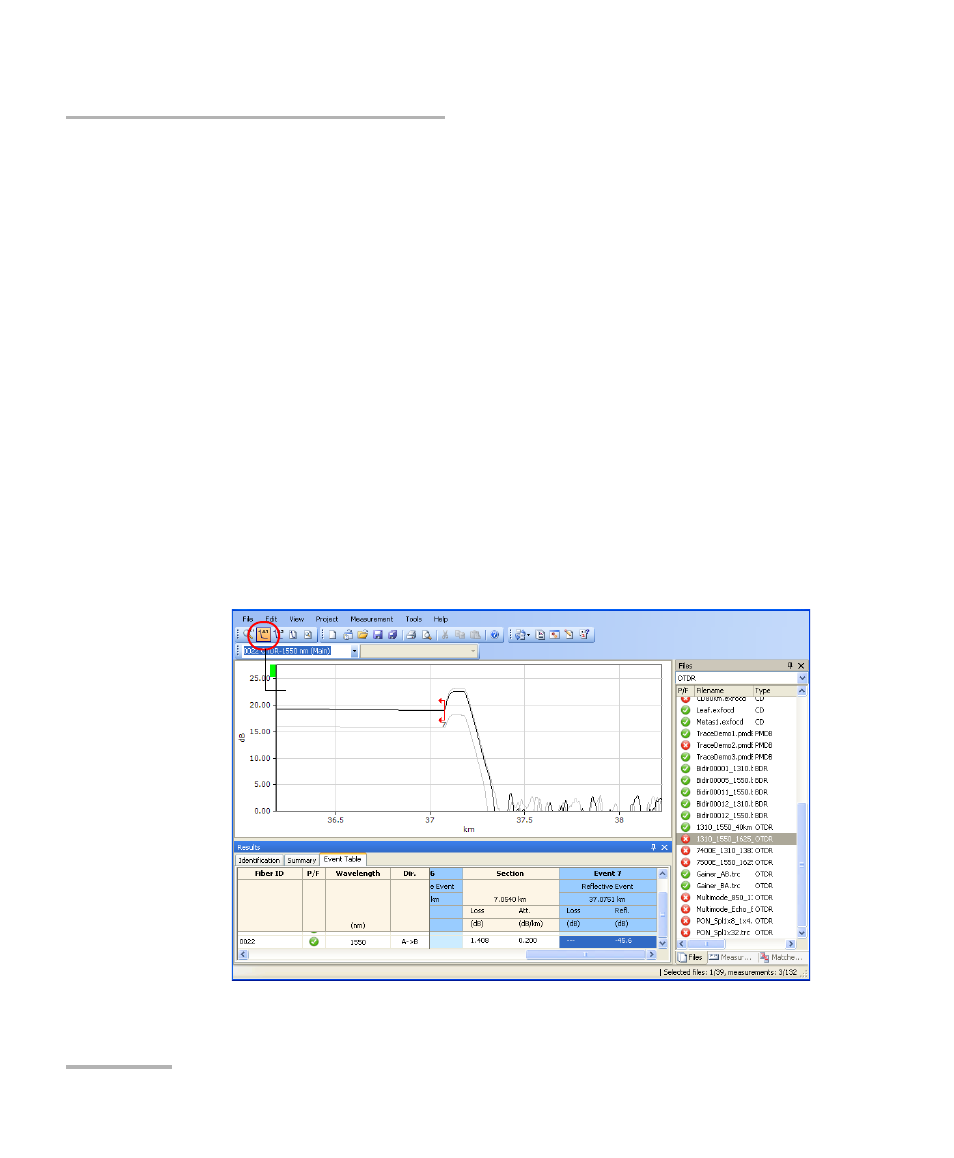

Zoom (level 1) is illustrated for one selected event in the image
below.
Selected with
the button
