Working with OTDR Files
36
FastReporter
Changing OTDR Settings
Changing OTDR Settings
The OTDR Properties dialog box consists of four tabs where you can
change general properties, pass/fail thresholds for selected wavelengths,
event matching tolerances, and automatic file matching rules for OTDR
projects.
Changing General Properties
To change OTDR General options:
1. On the Project menu, select OTDR Properties.

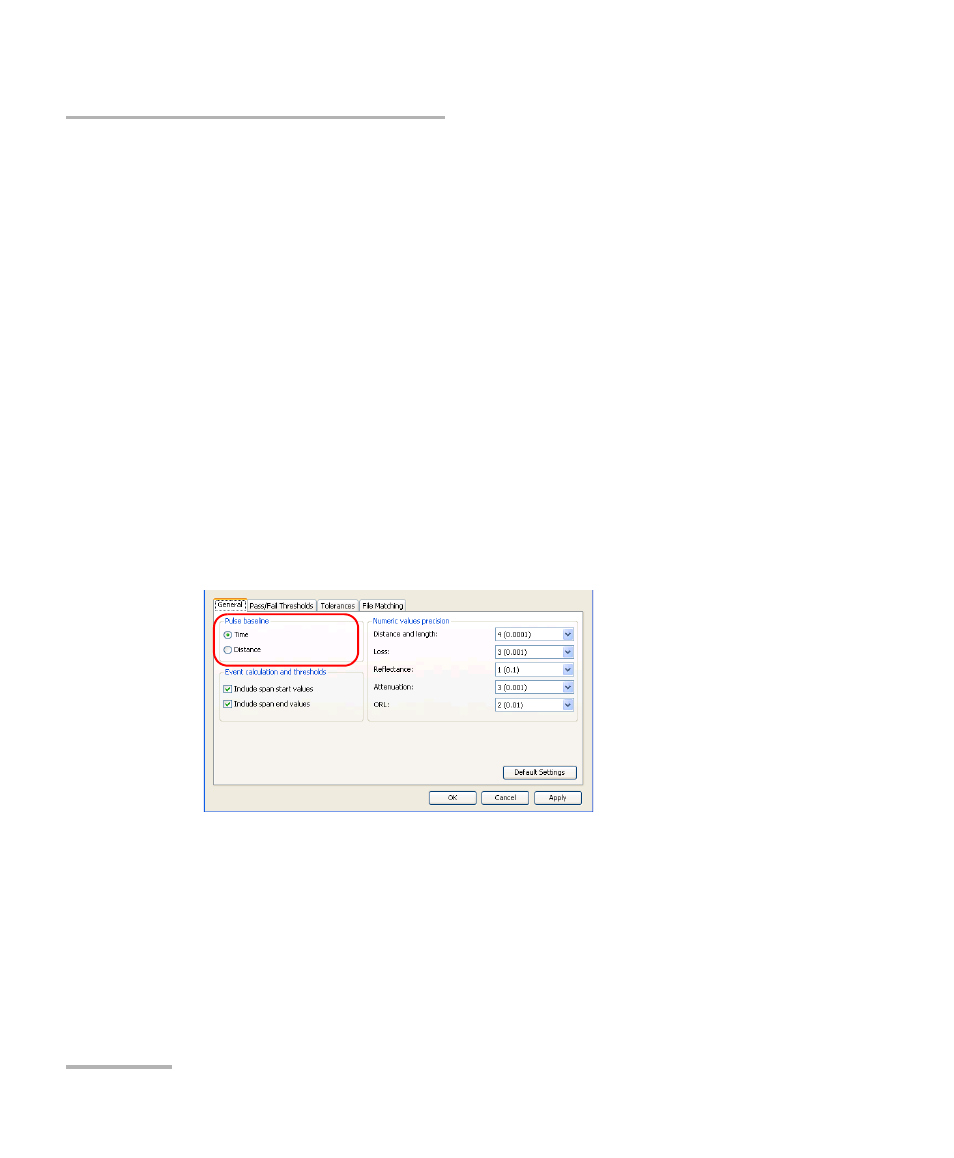

2. Click the General tab.
3. Click Distance to change the pulse baseline from time to distance, if
desired.
Note: The pulse baseline distance is always given in meters.
