Working with iOLM files
134
FastReporter
Link View

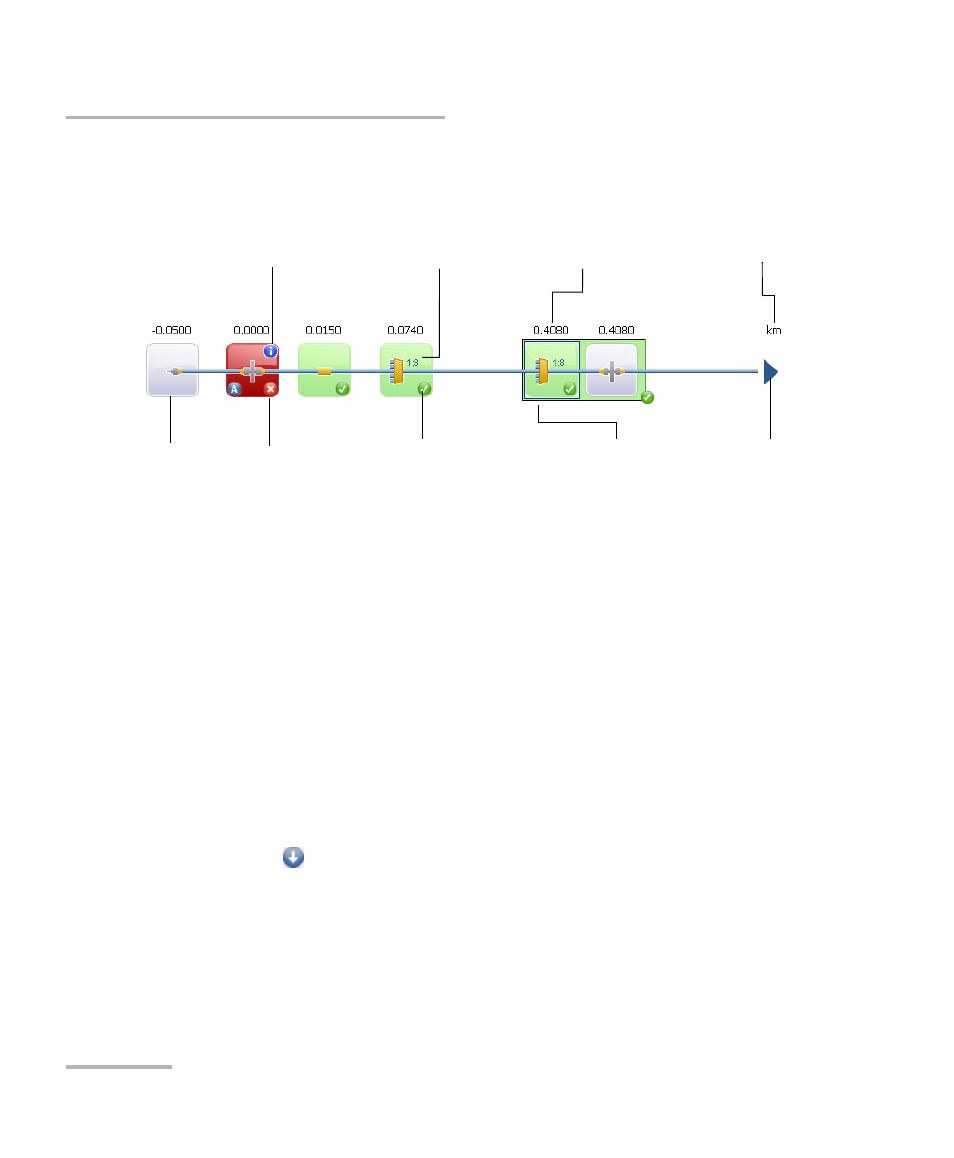

Link Composition
The link composition is described below.
³
Element position: The distance of the element from the beginning of
the link under test.
³
Navigation Arrow: The navigation arrow is only displayed when more
items are available on the particular side. It indicates that the user has
to scroll to view those items. This arrow can also appear on the left
side.
³
Selected Element: The gray background represents the currently
selected element.
³
Letter A: The letter represents the beginning of the link under test.
³
Letter B: The letter represents the end of the link under test.
Note: An arrow ( ) icon is displayed on the element, if the start and the end of
the link is represented by the same element.
Selected
Element
Diagnostics Icon
Element
Pass/Fail
Splitter ratio
Element
Fail Icon
Diatance Unit
Navigation
Arrow
Element Position
Pass/Fail
not tested
