EXFO FastReporter Data Post-Processing Software - Manual (Page 96)

Working with PMD Files
90 FastReporter
Changing PMD Settings
Changing PMD Settings

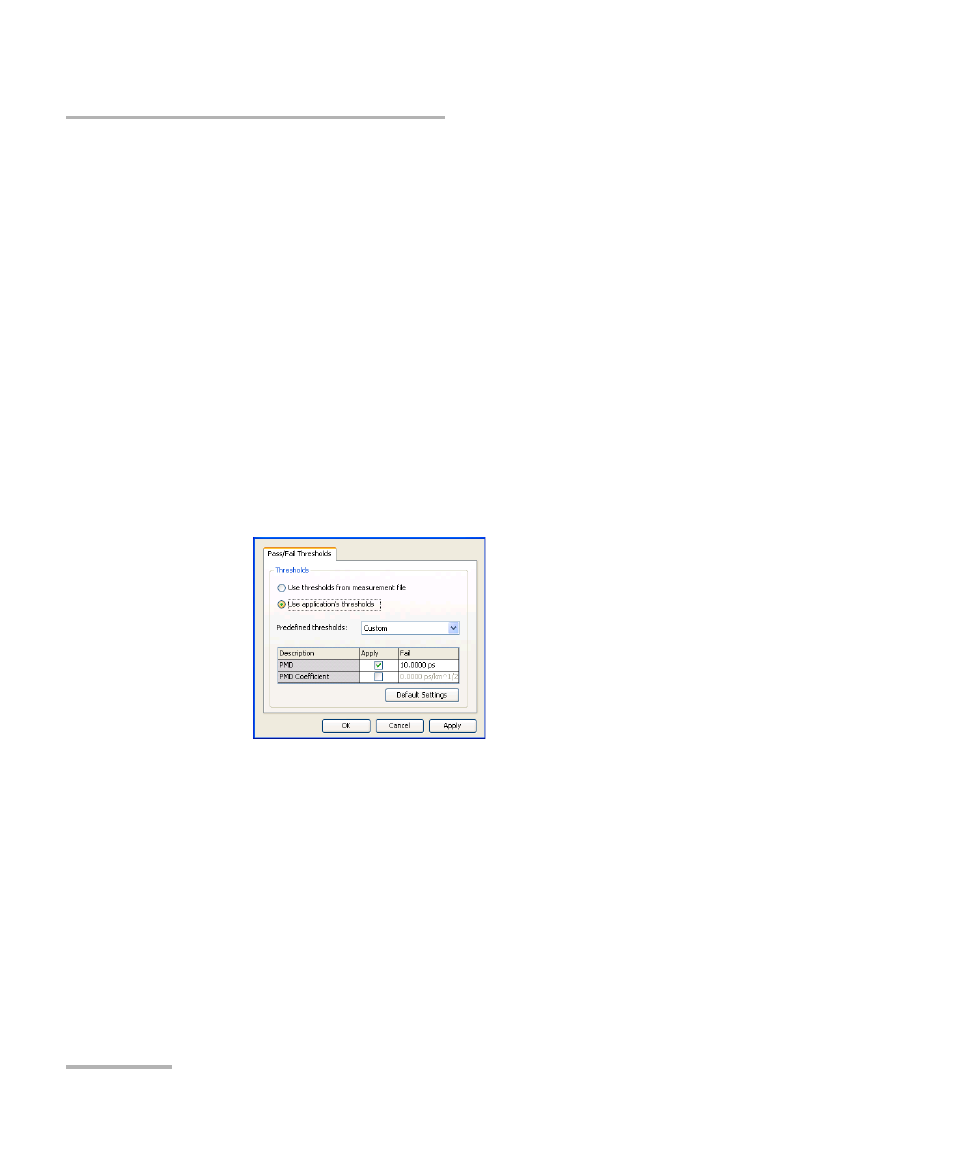

The PMD Options dialog box consists only of the Pass/Fail Thresholds
tab.
To change PMD options:
1. On the Project menu, select PMD Properties.
2. Select the type of threshold to use for your analysis, either from the
measurement file itself or from a list of predetermined thresholds.
³
The threshold from the measurement file is the one that was used
during the actual PMD test. When you select this threshold, you
cannot modify the values in the threshold table.
³
The threshold from the application is a threshold set by
FastReporter, which you can select and modify.
3. Modify the displayed values as needed if you selected to use a
threshold from the application. The Apply option must be enabled for
the values to be active and modifiable.
