Service - 226
JT100/JT100 All Terrain Operator’s Manual
As Needed
CMW
©

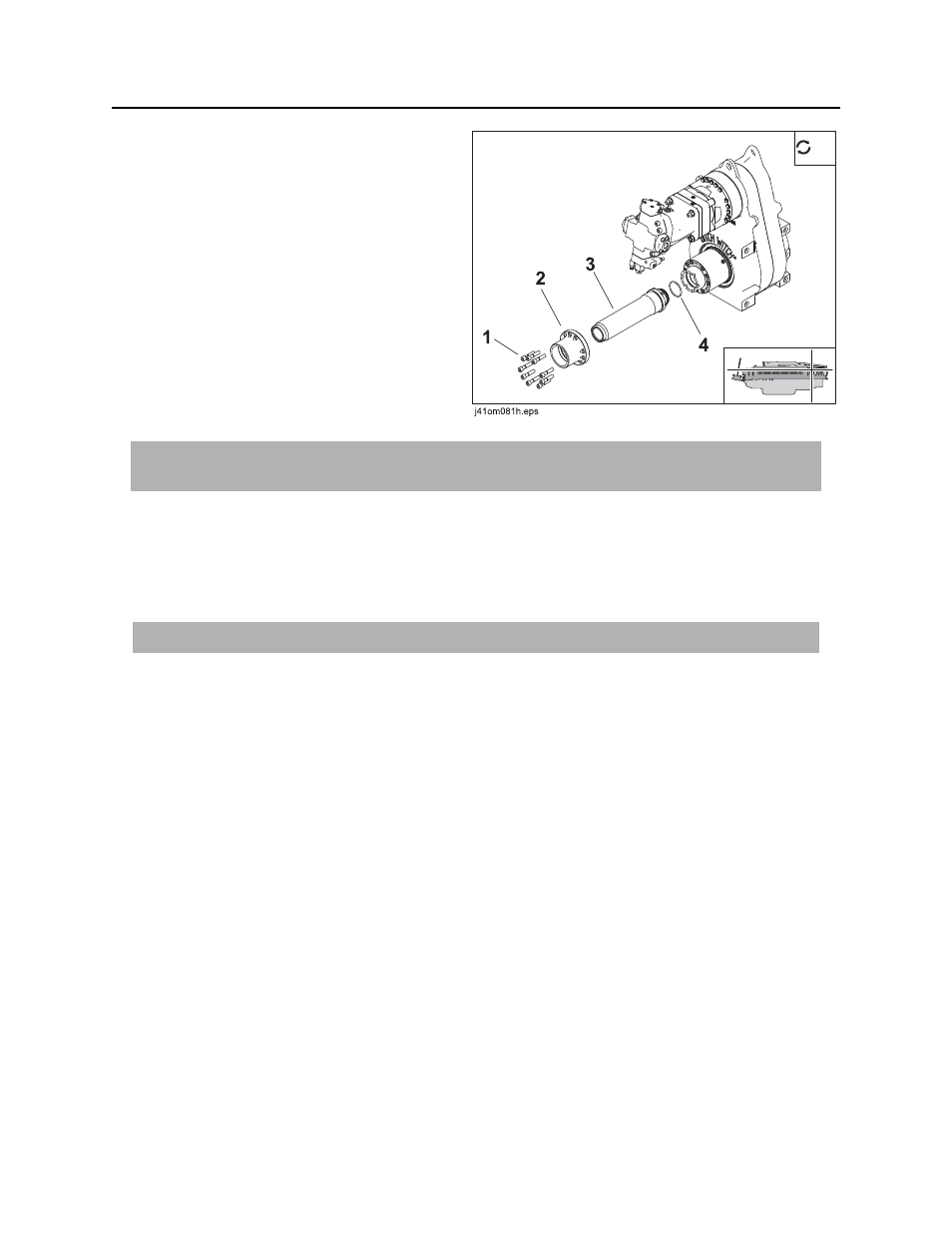

Change Inner Water Swivel (Seal Kit)
Replace inner water swivel (seal kit) as needed.
See your Ditch Witch
®
dealer for replacement
parts.
To replace:
1. Remove SaverLok™ connection. Do not
remove indexing dowels from spindle.
2. Remove hex (6) and spring (7) from drive
shaft.
3. Remove snap ring (5).
4. Remove seal (4) and main body (2).
5. Inspect dowel pin (1). To replace, drive new pin into different hole until top of pin is flush with shaft
larger diameter.
6. Slide new main body (1) onto drive shaft. Check o-ring (3) and replace if needed.
7. Lightly coat seal (3) with THF and install onto main body.
8. Slide snap ring (4) onto main body.
9. Compress seal kit until snap ring is properly seated.
10. Install hex (5) and spring (6).
11. Install SaverLok. See page 219.
IMPORTANT: Use care when handling main body to avoid seal contamination. Do not allow
grease to touch inner seals during installation.
NOTICE: Do not run seals without lubrication. Damage will occur.
