Driver/Loader Attachment
CMW
©

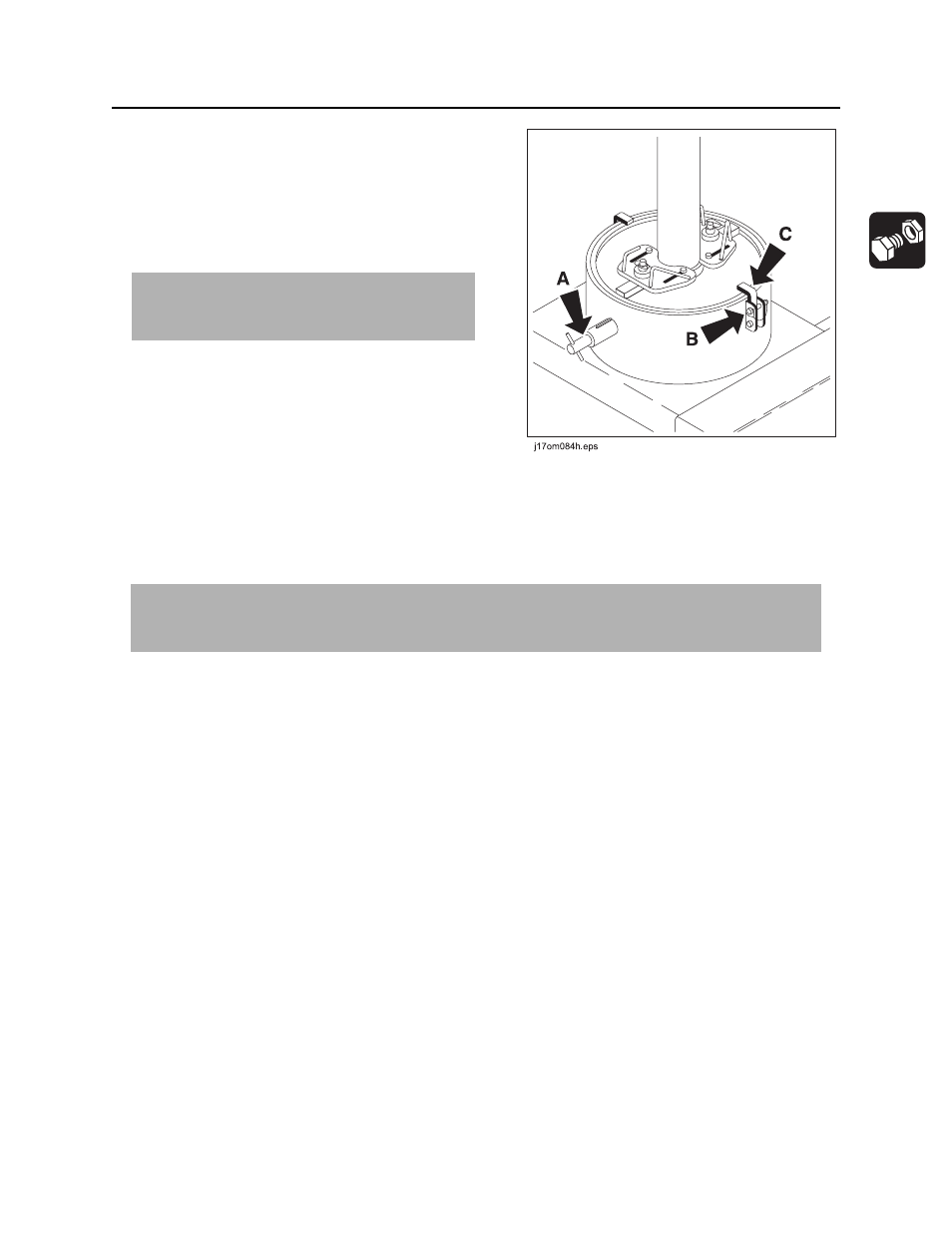

5. Using loader/driver, raise auger shaft slightly and
release spring loaded pin (A) on side of auger cap.
6. If pin will not release, pull snapper pin (B) and
release cap retainer (C).
7. Use loader/driver rotation and boom controls to
slowly drive auger into ground.
8. If auger shaft does not drive all the way into ground,
use nut driver to tighten nut against auger cap.
9. Detach anchor driver from auger shaft.
10. Lower nut driver onto auger shaft and over nut.
11. Attach anchor driver to nut driver.
12. Use loader/driver rotation and boom controls to slowly rotate nut driver until nut is securely tightened
against auger cap.
13. Detach anchor driver from auger shaft or nut driver and raise loader/driver before drilling.
IMPORTANT: Adjust outer boom while driving
auger so that auger shaft maintains 90° angle
with ground.
IMPORTANT: Ensure that the loader/driver is not exerting up pressure or down pressure on auger
shaft before detaching anchor driver. Excess pressure can cause anchor driver to jerk up suddenly
when detached.
