Systems and Equipment - 142
JT100/JT100 All Terrain Operator’s Manual
Driver/Loader Attachment
CMW
©
Install Pipe Box

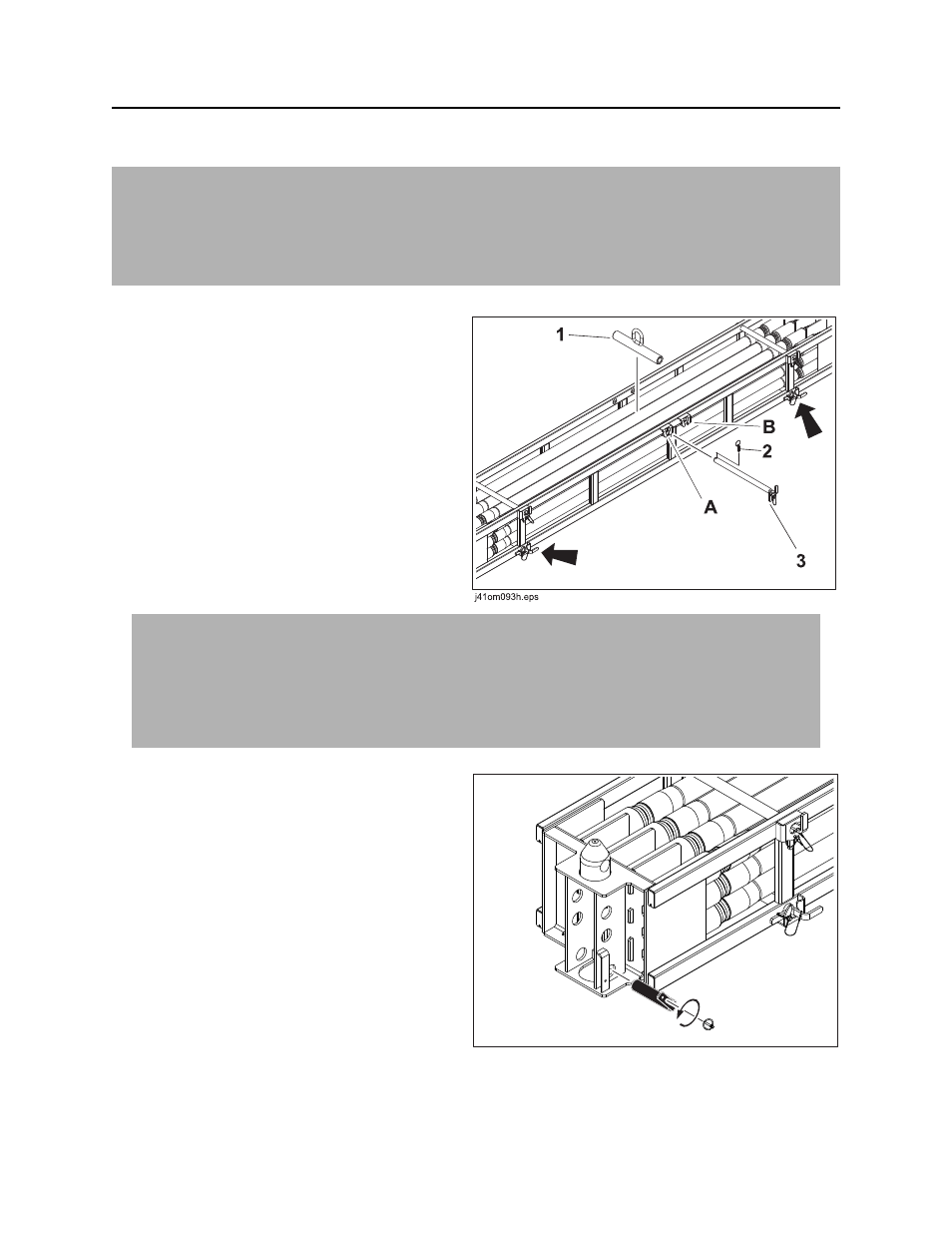

1. Install pipe box lift mount (1) with pipe box pin
(3). Secure with lynch pin (2). For AT box,
ensure lift mount is locked in the correct
position.
• Position A is for full pipe box.
• Position B is for empty pipe box.
2. Attach loader/driver clevis to pipe box lift
mount.
3. Attach chains to vertical slots in each end of
pipe box. Station one person at each end of
box. Use chains to guide box into position.
4. Use loader/driver extension and lift controls to
lift and move box.
5. Insert pins (shown) into ends of box and lock
AT pins into position.
6. Detach loader/driver clevis and chains before
drilling.
7. Lift pipes and remove pins under pipe at each
end of pipe box.
NOTICE:
• Lift only one pipe box at a time.
• Before lifting, always inspect all lifting accessories, including pins, for cracks, bending or other signs
of wear. If worn or damaged, do not use. See your Ditch Witch
®
dealer for replacement parts.
NOTICE:
• When lifting a heavy load, do not operate loader/driver extension and lift controls
simultaneously. Operate one at a time and at very slow speeds.
• When lifting fully-loaded AT pipe box, remember that its weight will limit loader/driver reach.
See page 18 for load chart capacities and “All Terrain Pipe” on page 232 for pipe box weight.
j31om003t.eps
