JT30 /JT30 All Terrain Operator’s Manual
Controls - 46
Right Control Console
CMW

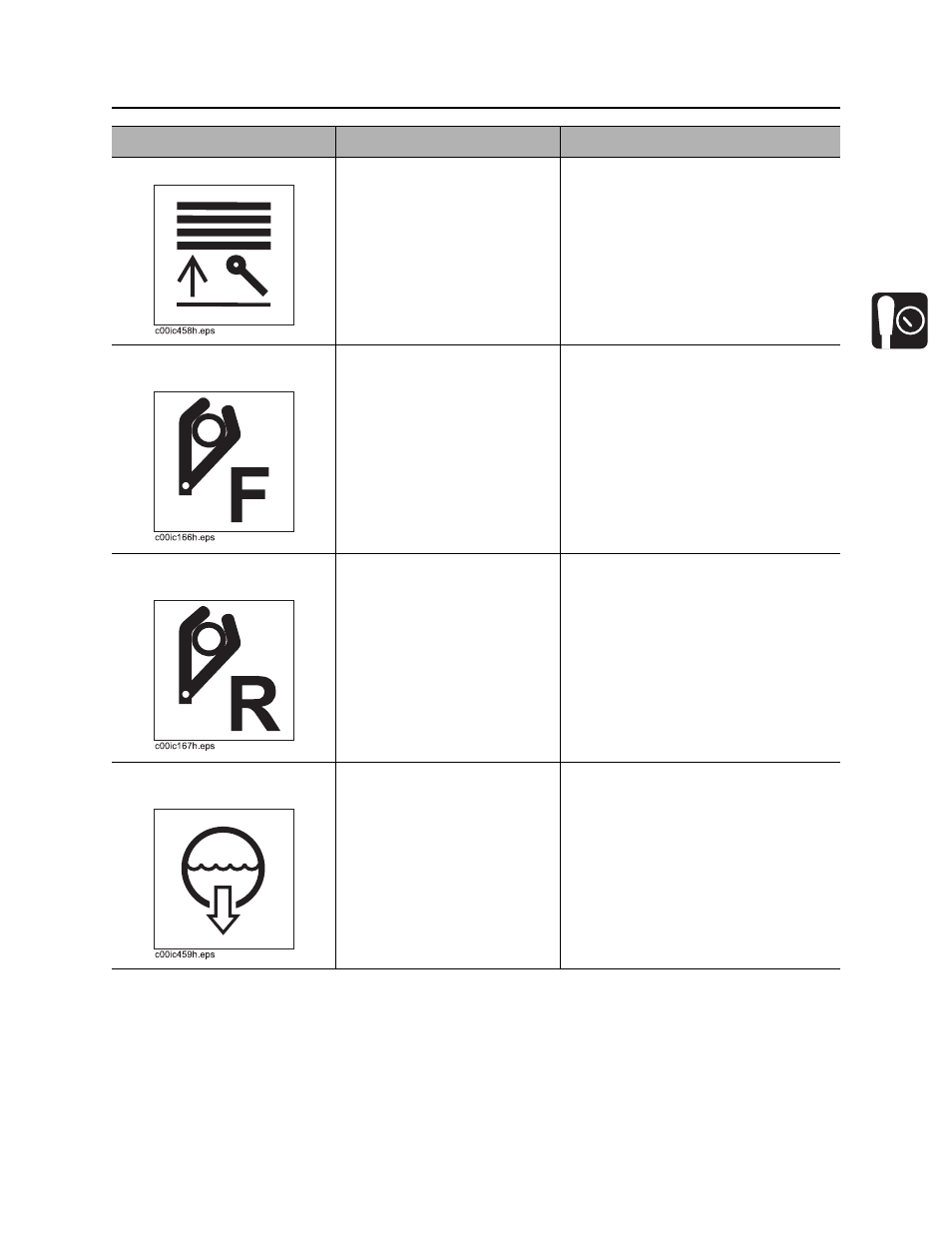

9. Pipe lift status indicator If pipe lifter is lifted fully and
lift pressure switch is
engaged, light should be on.
If pipe lift pressure switch is
not engaged, light should be
off.
10. Front pipe box status
indicator
If active pipe column contains
pipe, light should be on.
If active pipe column does not
contain pipe, light should be
off.
IMPORTANT:
• Check pipe box status lights to
see when active column of pipe
box is empty. See “Shift Pipe Box”
on page 159.
• One light on and one light off
indicates a jammed pipe. See
“Correct Misaligned or Jammed
Pipe” on page 160.
11. Rear pipe box status
indicator
If active pipe column contains
pipe, light should be on.
If active pipe column does not
contain pipe, light should be
off.
IMPORTANT:
• Check pipe box status lights to
see when active column of pipe
box is empty. See “Shift Pipe Box”
on page 159.
• One light on and one light off
indicates a jammed pipe. See
“Correct Misaligned or Jammed
Pipe” on page 160.
12. Fluid pump status
indicator
If fluid pump is on, light
should be on.
If fluid pump is off, light
should be off.
NOTICE: Do not run fluid pump
without fluid.
Item Description Notes
