Systems and Equipment - 151
JT30 /JT30 All Terrain Operator’s Manual

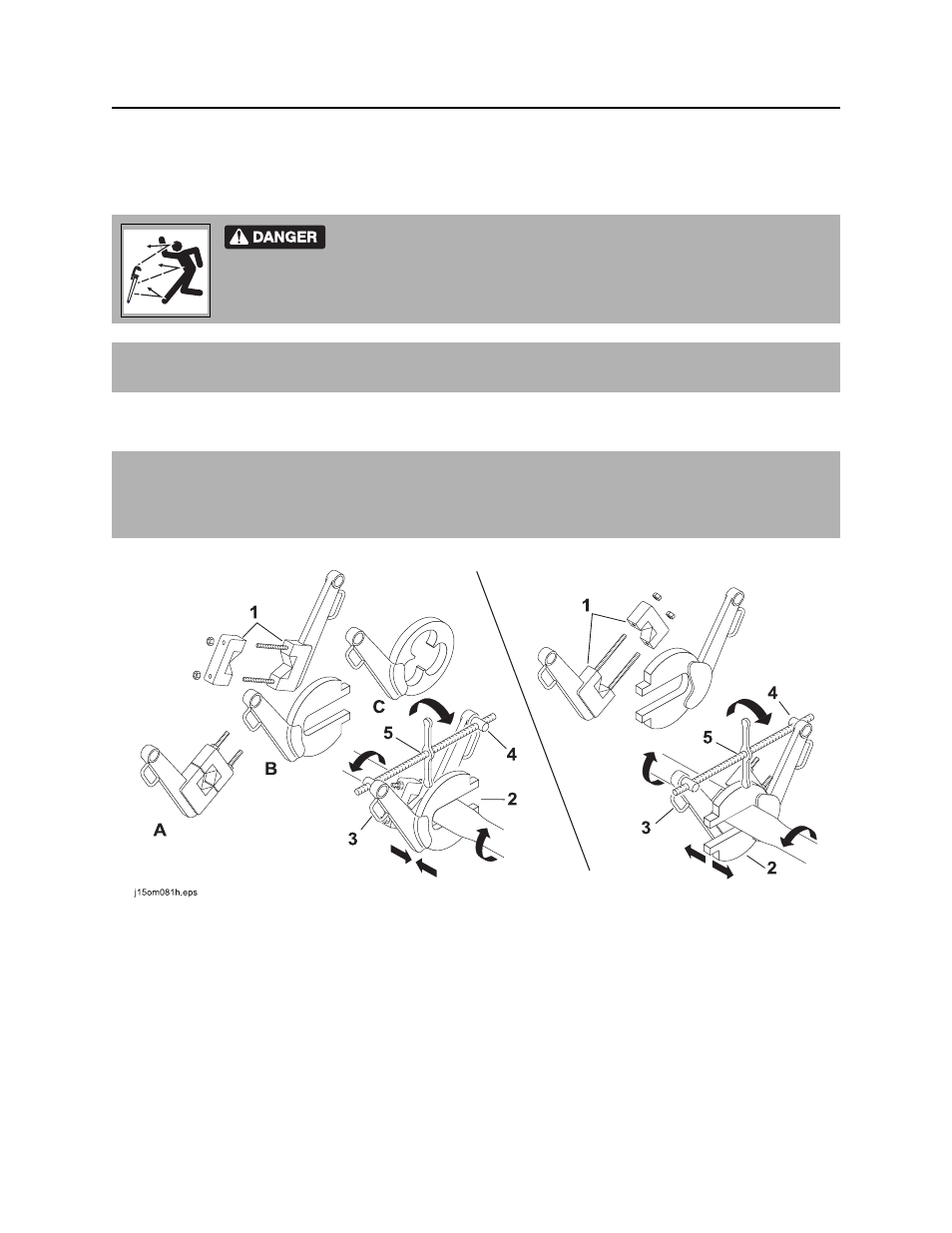

Quick Wrench
CMW
Quick Wrench
To attach or remove downhole tools, use quick wrench to join or break the joint.
Attach quick wrench in either the join or break position.
• Unbolt vise (1) and place jaws around pipe.
• Bolt jaws of vise together.
• Place jaw (2) around pipe, transition sub, or downhole tool.
• Pin handles (3) to wrench jaws. Be sure handles are both up.
• Attach pivot nuts (4) to wrench handles so that screw drive handle (5) is over joint.
Moving tools will kill or injure. Shut off drill string power when anyone can
be struck by moving or thrown tools. Never use pipe wrenches on drill string.
NOTICE: Apply TJC to threads and hand-tighten joint before attaching quick wrench components to
tighten joint.
IMPORTANT: Use standard jaws (A) for drill pipe and most downhole tools. Use jaws (B) for adapters,
subs, or other tools that have flats. Use bit block (C) for the Rockmaster tool.
Note: Most tools with flats can be joined or broken with vise (standard jaw) as well as flats.
Join Break
