Conduct a Bore - 125
JT30 /JT30 All Terrain Operator’s Manual
Remove Pipe
CMW
6. Break front joint.
7. Break rear joint.
Manual Pipeloader Controls Automated Pipeloader Control
• Rotate spindle counterclockwise to
separate pipe.
• Continue to rotate until joint is fully
separated.
• Rotate spindle counterclockwise to
separate pipe.
• Continue to rotate until joint is fully
separated.
Manual Pipeloader Controls Automated Pipeloader Control
• Close rear wrench.
• Rotate spindle counterclockwise until joint
is loosened at saver sub. Do not fully
unthread joint.
• Open rear wrench.

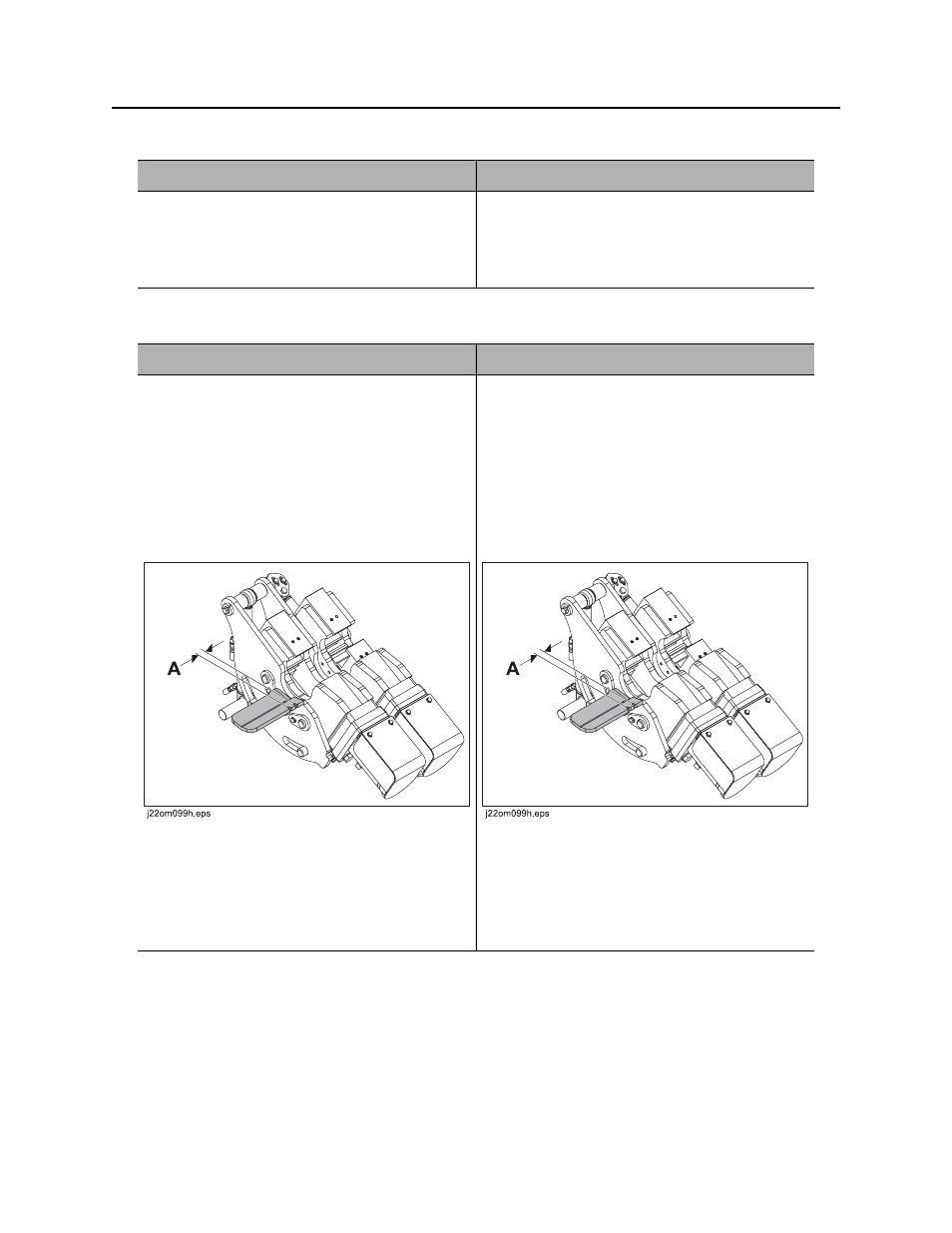

• Move carriage back until front end of pipe
is between the two markers on the pipe
guide (A).
• Close grippers.
• Rotate spindle counterclockwise until
saver sub is separated from pipe.
• Move carriage to back of frame until rear
stop indicator is lit in right console.
• Close rear wrench.
• Rotate spindle counterclockwise until joint
is loosened at saver sub. Do not fully
unthread joint.
• Open rear wrench.
• Move carriage back until front end of pipe
is between the two markers on the pipe
guide (A).
• Press RESUME. Grippers close.
• Rotate spindle counterclockwise until
saver sub is separated from pipe.
• Move carriage to back of frame until rear
stop indicator is lit in right console.
