Controls - 45
JT30 /JT30 All Terrain Operator’s Manual

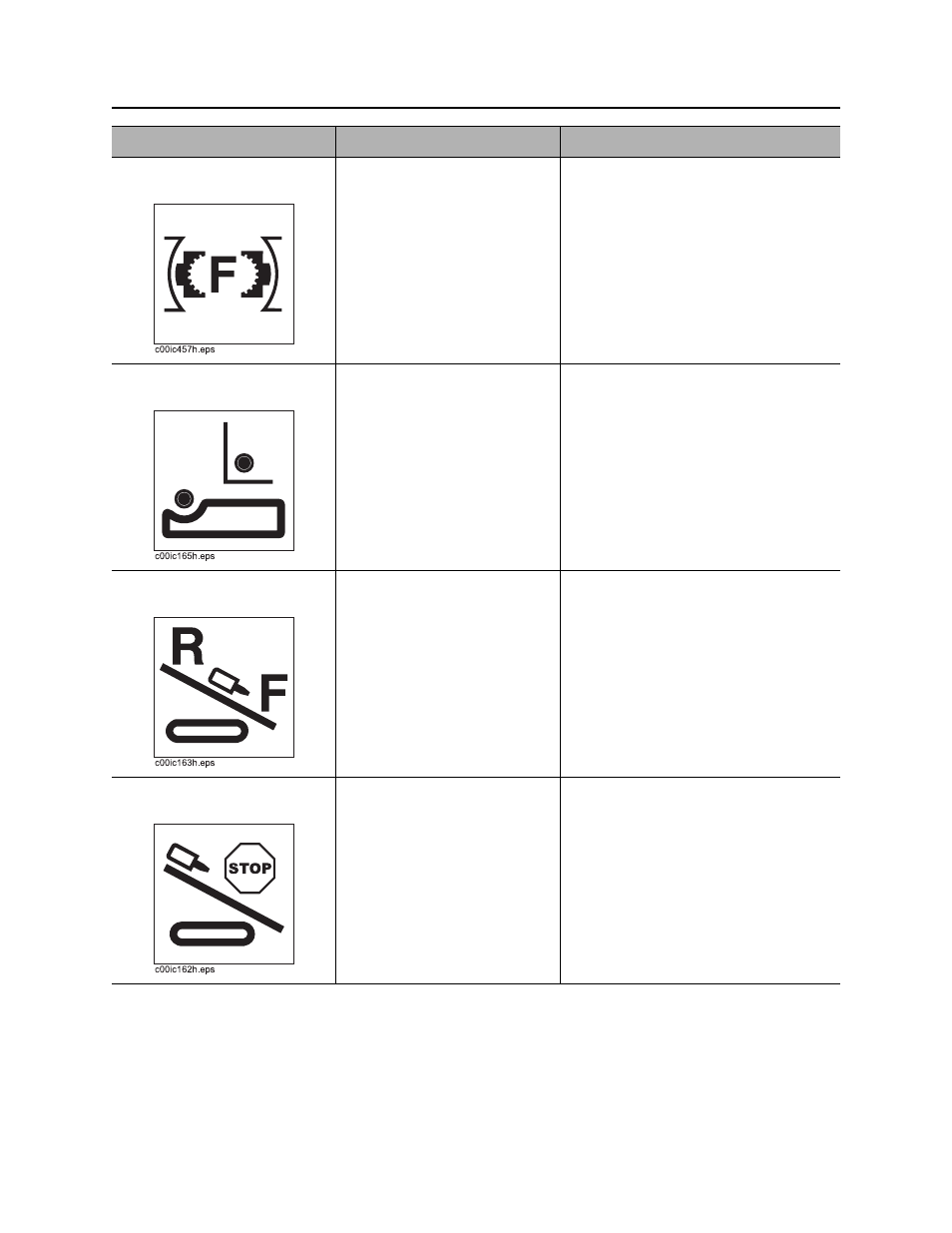

Right Control Console
CMW
5. Front wrench status
indicator If front wrench is closed, light
should be on.
If front wrench is open, light
should be off.
6. Shuttle home status
indicator If shuttle is retracted, light
should be on.
If shuttle is not completely
retracted, light should be off.
7. Carriage home status
indicator If carriage is in the home
zone at either end of drill
frame, light should be on.
If carriage is not in the home
zone at either end of drill
frame, light should be off.
8. Rear stop status
indicator If carriage is at very back of
drill frame, light should be on.
If carriage is away from very
back of drill frame, light
should be off.
IMPORTANT: The stop sensor is
used to determine when to stop
carriage when backing up.
Item Description Notes
