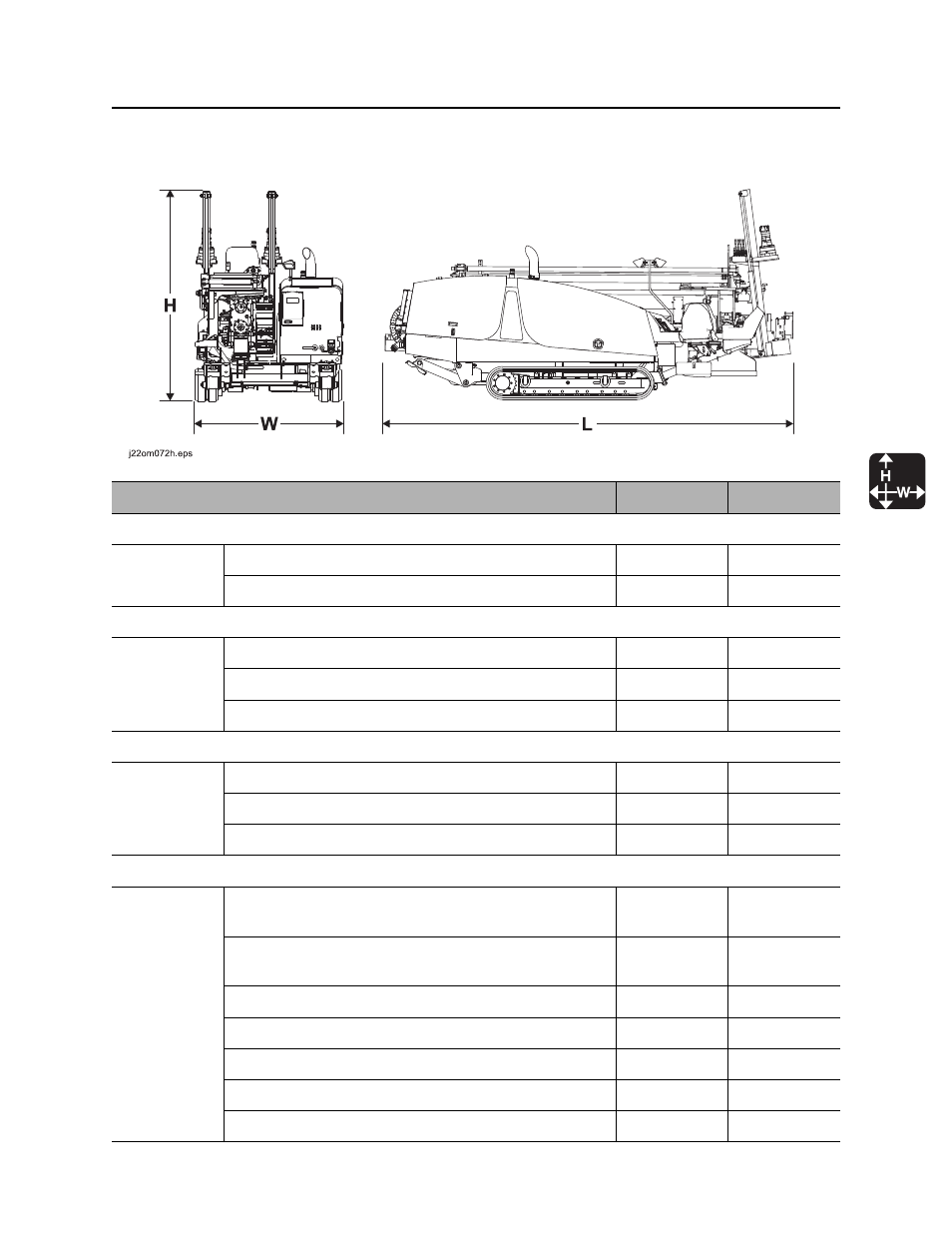

JT30 /JT30 All Terrain Operator’s Manual
Specifications - 234
CMW
Specifications
Dimensions
U.S.
Metric
L, overall machine length
driving (per SAE J2022)
220 in
5.59 m
transport (per SAE J2022)
221 in
5.61 m
W, overall machine width
base width (per SAE J2022)
80 in
2.03 m
width with cab (per SAE J2022)
89 in
2.26 m
width with cab, support removed (per SAE J2022)
88 in
2.23
H, overall machine height
driving (per SAE J2022)
119 in
3.02 m
JT/AT large box, transport (per SAE J2022)
94 in
2.39 m
JT/AT small box, transport (per SAE J2022)
92 in
2.34 m
Operating mass
JT unit (T4i base unit, no pipe), w/anchors and all
fluids at 100%
17,075 lb
7 750 kg
AT unit (T4i base unit, no pipe, w/anchors and all fluids
at 100%
17,655 lb
8 010 kg
Add JT drill pipe, full box and 2 pipes in drill frame
5,680 lb
2580 kg
Add AT drill pipe, full box and 2 pipes in drill frame
5,000 lb
2270 kg
Add cobble drill pipe, full box and 2 pipes in drill frame
5,690 lb
2580 kg
Add cab option, heat and air
900 lb
410 kg
Deduct Tier 3 engine option
105 lb
50 kg
