Dolphin® 9500 Series User’s Guide
3 - 9
Bottom Panel Features

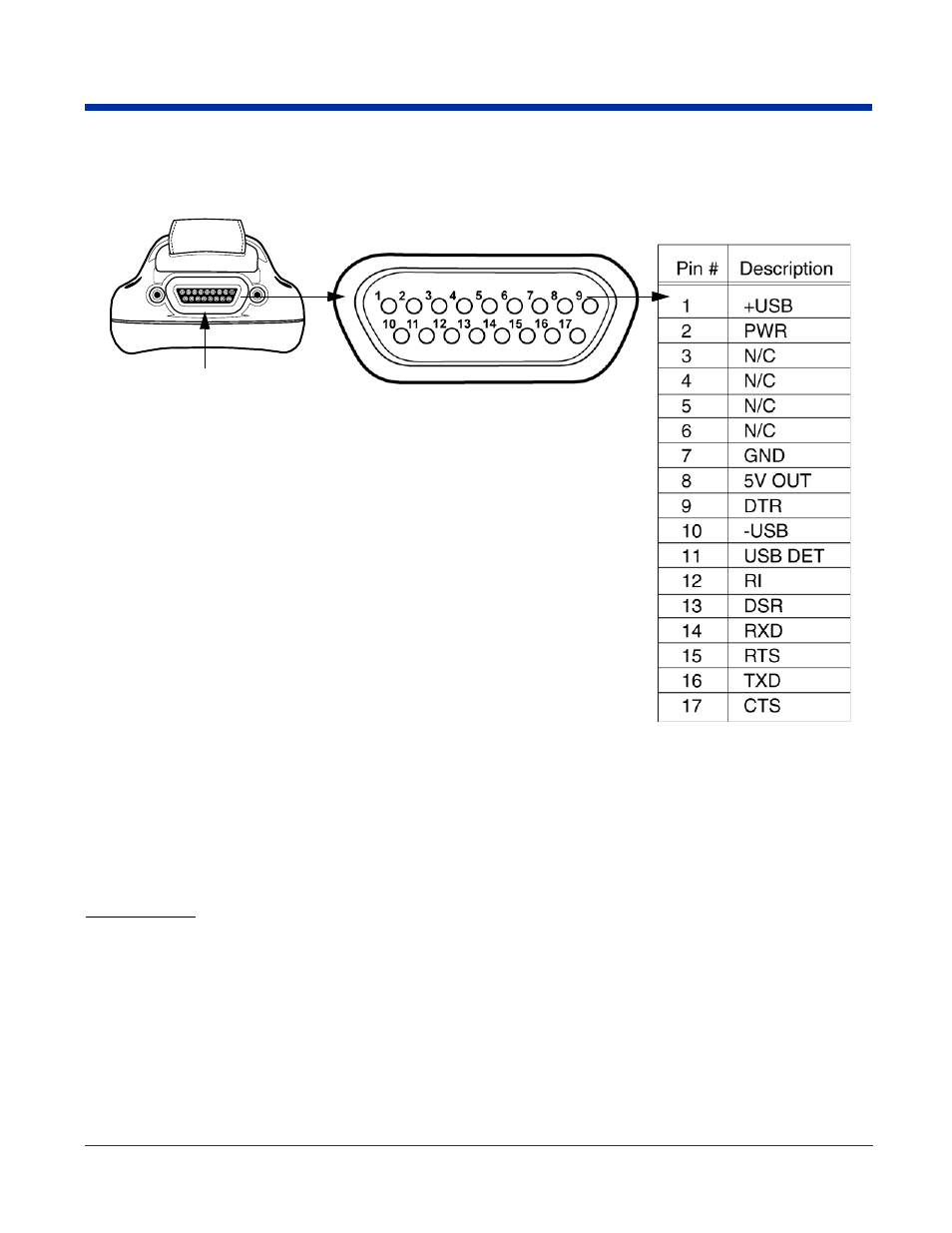

Mechanical Connector
The bottom panel features a custom, industrial-grade connector with 17 pins. When seated in a Dolphin 9500 Series peripheral,
the terminal is powered, the main battery charged, and communication occurs via this connector. All Dolphin 9500 Series
peripherals are designed to work exclusively with this connector.
The 17-pin connector can communicate with Dolphin 9500 Series peripherals via RS-232 or USB. For RS-232, the maximum
communication speed is 115 Kbps with seven baud rate settings. For USB, the communication speed is up to 12 Mbps. If the
peripheral unit is connected to a PC, this connector also transmits data.
Powering Out
The mechanical connector also provides power out (to peripheral devices) 5V at 500mA. This means that, with the proper Hand
Held Products’ cable, the terminal can power another device. By default, power out is disabled. To enable power out, alter the
registry as follows:
[HKEY_LOCAL_MACHINE\Drivers\BuiltIn\Serial4]
Conn5Venable=1
Dolphin 9501 and Dolphin 9551
Mechanical Connector
Hand Strap Clip
Note: Signals referenced are for a DTE device.
