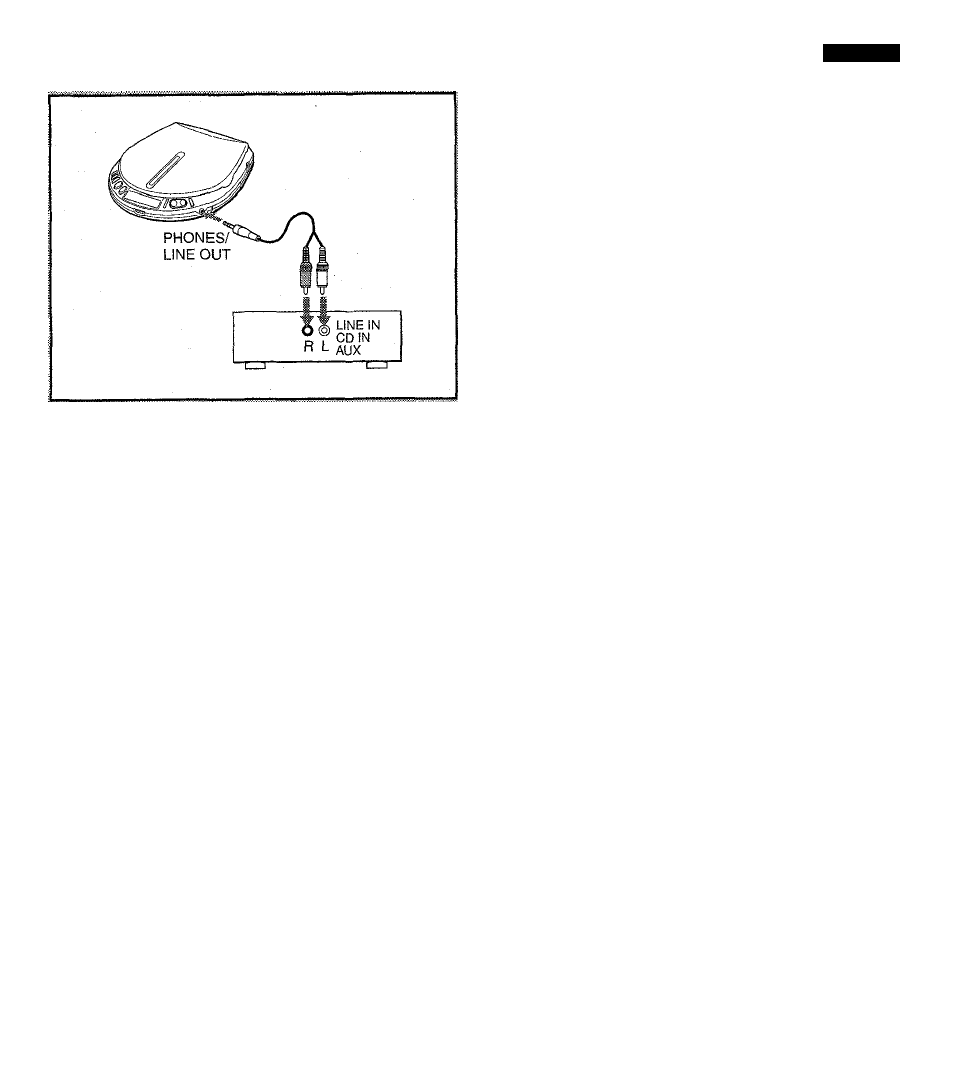

CONNECTING AN EXTERNAL UNIT

English

Use a commercially available connection cord which has
a 3.50 stereo mini-plug at one end and two plugs at the
other end.

connect the stereo mini-plug to the PHONES/LINE OUT

jack of the unit and connect the phono plugs to the analog

input terminals of the external unit.

Note

• Turn off the power of both units before connection.
• DO NOT connect to the PHONO inputs of an amplifier

(with a built-in phonoequalizer-amplifier).

• Adjust the volume and DSL on this unit.
