WL tHt
If machine is used continuously, it
should be oiled daily. If moderately
used, an occasional oiling is sufficient.
Preparation: Remove face plate. Draw
bed slide plate to the left. Remove dust
and lint (see instructions on page 3 8).
Swing rear cover plate up toward hand
wheel.

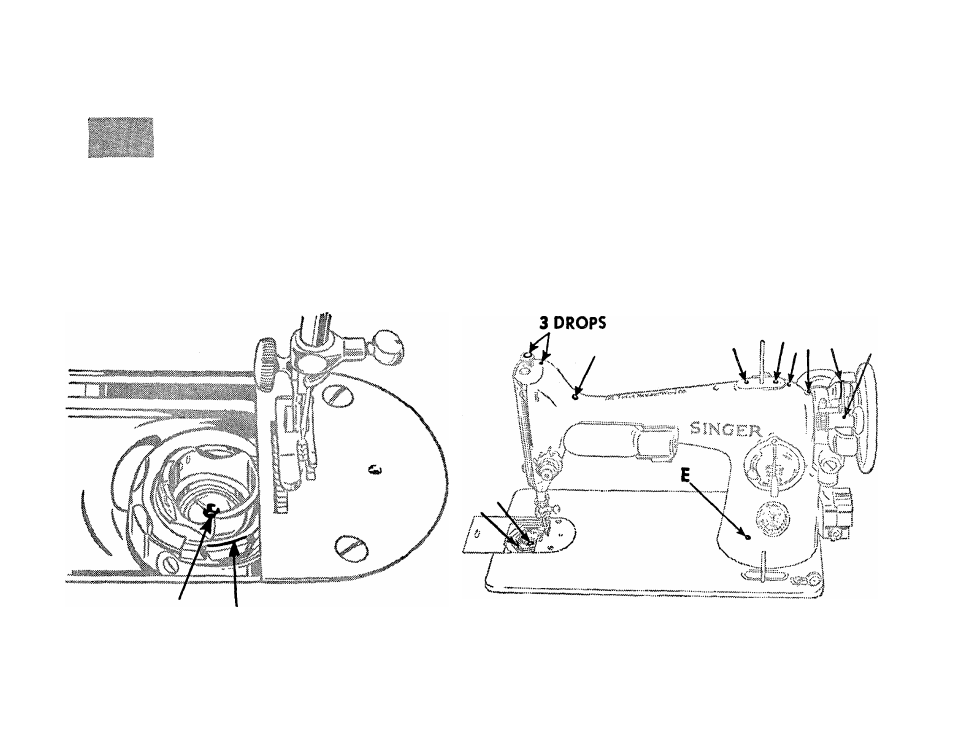

Fig. 31. Front Views Showing Oiling Points
33
