Hold end of needle thread with left hand
and turn hand wheel over toward you

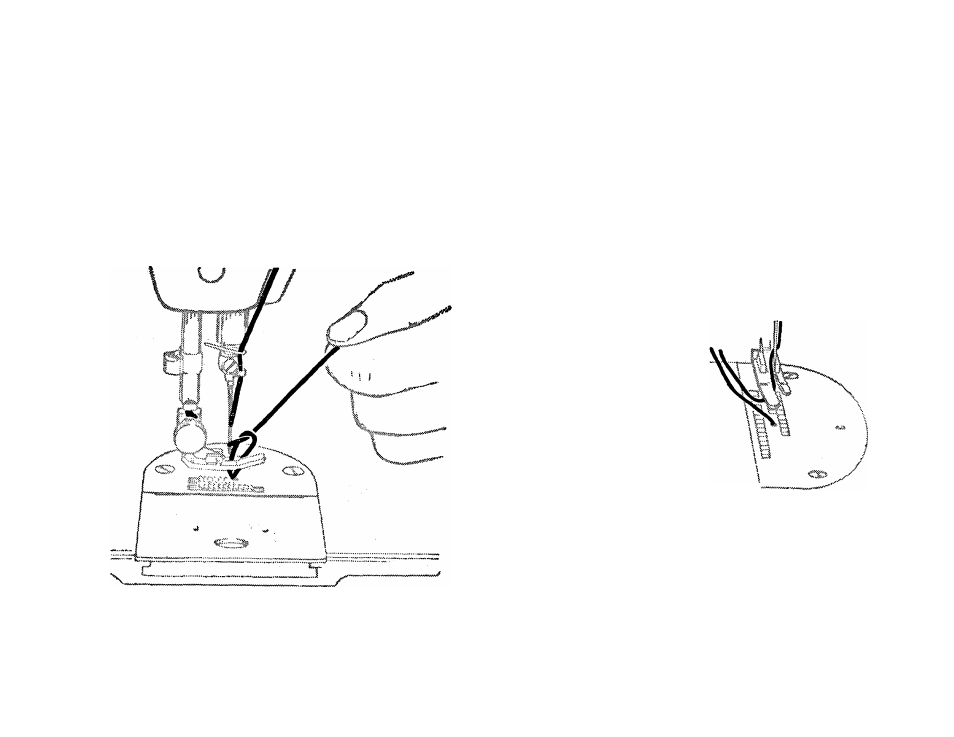

Fig. 17. Drawing Up Bobbin Thread
until needle goes down and up again
and thread take-up lever 5, Fig. 1 9 is
at its highest point. Pull up needle
thread and bobbin thread will come
with it, as shown in Fig. 17.
Lay both threads
back under presser
foot
diagonally
across the feed, as
shown in Fig. 18, to
the right or left, de
pending upon which
side of needle the
material is to be lo
cated, so that when presser foot is low
ered, threads will be firmly held between
the feed and the presser foot.
Fig. 18
16
