Top Flite TOPA0305 Part 2 User Manual

Page 32

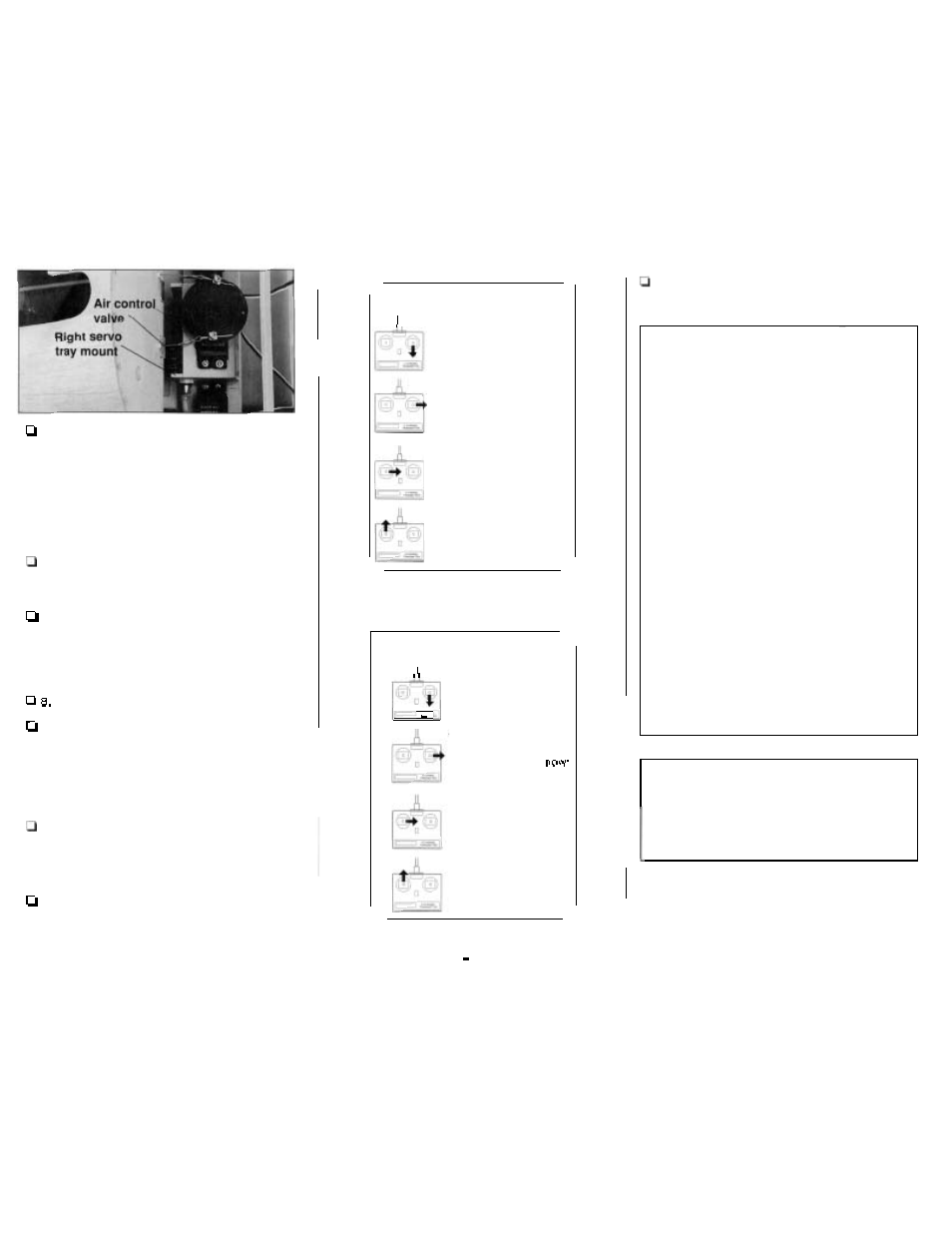

Mount your air control

valve

and servo. On

our prototype we mounted the air control valve to
the right nose steering servo tray. Mount yours the
same way or find an alternate location. Mount the
servo to two rails made from leftover 1/4"

3/8"

basswood.

Note: It will be easier to connect your

air lines to the air control valve

before you mount

the air control valve in the airplane.

6. Mount your on/off switch and charge jack in a

location where it will not get covered with engine
exhaust residue.

7. Connect your battery pack, receiver, switch and

servos. Connect the air lines to your air tank with a

"T"

fitting connected to your air fill valve. If you are

installing the Cabin Interior, route the air lines and

servo cords through notches in the formers.

Recheck the C.G.

If you haven't already centered your servos,

take the servo arms off all the servos and turn on
your transmitter and receiver (this is most important
for the flaps). Center the trims and put the servo

arms back on your servos and secure them with

the screw.

10. While you're at it, double-check all the

servos and make the servo arms are secured and
make sure all the clevises have a

silicone

retainers.

11. Make sure the control surfaces move in the

proper direction as illustrated in the following
sketches.

4-CHANNEL RADIO SETUP

(STANDARD MODE

V-TAIL SETUP)

LEFT RUDDERVATOR MOVES UP
RIGHT RUDDERVATOR MOVES UP

RIGHT AILERON MOVES UP
LEFT AILERON MOVES DOWN

LEFT RUDDERVATOR MOVES UP
RIGHT RUDDERVATOR MOVES DOWN

NOSE WHEEL TURNS RIGHT

CARBURETOR WIDE OPEN

4-CHANNEL RADIO

SETUP

(STANDARD

MODE

ELEVATOR MOVES UP

RIGHT AILERON MOVES UP

LEFT AILERON MOVES

RUDDER MOVES RIGHT
NOSE WHEEL TURNS RIGHT

CARBURETOR WIDE OPEN

12. Adjust your pushrod hookups and set up

your radio to provide the control surface

movements as follows.

V-TAIL

CONTROL SURFACE THROWS

These control surface throws are for the

V-tail

model only. We recommend the following control
surface throws:

NOTE: Throws are measured at the widest part

of the control surface.

High Rate

Low Rate

15/16" down

5/8" down

ELEVATOR: 15/16" up

518" up

AILERONS:

3/4" up

1/2" up

3/4" down

1/2" down

FLAPS:

Takeoff

Landing

1" down

2" down

Right Left
Elevator Elevator

RIGHT RUDDER:*

1/4" down

1/4" up

1/2" down

LEFT RUDDER:*

3/4"up

*This is the amount

of elevator throw with ruddet

input only.

Caution: Use care when you assemble
your Bonanza at the flying field. DO NOT

lay the fuselage upside down resting on

the cabin top, as this could cause the
windows to loosen.
