Page 20: With headphones

20
9.5. monitoring with Headphones
Press the key for Unit 1 or Unit 2 to select the tuner unit to monitor.
Pressing both keys allows mixed audio from both units to be heard.

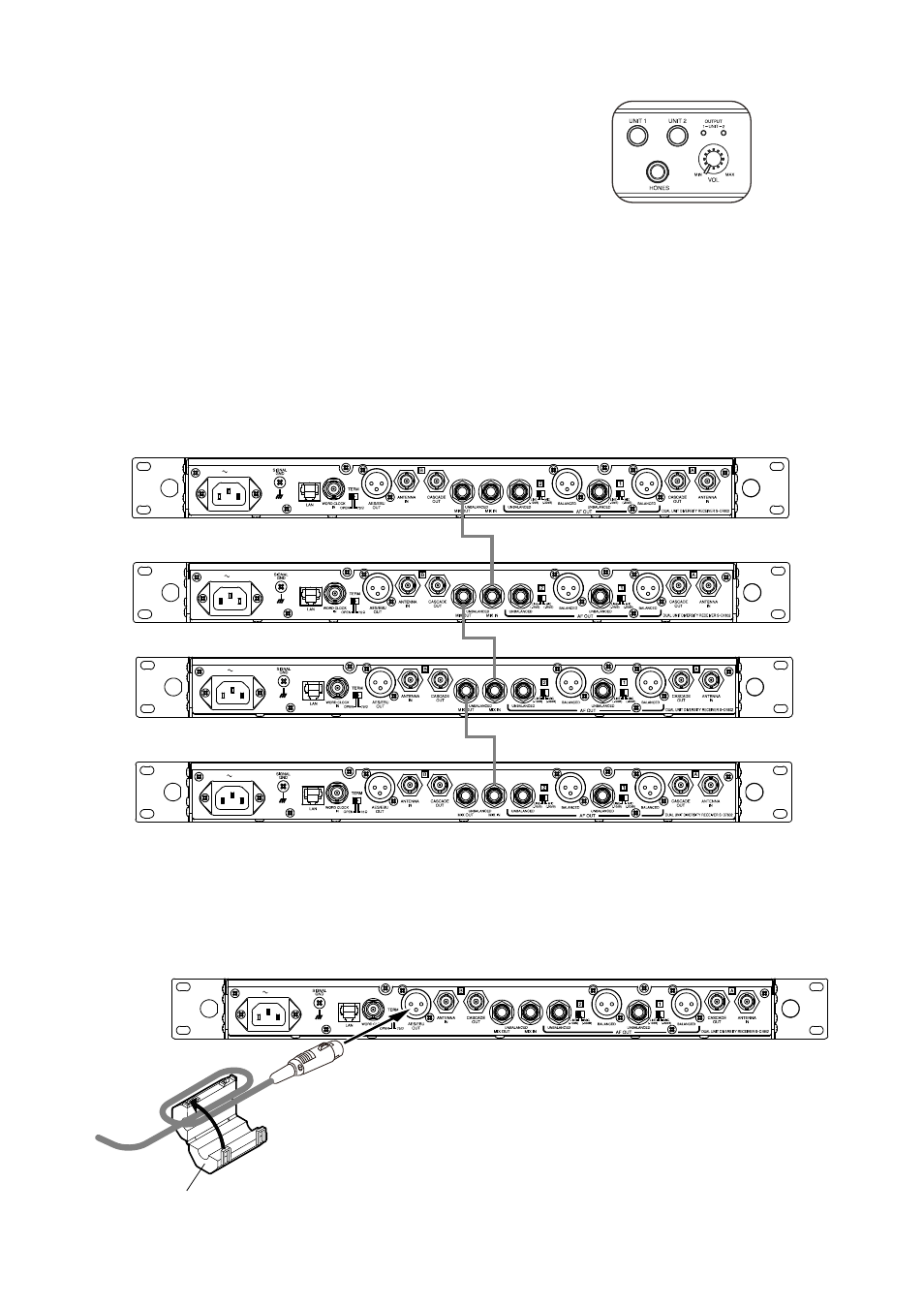

9.5.1. Headphones Cascade Connections
Audio output from multiple receivers can be monitored from a single headphones jack at the last-connected
receiver by connecting receiver mixing inputs and outputs in cascade. Audio from the tuner units selected with
the unit selector keys are mixed together and output to the headphones jack.
Audio output from any selected tuner unit can be heard through one headphones jack.
Receiver 1 can only monitor audio received by Receiver 1, while Receiver 2 can monitor audio received by both
Receivers 1 and 2. Similarly, Receiver 3 can monitor audio received by Receivers 1 through 3, and Receiver 4
can monitor audio received by Receivers 1 through 4
[Rear Panel Side Connection]
100 – 240V 500mA 50/60Hz
100 – 240V 500mA 50/60Hz
100 – 240V 500mA 50/60Hz
100 – 240V 500mA 50/60Hz
Receiver 1
Receiver 2
Receiver 3
Receiver 4
9.6. Ferrite Cable Clamp Attachment
To reduce electromagnetic noise, place the supplied ferrite clamp over digital output cable when making a cable
connection to the AES/EBU output connector.
Ferrite clamp
(accessory)
Loop the cable one turn.
100 – 240V 500mA 50/60Hz
