LH 665 VRT O PERATORS MANUAL DGPS
LH A GRO 9.5
DGPS ENCODEMENT
There are some things that must be set up before the LH 665 can log positional
data to a data card. These settings are the same for all operating modes and we
refer to the DATA CARD chapter in this operator’s manual.
GPS SETUP
If an ADD-ON GPS model 3000, 3050 or 3100 is fitted there are some
encodements needed for correct operation. A description of these encodements
follows:

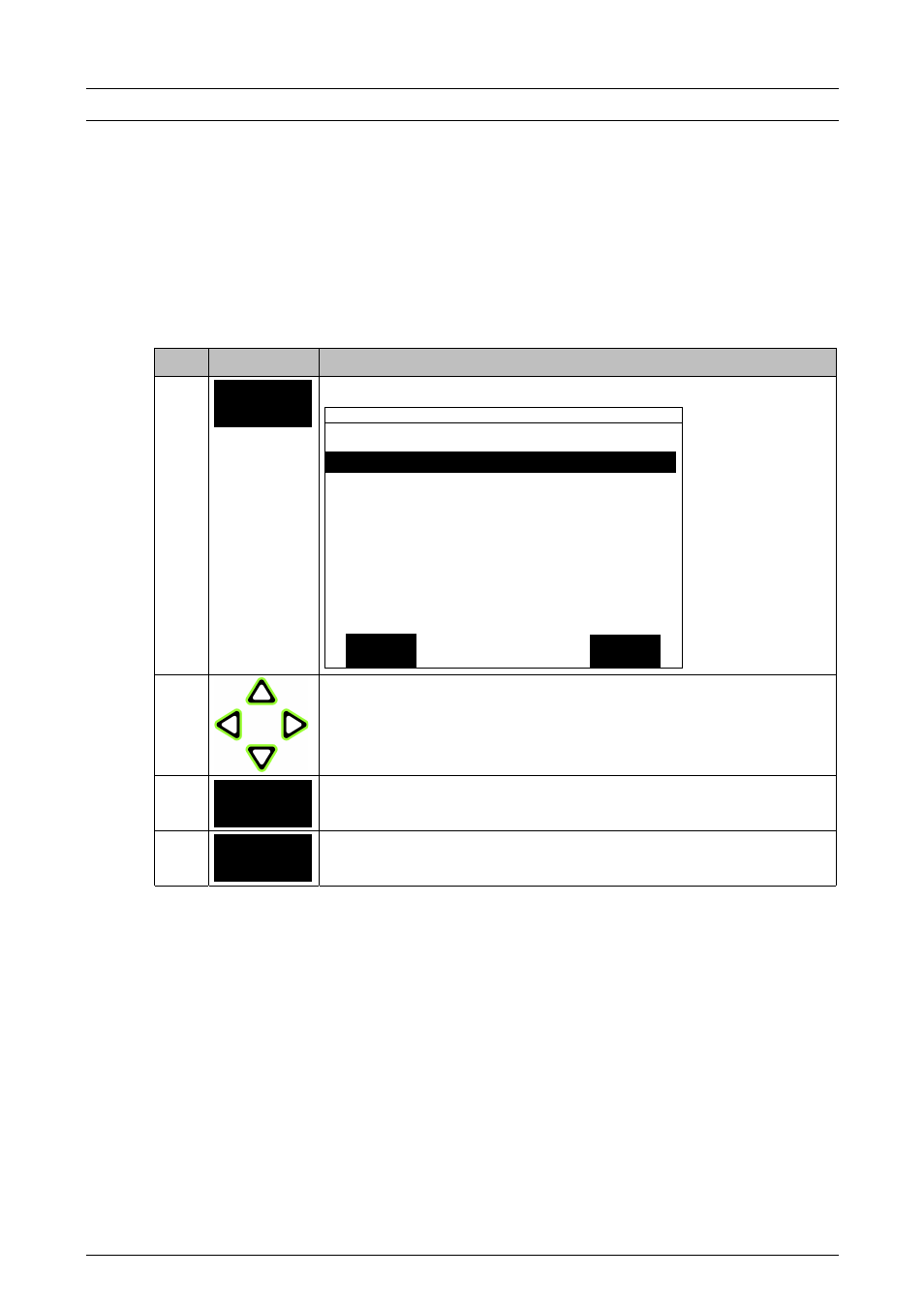

Step Key Procedure
1
GPS
Press the GPS key and this screen is displayed:
GPS SETUP
NMEA MESSAGE
GPS/PORT CONFIGURATION
BEACON DIFFERENTIAL
SATELLITE DIFFERENTIAL
LIGHTBAR
GUIDANCE
EXIT EDIT
2 Highlight the setting to be changed using the ARROW
UP/DOWN keys.
3
EDIT
Press the EDIT key when the required menu is selected.
4
EXIT
When all GPS encodements are finished, press the EXIT key
NMEA MESSAGE
The ADD-ON GPS module uses the Trimble TSIP protocol for transmitting
positional data to the LH 665. This means that NMEA strings are not used and are
not shown under RAW-GPS diagnostics.
GPS/PORT CONFIGURATION
It is not necessary at present to change any of these settings and we recommend
therefore that no encodements take place.
