SKE-Series Voice Evacuation System Installation/Operation Manual
8-4
151267
8.2.2
Class B (Style Y) Wiring to the SKE-V70

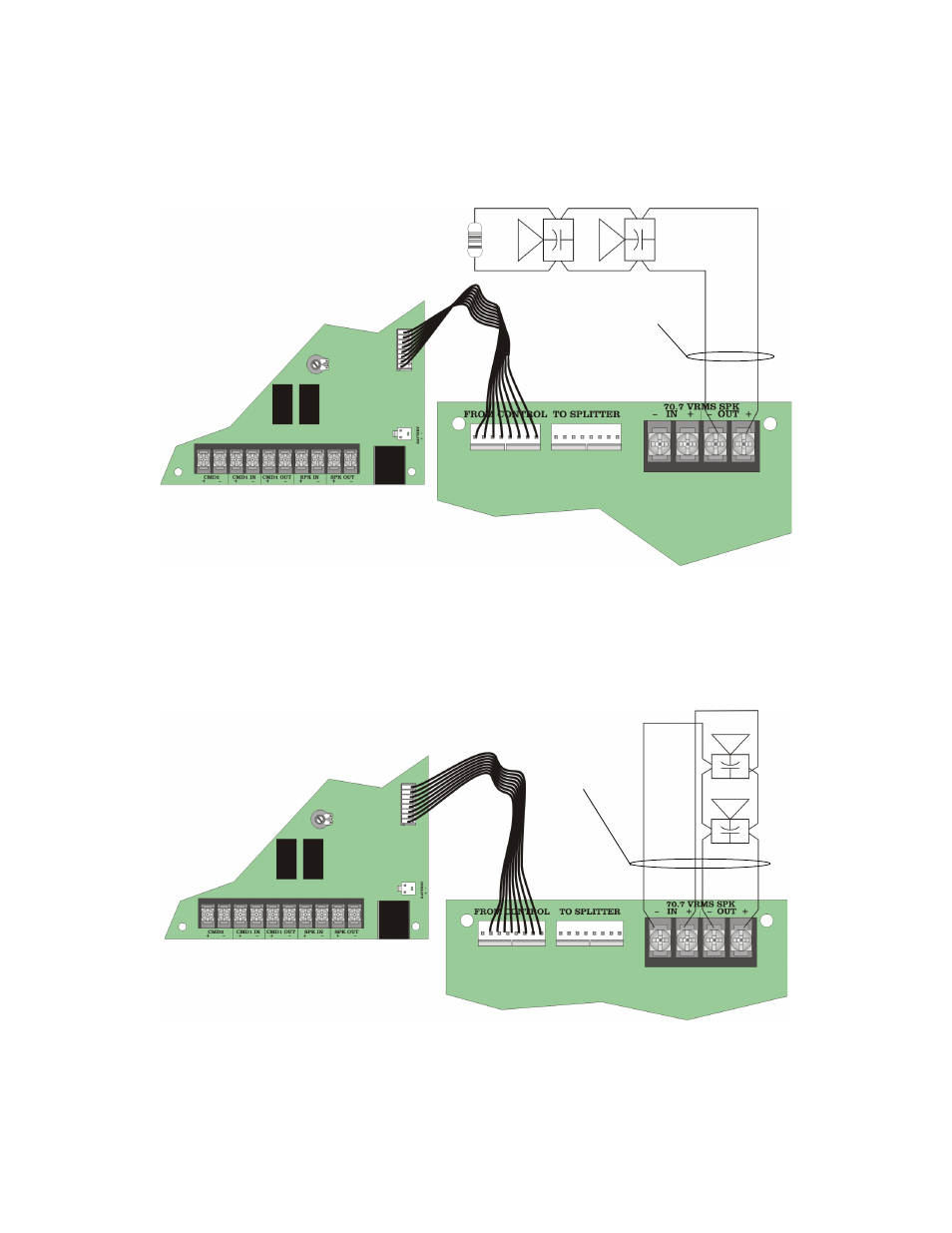

Figure 8-4 illustrates how to wire speakers to the SKE-V70 using Class B (Style Y)
supervision.
Figure 8-4 Class B (Style Y) Speaker Configuration
8.2.3
Class A (Style Z) Wiring to the SKE-V70
Figure 8-5 illustrates how to wire speakers to the SKE-V70 using Class A (Style Z) wiring.
Figure 8-5 Class A (Style Z) Speaker Configuration
Supervised
Power Limited
15 k
Ω EOL
UL Listed
Model 7630
SKE-V70
SKE-450
Supervised
Power Limited
SKE-V70
SKE-450
