5 general alarm control wiring -10, 5 general alarm control wiring – SilentKnight SKE-450 Voice Evacuation Control Panel User Manual
Page 54
SKE-Series Voice Evacuation System Installation/Operation Manual
6-10
151267
6.4.5
General Alarm Control Wiring
This section describes general alarm control wiring as shown in Figure 6-8.

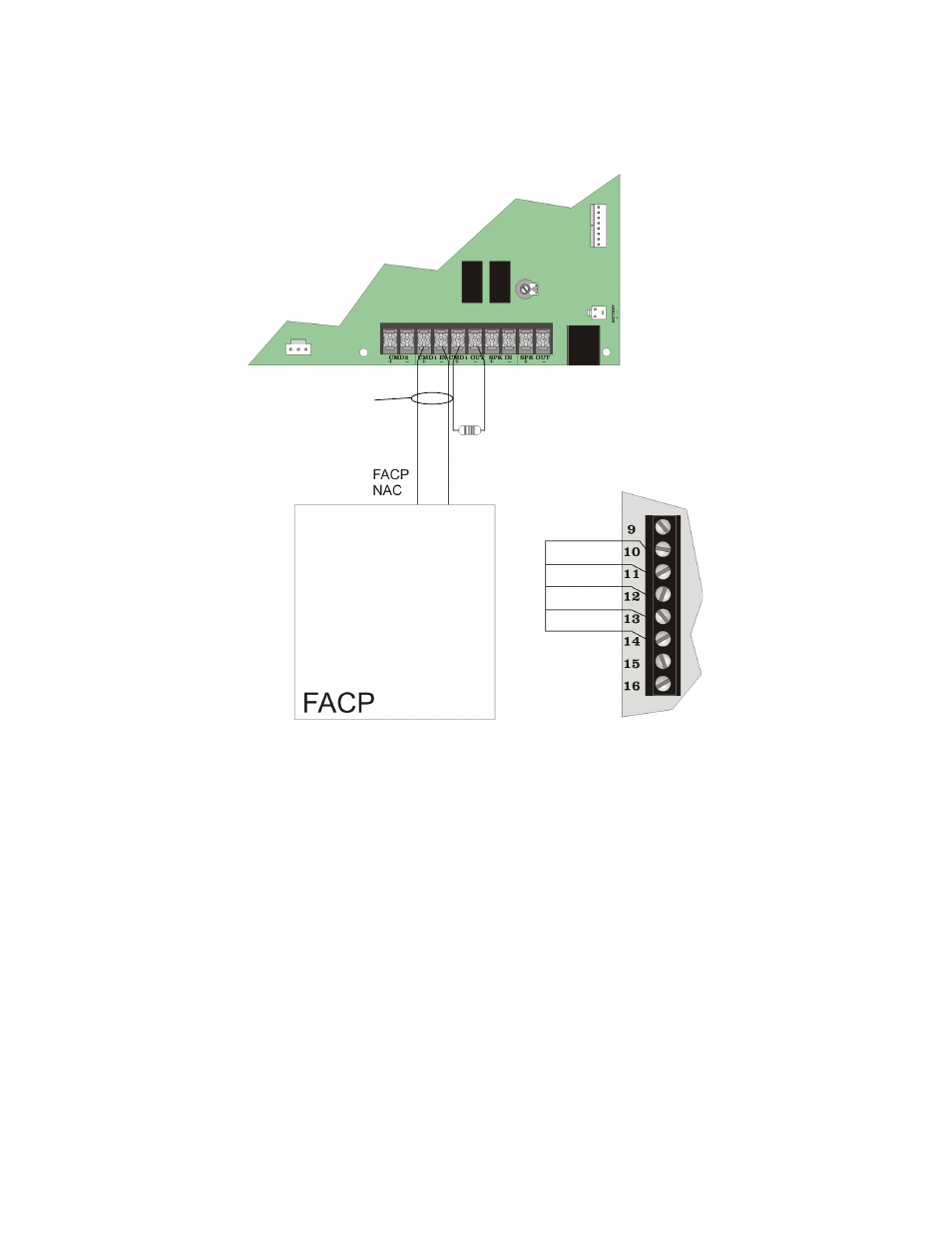

Figure 6-8 General Alarm Control Wiring
Supervised
Power Limited
4.7 k
Ω
UL Listed EOL
Model 7628
