SilentKnight SKE-450 Voice Evacuation Control Panel User Manual
Page 26
SKE-Series Voice Evacuation System Installation/Operation Manual
3-16
151267
4. Wire AC to the transformer as shown in Figure 3-14.

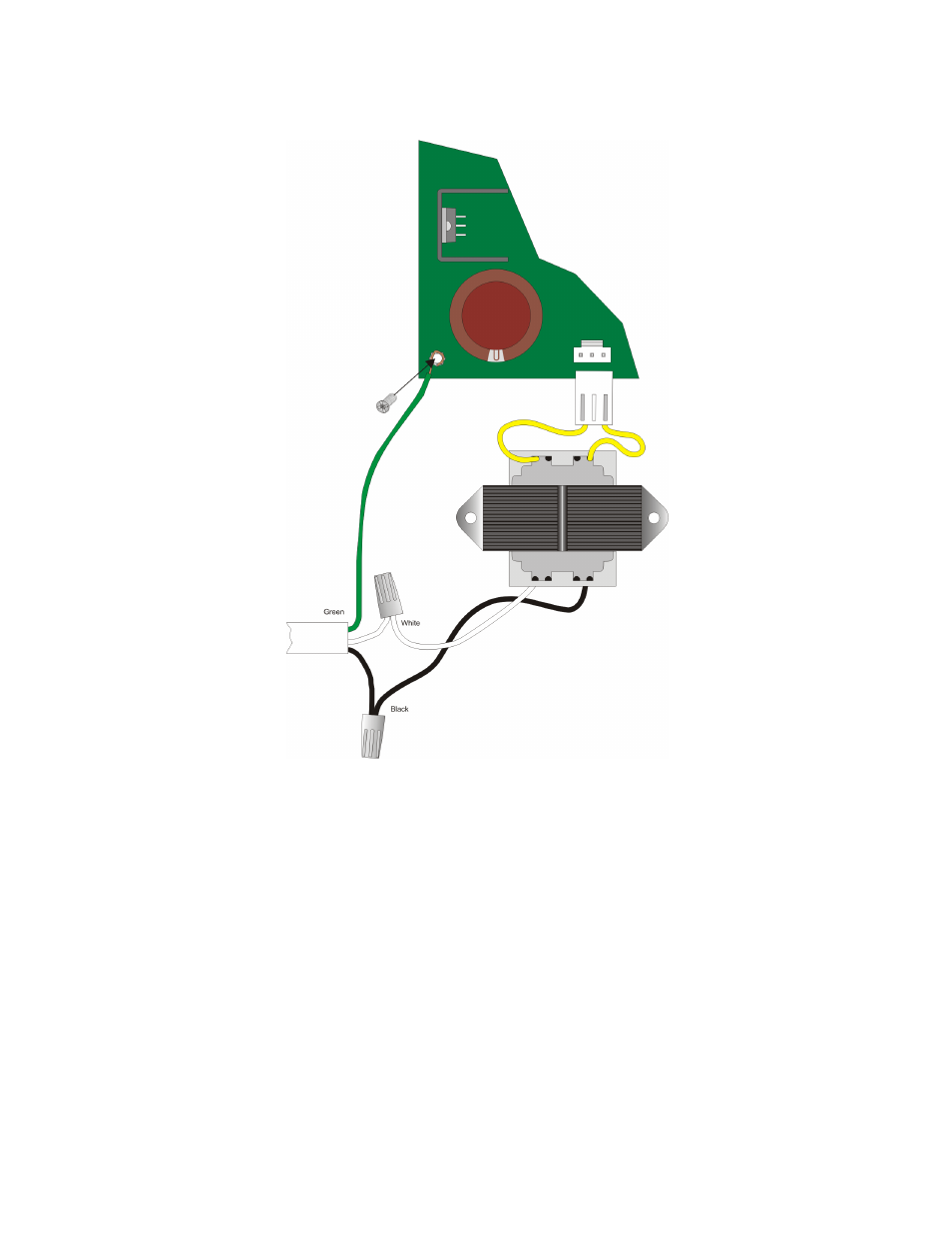

Figure 3-14 AC Connections
5. Plug the transformer output to the AC connector on the control panel as shown in Figure
